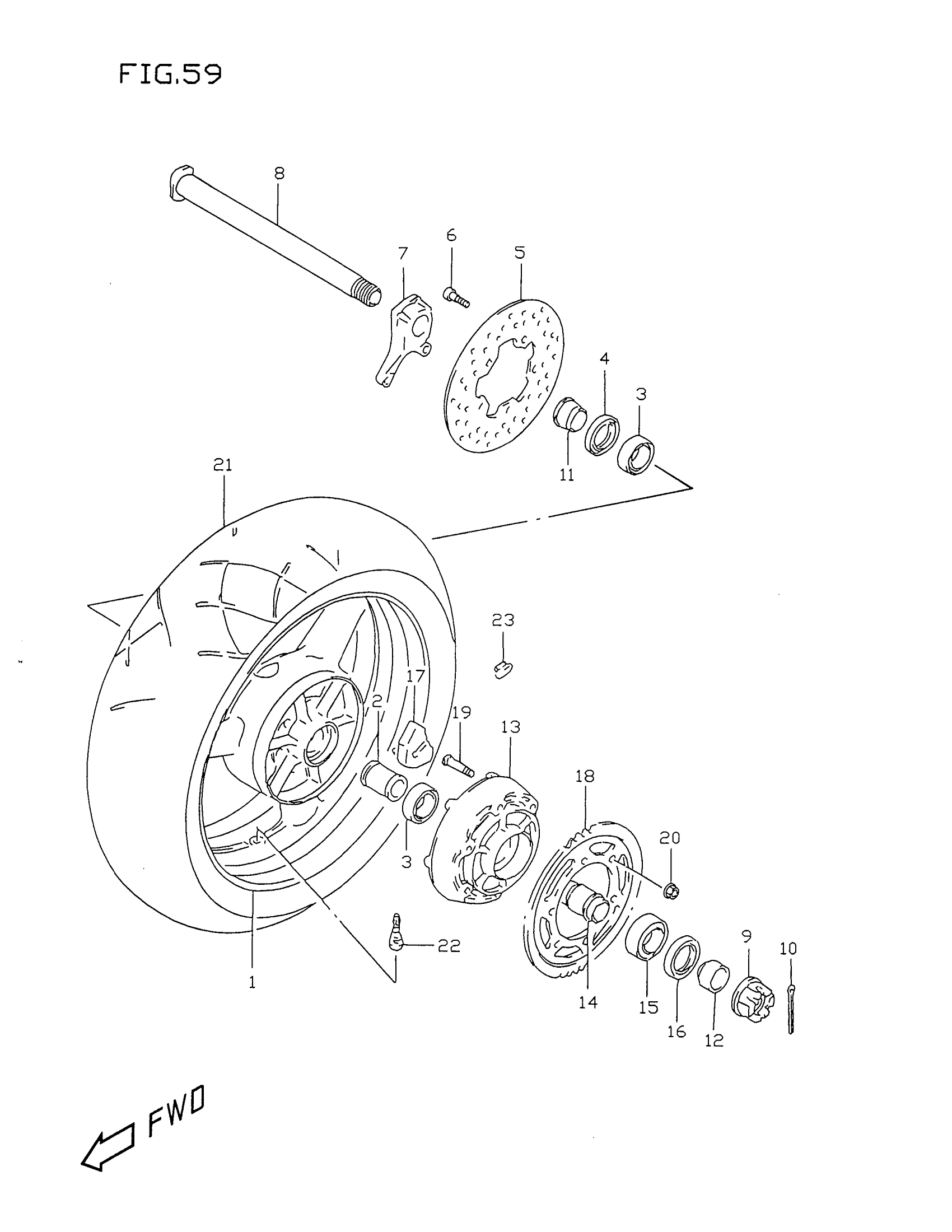

Suzuki GSX-R750X (1999) REAR WHEEL Diagram

#

Description
Price

1

WHEEL,RR,17M/CX | MODEL T FOR F1S,L99MODEL V/W FOR G7UMODEL X FOR M4L This part replaces 64111-33E00-12R.

64111-33E11-12R

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL V/W/X FOR L99 This part replaces 64111-33E00-28W.

64111-33E11-28W

Unavailable

2

SPACER, HUB BEARING | MODEL T/VMODEL W~F.NO.JS1GR7DA W2104829 This part replaces 64730-33E00.

64731-33E10

$67.25

2

SPACER, HUB BEARING | MODEL W F.NO.JS1GR7DA W2104830~MODEL X

64731-33E10

$67.25

3

BEARING,DRIVEN This part replaces 09262-32008.

09262-32023

$31.25

4

SEAL, RH (38X58X7)

09285-38001

$8.47

5

DISC, REAR BRAKE

69211-33E00

Unavailable

6

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

7

BRACKET, REAR CALIPER

69721-33E00

Unavailable

8

AXLE, REAR | MODEL T

64711-33E10

$156.75

8

AXLE, REAR | MODEL V/W/X

64711-33E30

Unavailable

9

NUT

09141-25001

$23.94

10

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

11

SPACER, AXLE RH

64741-33E00

$25.30

12

SPACER, AXLE LH

64751-33E00

$28.73

13

DRUM, REAR SPROCKET | MODEL T This part replaces 64611-33E00.

64611-33E02

Unavailable

13

DRUM, REAR SPROCKET | MODEL V/W This part replaces 64610-33E00.

64611-33E02

Unavailable

13

DRUM, REAR SPROCKET | MODEL X

64611-33E02

Unavailable

14

RETAINER, SPROCKET DRUM

64733-33E00

$32.86

15

BEARING (32X65X17) This part replaces 09262-32007.

09262-32024

$39.40

16

SEAL (39X65X7)

09285-39001

$10.62

17

ABSORBER, HUB SHOCK

64651-17E00

$15.63

18

SPROCKET, REAR (NT:43) | MODEL T/V

64511-33E00

Unavailable

18

SPROCKET, REAR (NT:44) | MODEL W/X

64511-33E10

$126.90

19

BOLT

09119-10059

$3.12

20

NUT

08319-31107

$2.73

21

TIRE, REAR | MODEL T/V

65110-33E10

Unavailable

21

TIRE, REAR | MODEL W/X

65110-33E50

Unavailable

22

VALVE ASSY, WHEEL RIM (TR412) | MODEL T/V/W This part replaces 43130-24A11.

43130-24A00

$8.85

22

VALVE ASSY, WHEEL RIM (TR412) | MODEL X

43130-24A00

$8.85

23

BALANCER (10G)

55411-00A00

$1.49

23

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05
