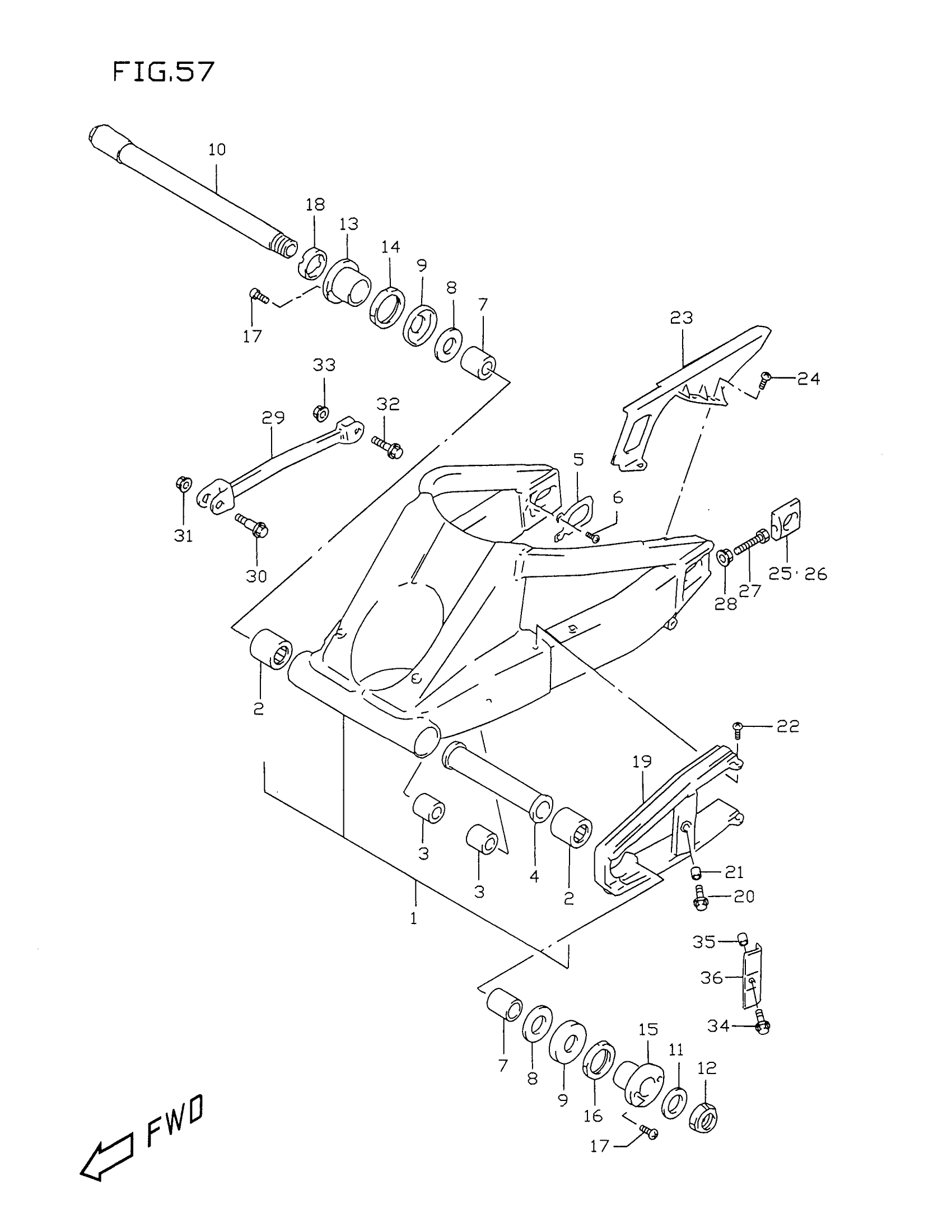

Suzuki GSX-R750X (1999) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | MODEL T/V This part replaces 61000-33E00.

61000-33E10

Unavailable

1

SWINGING ARM ASSY, REAR | MODEL W/X; Includes Item(s) 2 - 4

61000-33E10

Unavailable

2

BEARING, PIVOT (30X47X2)

09263-30040

$38.65

3

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

4

SPACER, CENTER | MODEL T/VMODEL W~F.NO.JS1GR7DA W2104829 This part replaces 61280-33E00.

61281-33E20

$56.48

4

SPACER, CENTER | MODEL W F.NO.JS1GR7DA W2104830~MODEL X This part replaces 61281-33E10.

61281-33E20

$56.48

5

PLATE, BRACKET

61124-33E00

$6.85

6

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

7

SPACER,RR SWGARM PIVOT BEARIN This part replaces 61251-17E10.

61251-17E20

$13.12

8

WASHER, THRUST

08211-25481

$5.64

9

SEAL,DUST This part replaces 61262-17E10.

61262-17E11

$9.05

10

SHAFT, PIVOT

61211-33E00

Unavailable

11

WASHER

09160-25070

$4.77

12

NUT This part replaces 09159-25001.

09159-25003

$31.85

13

BOSS, PIVOT RH

61212-33E00

Unavailable

14

NUT, PIVOT RH

61213-33E00

Unavailable

15

BOSS, PIVOT LH

61214-33E00

Unavailable

16

NUT, PIVOT LH

61215-33E00

Unavailable

17

SCREW This part replaces 02122-05123.

02122-0512A

$1.86

18

NUT, PIVOT BOLT This part replaces 61214-40C30.

61214-40C31

$56.90

19

BUFFER CHAIN TOUCH DEFENSE | MODEL T/V->61273-33E01W/01550-0620309180-0631061279-33E00 This part replaces 61273-33E00.

61273-33E01

Unavailable

19

BUFFER CHAIN TOUCH DEFENSE | MODEL W/X

61273-33E01

Unavailable

20

BOLT | MODEL T/V This part replaces 09116-06111.

09116-06152

$2.36

21

SPACER (6.5X10X8) | MODEL T/V

09180-06284

$3.03

22

SCREW,6X14 | MODEL T/V/W This part replaces 09139-06081.

09122-66007

$3.15

22

SCREW,6X14 | MODEL X This part replaces 09122-66004.

09122-66007

$3.15

23

CASE, CHAIN This part replaces 61311-33E00.

61311-33E01

$93.87

24

SCREW (6X16)

09139-06083

$2.26

25

WASHER, CHAIN ADJUSTER RH

61445-33E00

$53.73

26

ADJUSTER CHAIN, | MODEL T This part replaces 61446-33E00.

61446-33EV0

Unavailable

26

WASHER, CHAIN ADJUSTER LH | MODEL V/W/X

61446-33E10

$53.98

27

BOLT (8X50)

09100-08287

$3.10

28

NUT This part replaces 08316-10083.

08316-1008B

$2.66

29

TORQUE LINK, REAR

64310-33E00

Unavailable

30

BOLT, FRONT (8X44) | MODEL T

09111-08058

Unavailable

30

BOLT, FRONT (8X44) | MODEL V/W/X

09111-08083

Unavailable

31

NUT

08319-31087

$2.32

32

BOLT, REAR (10X37)

09103-10019

$2.63

33

NUT

08319-31107

$2.73

34

BOLT | MODEL W/X This part replaces 01550-06203.

01550-0620A

$1.97

35

SPACER (6.5X10X10) | MODEL W/X

09180-06310

$1.91

36

PLATE, CHAIN BUFFER | MODEL W/X

61279-33E00

Unavailable
