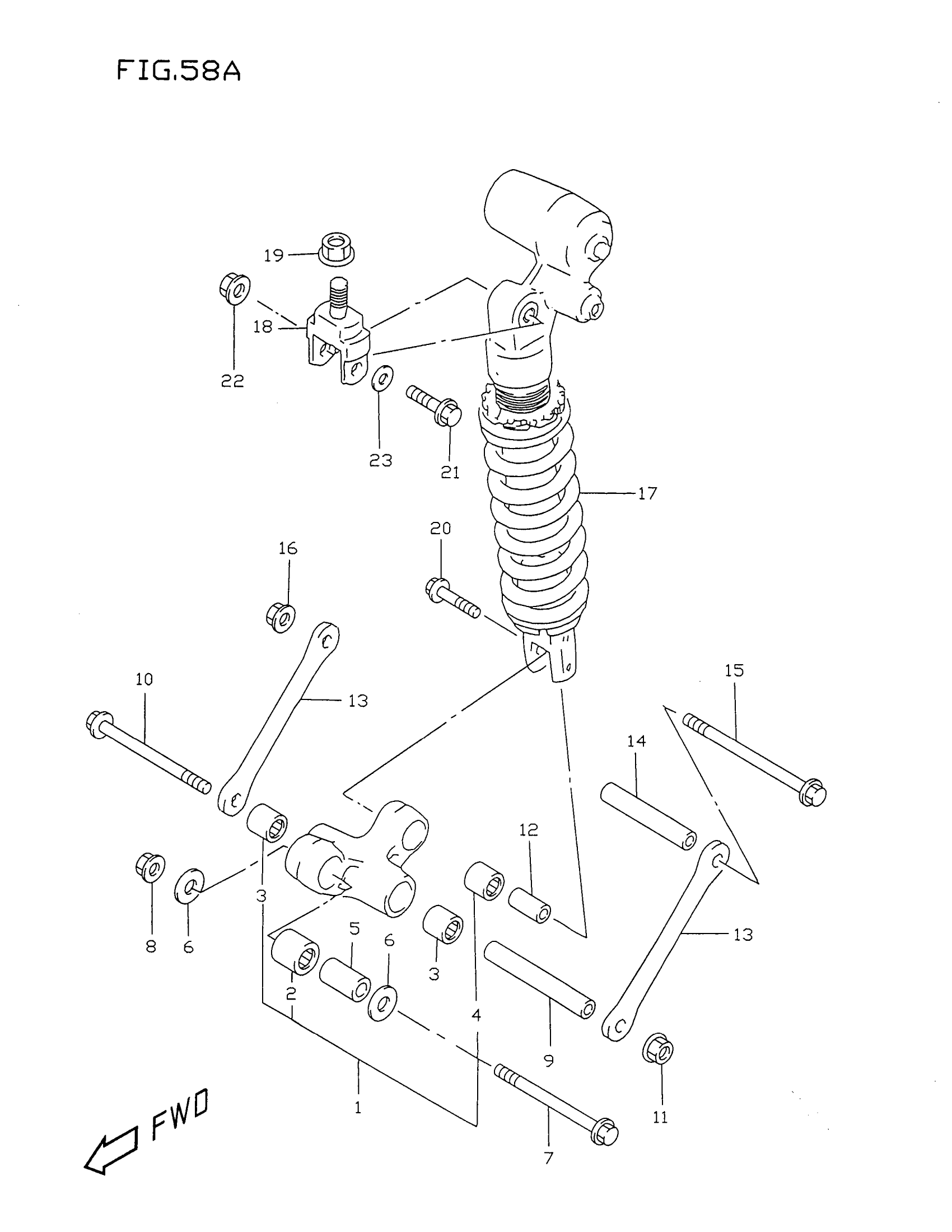

Suzuki GSX-R750X (1999) REAR CUSHION LEVER (MODEL V) Diagram

#

Description
Price

1

LEVER SET,RR CUSHION | Includes Item(s) 2 - 4 This part replaces 62600-33880.

62600-33892

$321.82

2

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

$17.82

3

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

SPACER,RR CUSHION LEVER FR (1

62684-12C00

$15.61

6

WASHER

08211-12301

$2.03

7

BOLT, FRONT

62658-33E00

Unavailable

8

NUT This part replaces 08319-31128.

08319-3112A

$3.76

9

SPACER, CENTER

62626-33D00

$21.19

10

BOLT, CENTER

62621-33D00

$28.62

11

NUT This part replaces 08319-31128.

08319-3112A

$3.76

12

SPACER, REAR

62684-40A10

$12.15

13

ROD, REAR CUSHION LEVER

62641-33E00

Unavailable

14

SPACER, ROD

62626-33D00

$21.19

15

BOLT, ROD

62621-33D00

$28.62

16

NUT This part replaces 08319-31128.

08319-3112A

$3.76

17

ABSORBER ASSY, REAR SHOCK

62100-33E00

Unavailable

18

BRACKET, ABSORBER | ~F.NO.101106->62993-33E11 This part replaces 62993-33E10.

62993-33E11

Unavailable

18

BRACKET, ABSORBER | F.NO.101107~

62993-33E11

Unavailable

19

NUT

09159-20006

$27.12

20

BOLT, LOWER (10X44)

09103-10049

$7.63

21

BOLT (10X57) | ~F.NO.101106 This part replaces 09103-10249.

09103-10255

$7.78

21

BOLT, UPPER (10X54) | F.NO.101107~

09103-10101

$4.00

22

NUT | F.NO.101107~

08319-31107

$2.73

23

WASHER, REAR | ~F.NO.101106 This part replaces 09160-10085.

09160-10142

$2.34

24

REFER TO FIG.58B(L-6) FOR

SPECIAL NOTE

Unavailable
