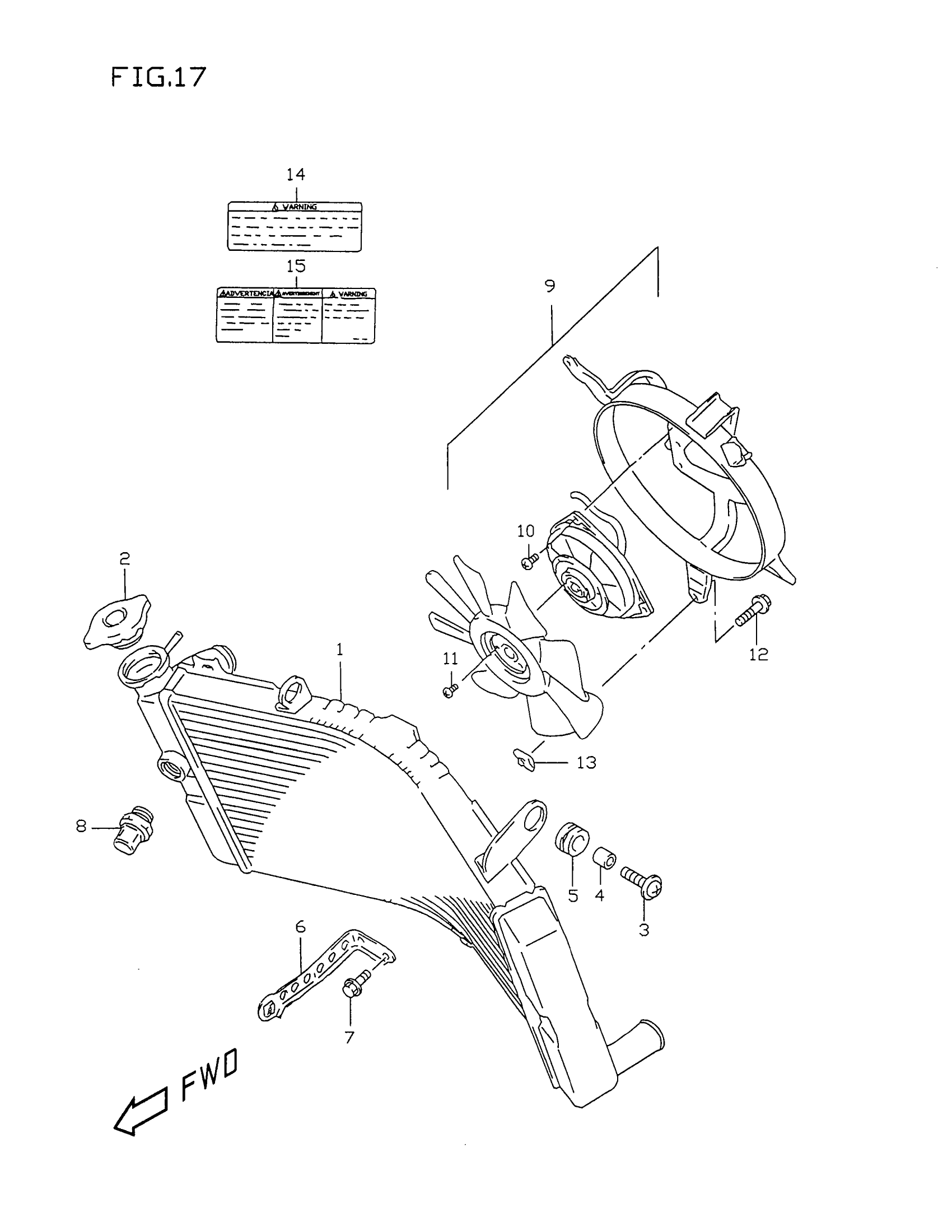

Suzuki GSX-R750X (1999) RADIATOR (MODEL T/V) Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-33E00

Unavailable

2

CAP, RADIATOR This part replaces 17730-12C01.

17730-08J00

$42.50

3

BOLT (6X20) | MODEL T

09116-06167

$2.19

3

BOLT (6X20) | MODEL V This part replaces 09116-06143.

09116-06115

$1.97

4

SPACER | MODEL T This part replaces 09180-06213.

09180-06290

$2.35

4

SPACER | MODEL V

09180-06290

$2.35

5

CUSHION

09320-10042

$3.12

6

BRACKET, RADIATOR LOWER

17750-33E00

Unavailable

7

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

8

SWITCH,RDTR FAN This part replaces 17680-33E00.

17680-33E01

$48.44

9

NO DESCRIPTION AVAILABLE | Includes Item(s) 10 - 11 This part replaces 17800-33E00.

17800-33E10

Unavailable

10

SCREW This part replaces 02142-05083.

02142-0508A

$1.49

11

SCREW This part replaces 02112-04063.

02112-0406B

$1.55

12

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

13

NUT, FAN ASSY This part replaces 17762-39A00.

09148-06015

$3.04

14

LABEL, COOLING FAN

17991-60B11

Unavailable

15

LABEL,ENG COOLN | E28 This part replaces 17991-60B02.

11958-65G11

Unavailable

16

REFER TO FIG.17A(E-6) FOR

SPECIAL NOTE

Unavailable
