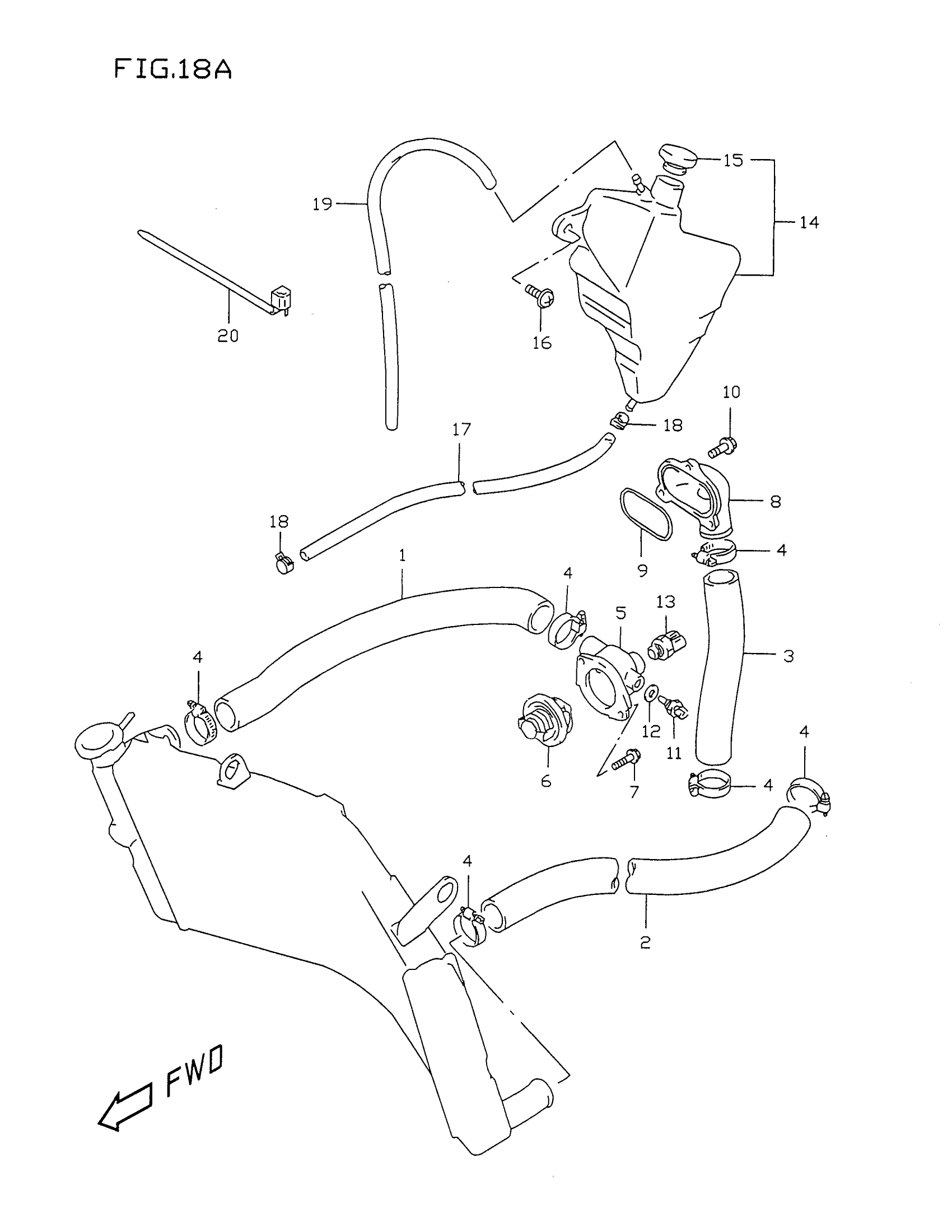

Suzuki GSX-R750X (1999) RADIATOR HOSE (MODEL W/X) Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-33E00

Unavailable

2

HOSE, RADIATOR OUTLET

17852-33E00

Unavailable

3

HOSE, CYLINDER INLET

17853-33E00

Unavailable

4

CLAMP

09402-38511

$11.67

5

CONNECTOR, THERMOSTAT INLET

17662-33E10

Unavailable

6

THERMOSTAT,WATE This part replaces 17670-32C10.

17670-32C11

$46.60

7

BOLT, FRONT This part replaces 07120-06203.

07120-0620B

$3.04

8

CONNECTOR This part replaces 17861-33E00.

17861-33E20

$22.56

9

O RING

17863-33E00

$4.03

10

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

11

SENSOR, WATER TEMP

13650-51G10

$106.62

12

GASKET

09168-12016

$2.17

13

SWITCH,RDTR FAN This part replaces 17680-33E00.

17680-33E01

$48.44

14

TANK ASSY, RESERVOIR | Includes Item(s) 15

17910-33E00

Unavailable

15

CAP

17932-12C00

$4.48

16

SCREW (6X20)

09136-06022

$2.21

17

HOSE SET,RSVR I This part replaces 17981-12C00.

17900-41810

$29.65

18

CLIP

09401-08411

$1.78

19

HOSE, OVER FLOW

17982-38810

$17.37

20

CLAMP

09407-18402

$2.19
