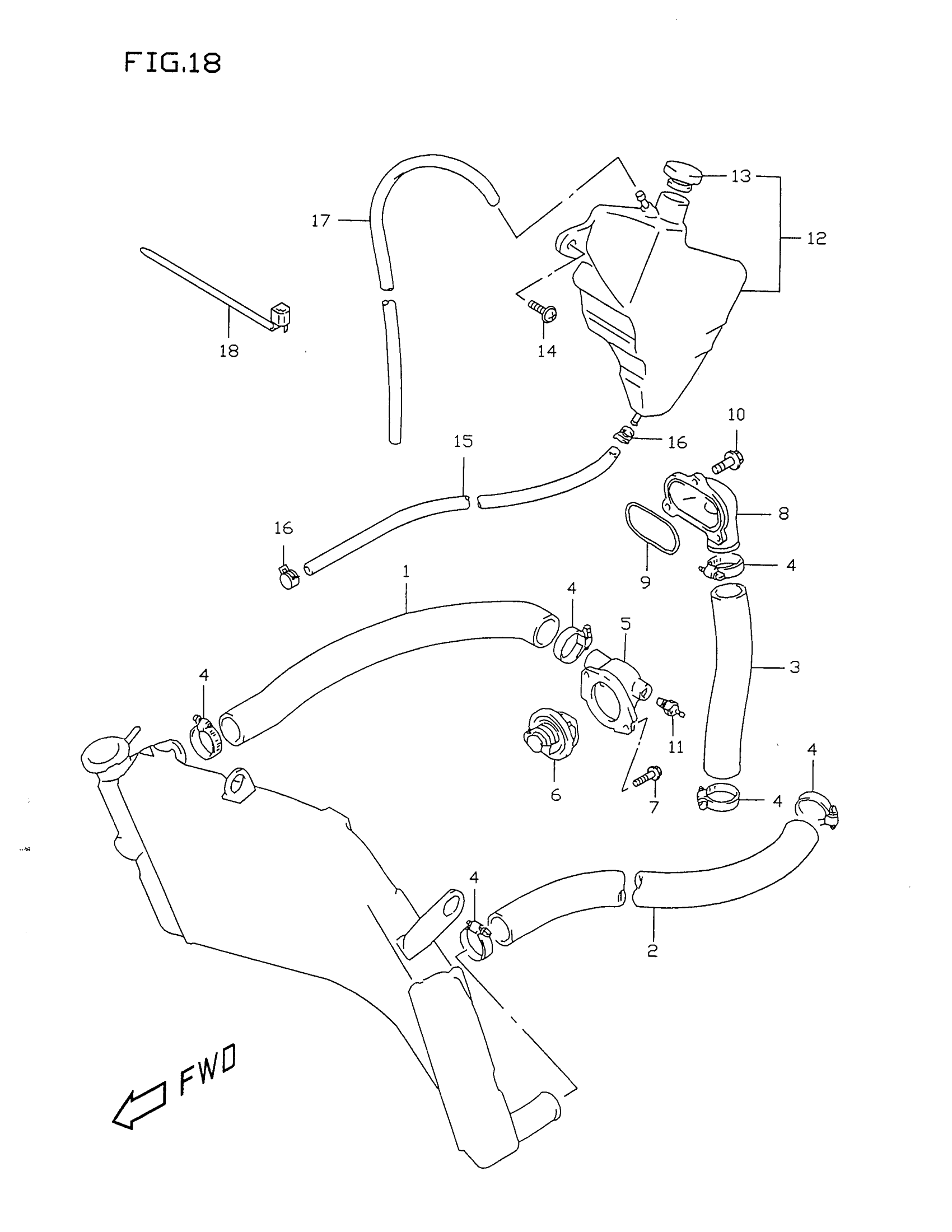

Suzuki GSX-R750X (1999) RADIATOR HOSE (MODEL T/V) Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-33E00

Unavailable

2

HOSE, RADIATOR OUTLET

17852-33E00

Unavailable

3

HOSE, CYLINDER INLET

17853-33E00

Unavailable

4

CLAMP

09402-38511

$11.67

5

CONNECTOR, THERMOSTAT INLET

17662-33E00

Unavailable

6

THERMOSTAT,WATE This part replaces 17670-32C01.

17670-32C02

$36.31

7

BOLT, FRONT This part replaces 07120-06203.

07120-0620B

$3.04

8

CONNECTOR This part replaces 17861-33E00.

17861-33E20

$22.56

9

O RING

17863-33E00

$4.03

10

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

11

GAUGE ASSY, WATER TEMP

34850-33E00

Unavailable

12

TANK ASSY, RESERVOIR | Includes Item(s) 13

17910-33E00

Unavailable

13

CAP

17932-12C00

$4.48

14

SCREW (6X20)

09136-06022

$2.21

15

HOSE SET,RSVR I This part replaces 17981-12C00.

17900-41810

$29.65

16

CLIP

09401-08411

$1.78

17

HOSE, OUTLET | MODEL T This part replaces 17982-38A03.

17982-38810

$17.37

17

HOSE, OVER FLOW | MODEL V

17982-38810

$17.37

18

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

19

REFER TO FIG.18A(E-8) FOR

SPECIAL NOTE

Unavailable
