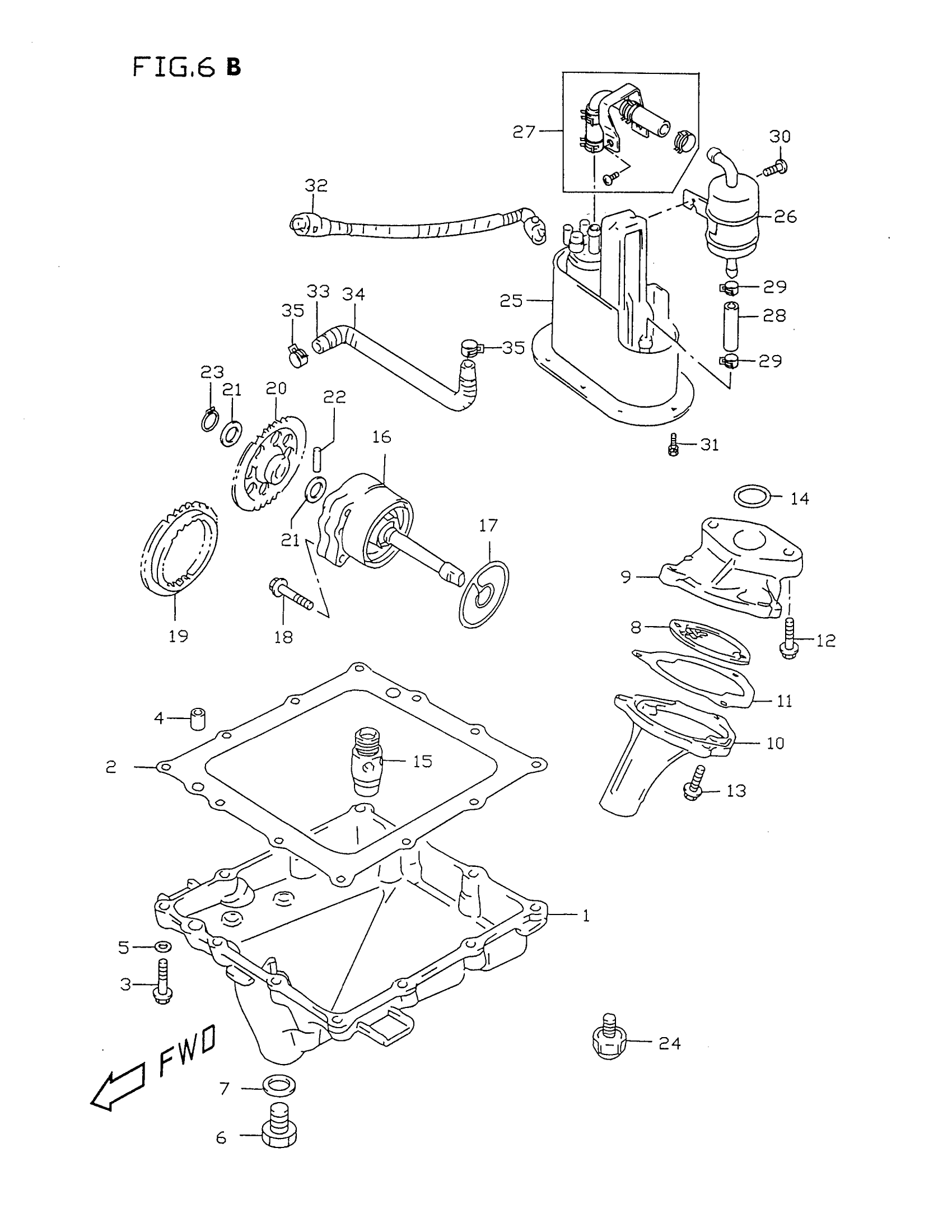

Suzuki GSX-R750X (1999) OIL PAN - OIL PUMP - FUEL PUMP (MODEL X) Diagram

#

Description
Price

1

PAN, OIL

11511-33E00

Unavailable

2

GASKET, OIL PAN

11489-33E00

$21.13

3

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

4

PIN

04211-09189

$1.65

5

GASKET

09168-06024

$2.20

6

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

7

GASKET

09168-14002

$2.26

8

STRAINER, ENGINE OIL

16520-37400

$8.12

9

PROTECTOR

16525-33E00

Unavailable

10

COVER, STRAINER

16526-33E00

Unavailable

11

GASKET

16527-33E00

Unavailable

12

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

13

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

14

O RING (D:2.62,ID:20.3)

09280-19008

$5.50

15

VALVE ASSY, OIL RELIEF

16440-33E00

Unavailable

16

PUMP ASSY, ENGINE OIL

16400-33E00

Unavailable

17

O-RING

16491-33E00

$6.70

18

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

19

GEAR,OIL PUMP DRIVE (NT:34)

16321-33E10

$68.12

20

GEAR,OIL PUMP DRIVEN (NT:37)

16331-33E00

$74.65

21

WASHER

09181-12158

$2.26

22

PIN

09261-05006

$1.49

23

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

24

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D00.

37820-33D11

$25.13

25

PUMP, ASSY FUEL | Includes Item(s) 26 - 30 This part replaces 15100-33E50.

15100-33E60

Unavailable

26

FILTER, FUEL

15410-02FA0

$64.59

27

HOSE SET

15310-33E50

Unavailable

28

HOSE (7.6X14X600) | L:600->45

09356-76145-600

$37.45

29

CLIP This part replaces 09401-13410.

09401-12414

$3.26

30

SCREW This part replaces 02112-34083.

02112-3408A

$2.38

31

BOLT This part replaces 15211-02F00..

09103-05017

$2.86

32

HOSE, FUEL

15810-33E00

Unavailable

33

HOSE, FUEL RETURN | L:600->360

09355-54115-600

$14.59

34

NO DESCRIPTION AVAILABLE This part replaces 09440-13040.

09440-13040-XC0

Unavailable

35

CLIP

09401-11411

$4.68
