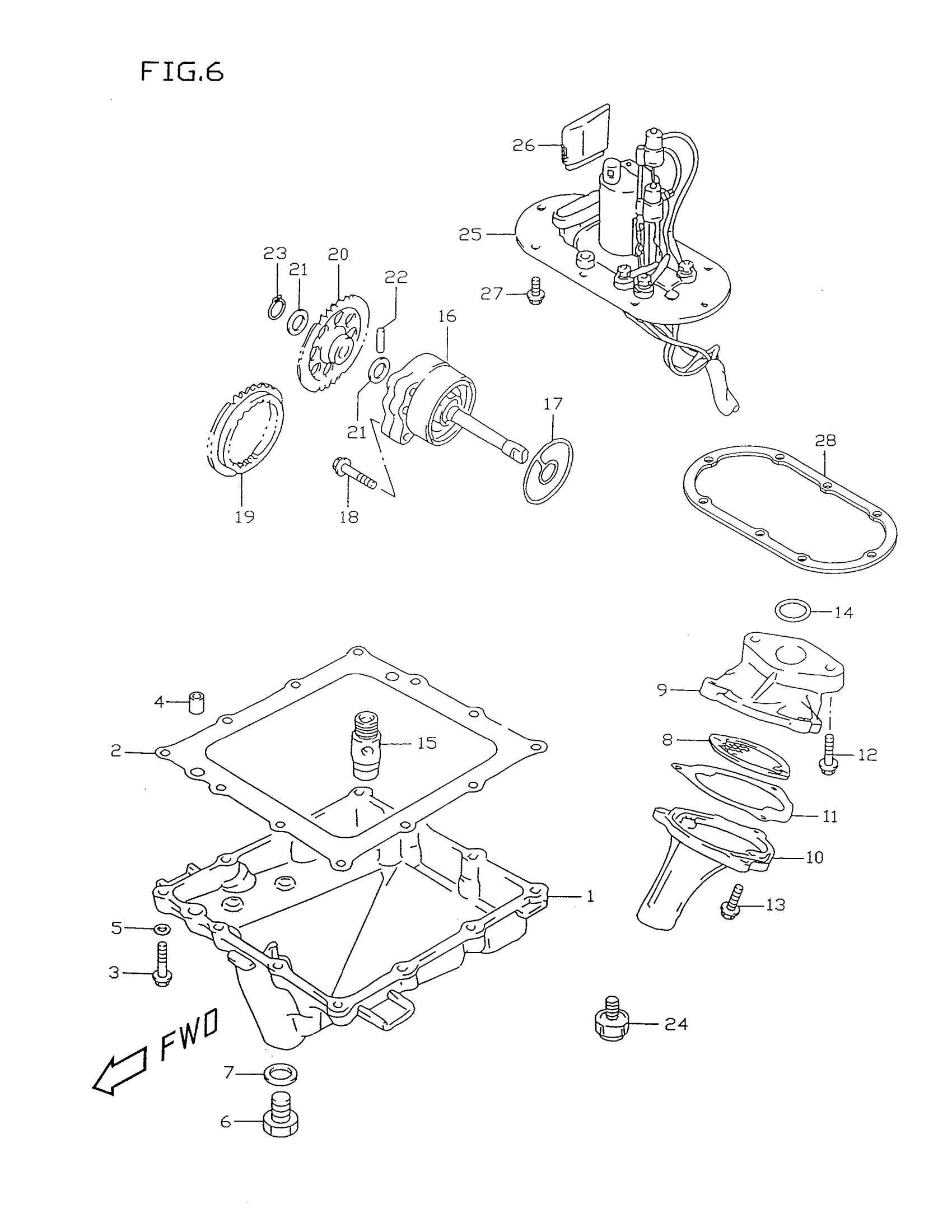

Suzuki GSX-R750X (1999) OIL PAN - OIL PUMP - FUEL PUMP (MODEL T/V) Diagram

#

Description
Price

1

PAN, OIL

11511-33E00

Unavailable

2

GASKET, OIL PAN

11489-33E00

$23.87

3

BOLT This part replaces 01550-06303.

01550-0630A

$2.31

4

PIN

04211-09189

$1.64

5

GASKET

09168-06024

$2.19

6

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$4.73

7

GASKET

09168-14002

$2.83

8

STRAINER, ENGINE OIL

16520-37400

$9.17

9

PROTECTOR

16525-33E00

Unavailable

10

COVER, STRAINER

16526-33E00

Unavailable

11

GASKET

16527-33E00

Unavailable

12

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

13

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

14

O RING (D:2.62,ID:20.3)

09280-19008

$4.97

15

VALVE ASSY, OIL RELIEF

16440-33E00

Unavailable

16

PUMP ASSY, ENGINE OIL

16400-33E00

Unavailable

17

O-RING

16491-33E00

$7.57

18

BOLT This part replaces 01550-06303.

01550-0630A

$2.31

19

GEAR,OIL PUMP DRIVE (NT:34) This part replaces 16321-33E00.

16321-33E10

$76.88

20

GEAR, OIL PUMP DRIVEN (NT:37)

16332-19C00

$83.30

21

WASHER

08221-12205

$2.50

22

PIN

09261-05006

$1.46

23

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.77

24

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D00.

37820-33D11

$27.58

25

PUMP ASSY, FUEL | Includes Item(s) 26 This part replaces 15100-33E00.

15100-34E00

Unavailable

26

STRAINER, FUEL PUMP This part replaces 15170-33E00.

15170-34E00

Unavailable

27

BOLT This part replaces 01570-05103.

01570-0510B

$2.55

28

REFER TO FIG.6A (C-3) FOR

SPECIAL NOTE

Unavailable
