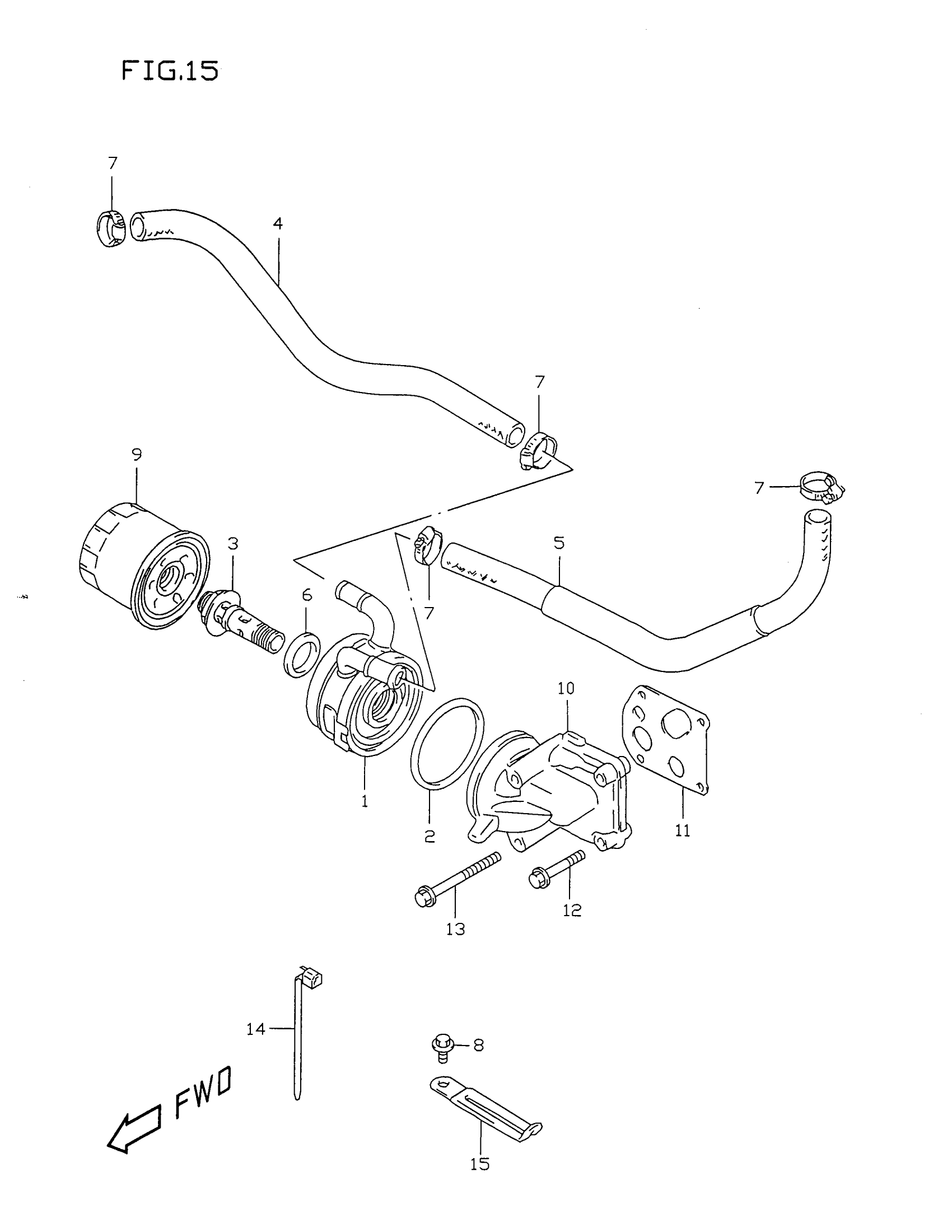

Suzuki GSX-R750X (1999) OIL COOLER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL T/V/W This part replaces 16600-33E00.

16600-33800

Unavailable

1

COOLER ASSY, OIL | MODEL X

16600-33E10

Unavailable

2

O RING (D:3.1,ID:63.9)

09280-64003

$5.64

3

BOLT, UNION | MODEL T/V/W

16591-33C00

Unavailable

3

BOLT,OIL COOLER UNION | MODEL X

16591-02F00

$50.10

4

HOSE, OIL COOLER, WATER IN

16471-33E00

Unavailable

5

HOSE, OIL COOLER, WATER OUT

16461-33E00

Unavailable

6

WASHER | MODEL T/V/W

08221-22355

Unavailable

6

WASHER (25X34X0.7) | MODEL X

09181-25160

$2.93

7

CLAMP

09402-22511

$7.05

8

BOLT (6X12) | MODEL T/V E3,E28 This part replaces 09103-06083.

09103-06285

$1.97

9

FILTER, ENGINE OIL | MODEL T/V This part replaces 16510-06B01.

16510-07J00

$13.10

9

FILTER, ENGINE OIL | MODEL W/X This part replaces 16510-34E00.

16510-07J00

$13.10

10

HOLDER, OIL FILTER | MODEL T/V This part replaces 16515-33E00.

16515-34E00

Unavailable

10

HOLDER, OIL FILTER | MODEL W/X

16515-34E00

Unavailable

11

GASKET

16516-33E00

Unavailable

12

BOLT

09103-06194

Unavailable

13

BOLT

09103-06195

$4.00

14

CLAMP (L:235)

09407-25401

$4.66

15

CLAMP(L:80) | MODEL T/V E3,E28 This part replaces 09404-06433.

09404-06036

$1.74
