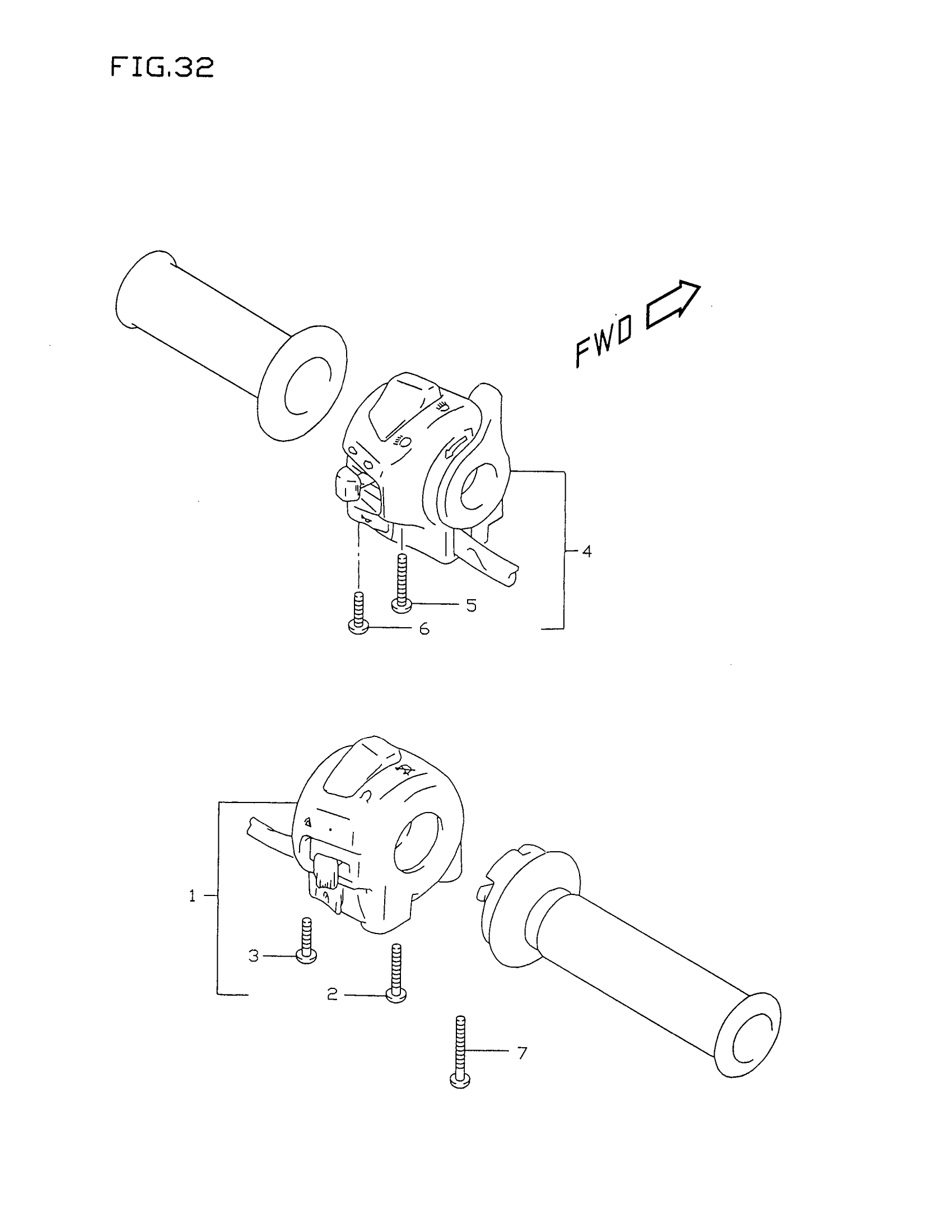

Suzuki GSX-R750X (1999) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | MODEL T This part replaces 37200-27E30.

37200-27E31

$166.27

1

SWITCH ASSY, HANDLE RH | MODEL V

37200-27E31

$166.27

1

SWITCH ASSY, HANDLE RH | MODEL W/X; Includes Item(s) 2 - 3

37200-33E31

Unavailable

2

SCREW This part replaces 02112-05505.

02112-0550B

$2.39

3

.SCREW This part replaces 02112-05305.

02112-0530B

$1.49

4

SWITCH ASSY, HANDLE LH | ~F.NO.101288->37400-33E31 USED WITH58410-33E01 This part replaces 37400-33E30.

37400-33E31

Unavailable

4

SWITCH ASSY, HANDLE LH | F.NO.101289~; Includes Item(s) 5 - 6

37400-33E31

Unavailable

5

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

6

.SCREW (5X25) This part replaces 02112-05255.

09125-05066

$1.65

7

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.49
