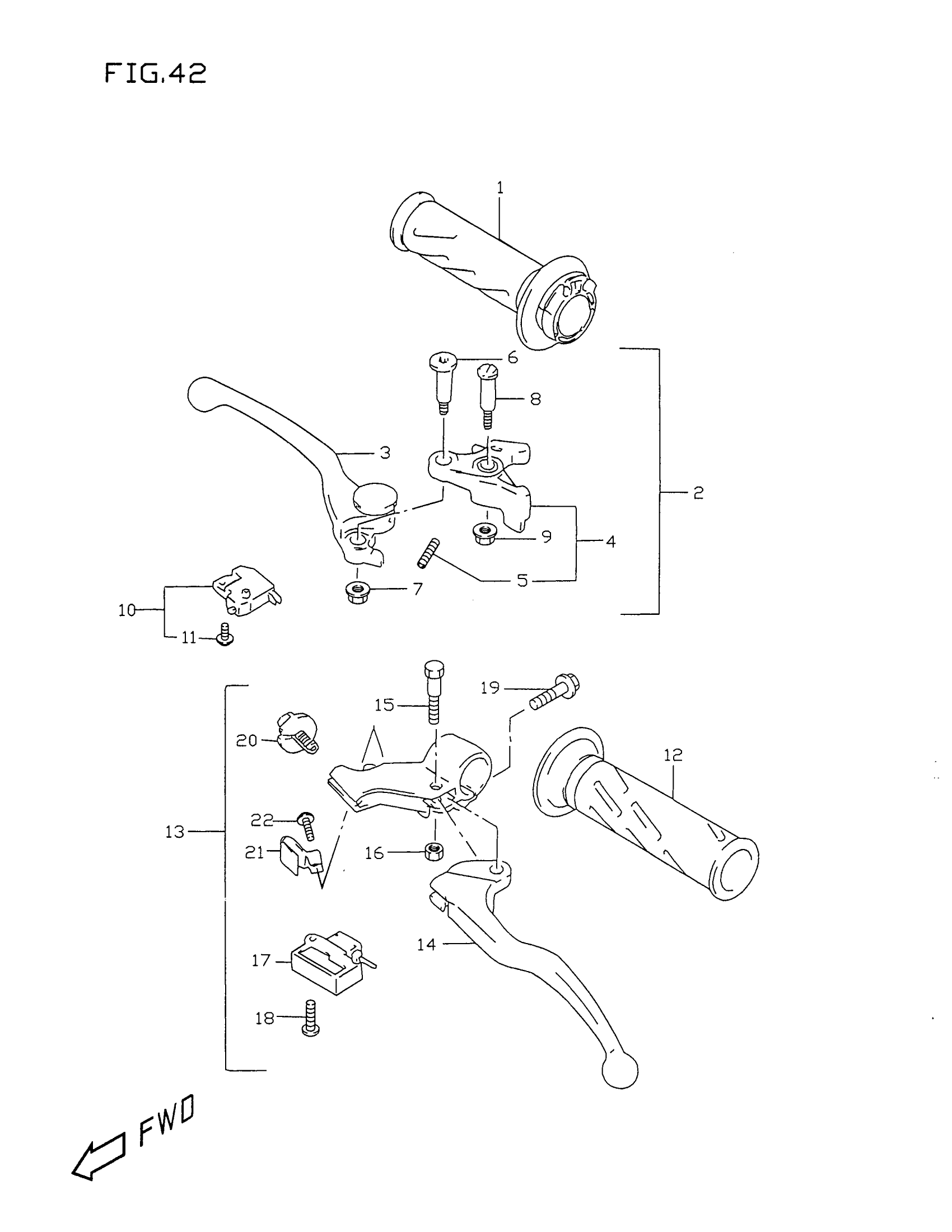

Suzuki GSX-R750X (1999) HANDLE LEVER (MODEL T/V) Diagram

#

Description
Price

1

GRIP,THROTTLE This part replaces 57110-46E01.

57110-46E02

$29.06

2

LEVER ASSY, BRAKE | Includes Item(s) 3 - 9

57300-32C10

$78.02

3

LEVER, ADJUST

57420-32C00

$28.92

4

KNOCKER

57430-32C10

$60.37

5

SPRING

57438-32C00

$5.67

6

BOLT

57437-32C01

$8.60

7

NUT This part replaces 08319-31063.

08319-3106A

$2.03

8

BOLT, LEVER

57431-17C00

$7.11

9

NUT This part replaces 08316-10063.

08316-1006B

$2.50

10

SWITCH ASSY,FR BRAKE | Includes Item(s) 11 This part replaces 57460-17C00.

57460-14J02

$38.46

11

SCREW

57465-17C00

$2.19

12

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$14.55

13

LEVER ASSY,CLUT | Includes Item(s) 14 - 22 This part replaces 57500-33E10.

57500-40F11

$51.48

14

LEVER ASSY, CLUTCH This part replaces 57621-33E00.

57621-40F00

$18.77

15

..BOLT,LEVER PIVOT This part replaces 57431-45C00.

57431-21D11

$9.76

16

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

17

.SWITCH,CLUTCH

57560-05A00

$12.15

18

SCREW This part replaces 02122-03208.

02122-0320A

$2.14

19

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

20

NUT, CABLE ADJUSTER

57641-33E00

Unavailable

21

SPRING

57644-33E00

$9.07

22

SCREW, SPRING

57642-33E00

$4.02

23

REFER TO FIG.42A(I-10) FOR

SPECIAL NOTE

Unavailable
