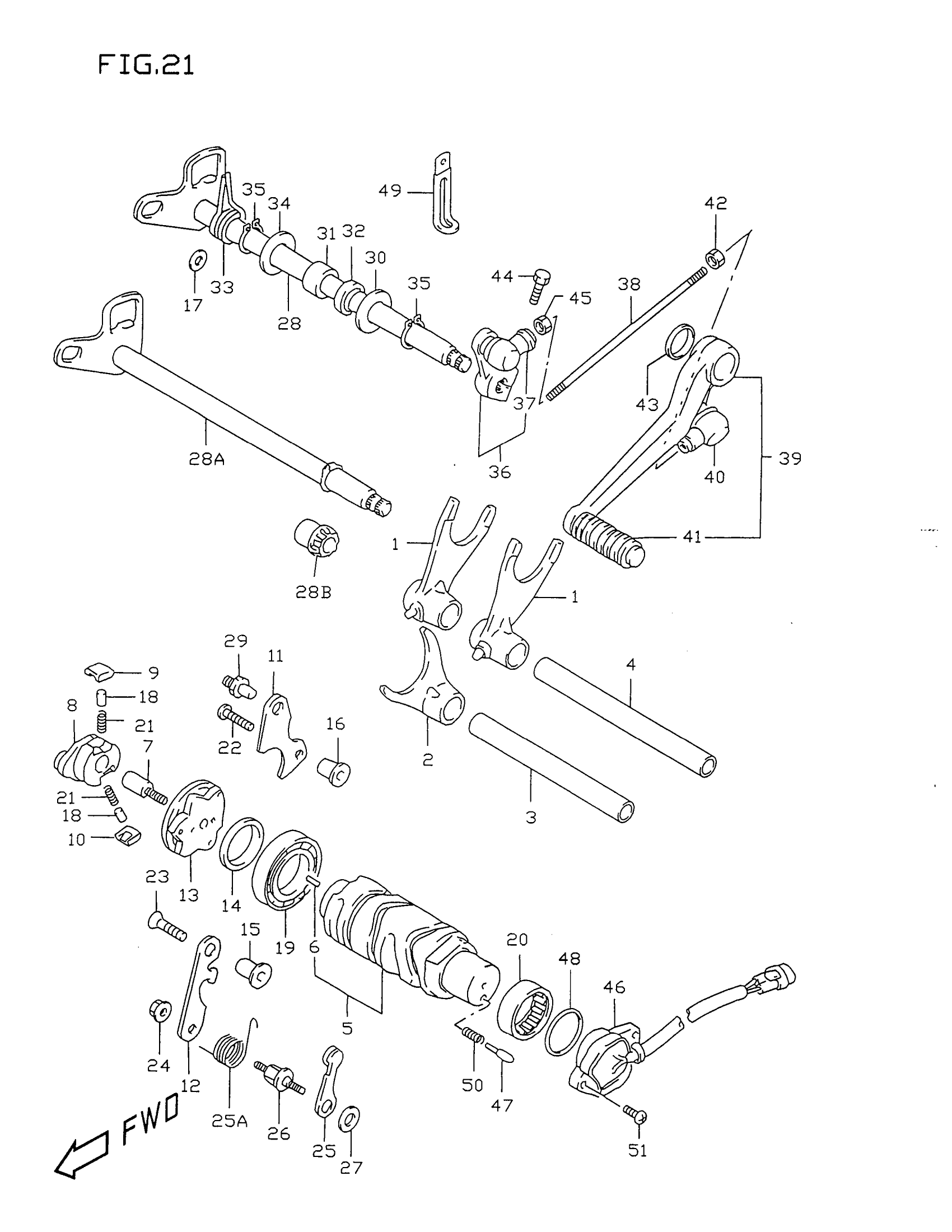

Suzuki GSX-R750X (1999) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT | MODEL T/V/W This part replaces 25211-17E00.

25211-17E02

$72.60

1

FORK, GEAR SHIFT | MODEL X This part replaces 25211-17E01.

25211-17E02

$72.60

2

FORK, GEAR SHIFT NO.3 | MODEL T/V/W This part replaces 25231-17E00.

25231-35F00

$105.82

2

FORK, GEAR SHIFT NO.3 | MODEL X This part replaces 25231-17E02.

25231-35F00

$105.82

3

SHAFT,GEAR SHIFT FORK (L:110)

25411-26D01

$25.68

4

SHAFT, GEAR SHIFT FORK,NO.1

25411-27A00

$29.25

5

CAM, GEAR SHIFT | MODEL T/V This part replaces 25310-17E01.

25310-17E02

Unavailable

5

CAM, GEAR SHIFT | MODEL W/X; Includes Item(s) 6

25310-17E02

Unavailable

6

PIN (4X13.8)

04221-04089

$1.49

7

PIN, CAM SHIFTER

25312-12C00

$8.05

8

SHIFTER, GEAR SHIFT CAM | MODEL T This part replaces 25322-33C00.

25322-33C01

$64.68

8

SHIFTER, GEAR SHIFT CAM | MODEL V/W/X

25322-33C01

$64.68

9

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

10

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

11

LIFTER, GEAR SHIFT PAWL | MODEL T/V

25331-26D00

Unavailable

11

LIFTER, GEAR SHIFT PAWL | MODEL W This part replaces 25331-26D10.

25331-26D00

Unavailable

11

LIFTER, GEAR SHIFT PAWL | MODEL X

25331-26D00

Unavailable

12

GUIDE, GEAR SHIFT CAM

25341-33E00

Unavailable

13

PLATE, GEAR SHIFT CAM

25380-33E00

Unavailable

14

WASHER, GEAR SHIFT | 25X32X3

09160-25059

$6.63

15

SPACER, SHIFT CAM GUIDE | 6.1X10X16

09180-06202

Unavailable

16

SPACER, SHIFT PAWL LIFTER | 6.1X10X16

09180-06202

Unavailable

17

ROLLER, SHIFT CAM SHIFTER | 7X10X5

09180-07014

$4.11

18

PIN, SHIFT PAWL CLICK

09261-05003

$1.54

19

BEARING, GEAR SHIFT CAM | 25X47X8

09262-25006

$25.54

20

BEARING, GEAR SHIFT | 25X32X12

09263-25018

$21.39

21

SPRING, SHIFT PAWL RETURN

09440-04003

$1.54

22

SCREW, SEAT SUPPORT BRK This part replaces 02112-06303.

02112-0630A

$1.78

23

SCREW This part replaces 02122-06303.

02122-0630B

$2.06

24

NUT This part replaces 08316-10063.

08316-1006B

$2.50

25

STOPPER, SHIFT CAM

25350-26D01

$16.22

25A

SPRING, SHIFT CAM STOPPER

25355-33E00

Unavailable

26

SUPPORT, CAM STOPPER

25356-12C00

$17.37

27

WASHER, CAM STOPPER

08211-06141

$1.59

28

SHAFT, GEAR SHIFT | MODEL T/V This part replaces 25510-17E20.

25510-33E10

Unavailable

28A

SHAFT, GEAR SHIFT | MODEL W/X

25510-33E10

Unavailable

28B

BUSH, GEAR SHIFT | MODEL W/X

25516-33E00

Unavailable

29

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

30

WASHER, GEAR SHAFT,LH | 14X29X0.8

09160-14016

$1.93

31

BEARING, GEAR SHAFT | 14X20X12

09263-14027

$13.52

32

SEAL, GEAR SHAFT | 14X22X6

09283-14006

$6.70

33

SPRING, SHIFT RETURN

09444-20003

$6.13

34

WASHER, GEAR SHAFT,RH

08211-14261

Unavailable

35

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.91

36

ARM,GEAR SHIFT | Includes Item(s) 37 This part replaces 25520-29B00.

25520-29B01

$37.09

37

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

38

ROD, GEAR SHIFT LINK

25525-07A10

$12.48

39

LEVER ASSY,GEAR | Includes Item(s) 40 - 41 This part replaces 25600-33E00.

25600-33E01

$142.81

40

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

41

RUBBER, GEAR PEDAL

25652-20C00

$5.44

42

NUT, GEAR SHIFT ROD,LH

09140-06011

$1.49

43

WASHER, GEAR SHIFT (18X24X1) | MODEL T

09160-18022

$2.92

44

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

45

.NUT

08310-00067

$2.13

46

BASE ASSY, GEAR SHIFT TERM | MODEL T/V

37730-33E00

Unavailable

46

BASE ASSY,GEAR | MODEL W/X This part replaces 37730-33E10.

37730-33E11

Unavailable

47

CONTACT, GEAR SHIFT SW

09209-05011

$2.20

48

O RING, GEAR SHIFT | ID:25.7,OD:2.4

09280-26007

$6.52

49

CLAMP

09404-06429

$1.83

50

SPRING, GEAR SHIFT SW

09440-04010

$1.54

51

.SCREW This part replaces 02112-05163.

02112-0516A

$1.49
