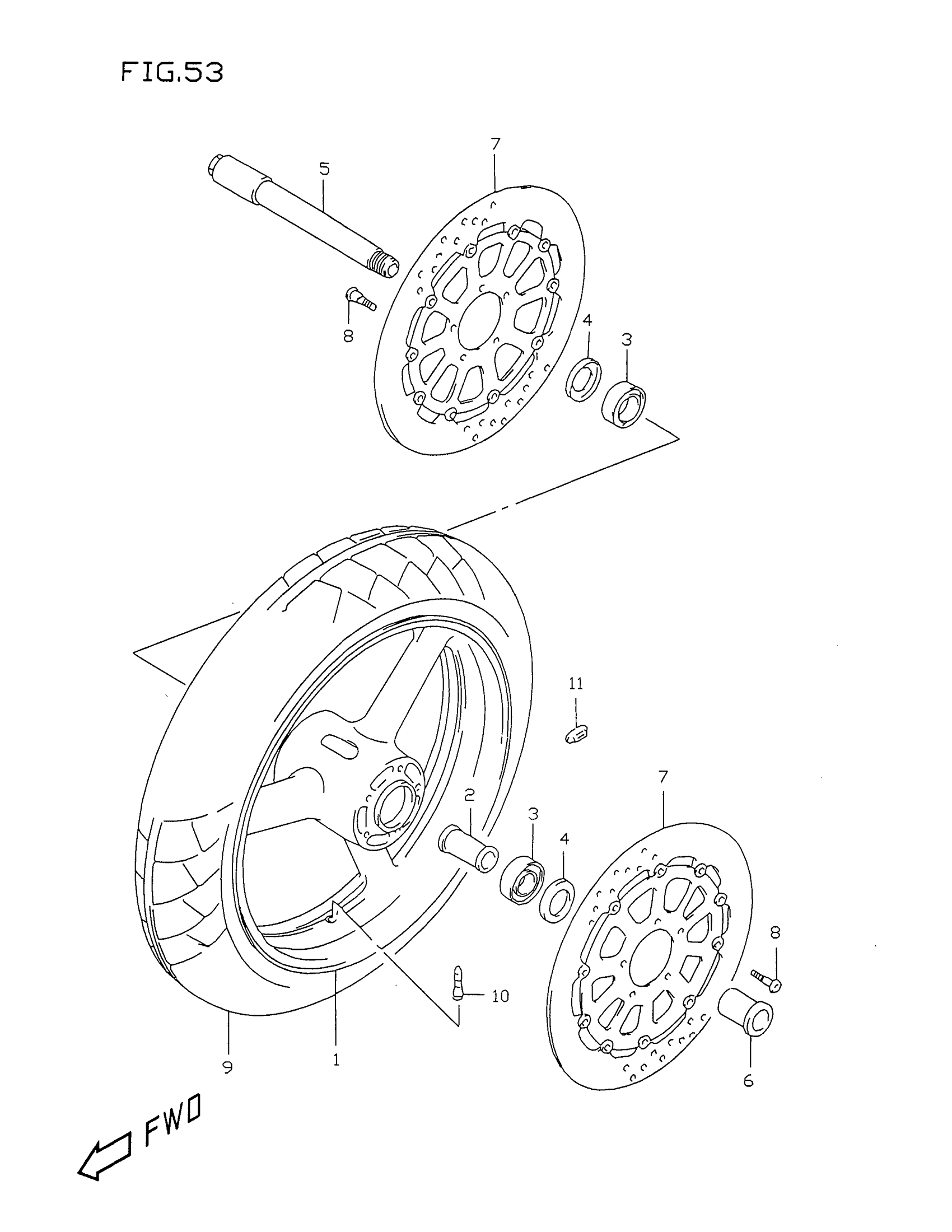

Suzuki GSX-R750X (1999) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL,FR,17M/CX | MODEL T FOR F1S,L99MODEL V/W FOR G7UMODEL X FOR M4L This part replaces 54111-33E00-12R.

54111-33E11-12R

Unavailable

1

WHEEL,FR,17M/CX | MODEL V/W/X FOR L99 This part replaces 54111-33E00-28W.

54111-33E11-28W

Unavailable

2

SPACER, HUB BEARING | MODEL T/VMDOEL W~F.NO.JS1GR7DA W2104829 This part replaces 54730-33E00.

54731-33E10

$41.11

2

SPACER, HUB BEARING | MODEL W F.NO.JS1GR7DA W2104830~MODEL X

54731-33E10

$41.11

3

BEARING (25X52X15)

09262-25061

$33.12

4

.SEAL,OIL (32X52X7)

09285-32004

$7.98

5

AXLE, FRONT

54711-33E00

$156.07

6

NUT, AXLE

54712-33E00

$58.96

7

DISC, FRONT BRAKE | MODEL T/V

59210-33E00

Unavailable

7

DISC, FRONT BRAKE | MODEL W/X

59210-33E30

$625.47

8

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

9

TIRE, FRONT | MODEL T/V

55110-33E10

Unavailable

9

TIRE, FRONT | MODEL W/X

55110-33E50

Unavailable

10

VALVE ASSY, WHEEL RIM (TR412) | MODEL T/V/W This part replaces 43130-24A11.

43130-24A00

$8.85

10

VALVE ASSY, WHEEL RIM (TR412) | MODEL X

43130-24A00

$8.85

11

BALANCER (10G)

55411-00A00

$1.49

11

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05
