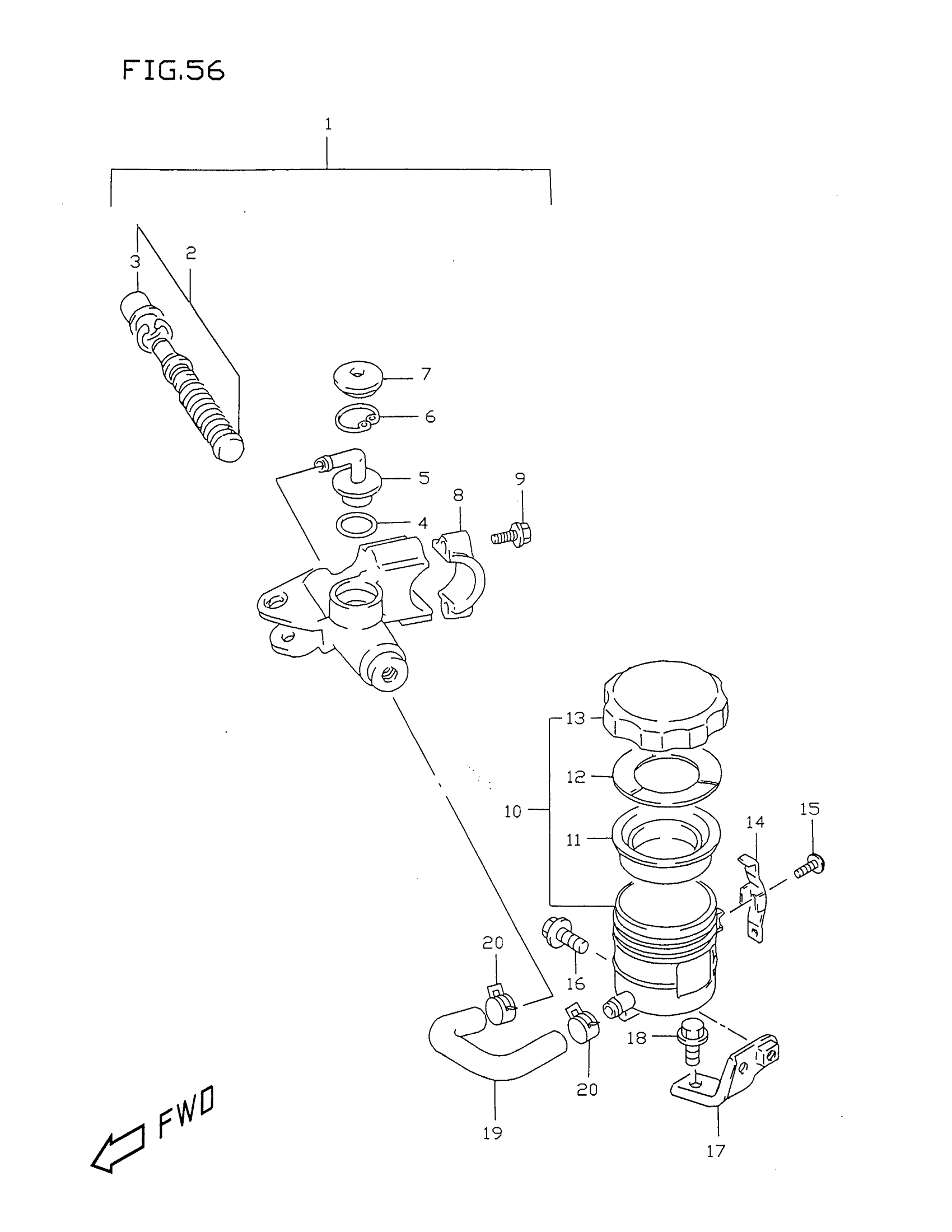

Suzuki GSX-R750X (1999) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9

59600-32C01

$325.48

2

PISTON/CUP SET

59600-45860

$36.14

3

BOOT

59666-44300

$5.30

4

O RING

69686-34200

$2.80

5

CONNECTOR

59672-17C00

$8.52

6

CIRCLIP

69674-00B20

$3.73

7

COVER, DUST

59673-17C00

$7.92

8

.HOLDER

59671-36500

$11.50

9

BOLT HOLDER SET

59675-19C00

$4.53

10

TANK ASSY, RESERVOIR | Includes Item(s) 11 - 13

59740-07D00

$55.29

11

DIAPHRAGM

59667-18441

$9.41

12

PLATE

59668-18441

$4.26

13

CAP

59669-07D00

$35.80

14

PLATE, TANK CAP

59743-17C00

$8.52

15

.SCREW | MODEL T/V This part replaces 02112-74123.

02112-7412A

$2.67

15

SCREW | MODEL W/X This part replaces 02142-04103.

02142-0410A

$1.22

16

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

17

BRACKET,RES TAN This part replaces 59750-33E01.

59750-33E0V

$10.60

18

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

19

HOSE, RESERVOIR TANK

59731-17E00

$26.32

20

CLAMP, HOSE

59735-17C00

$4.51
