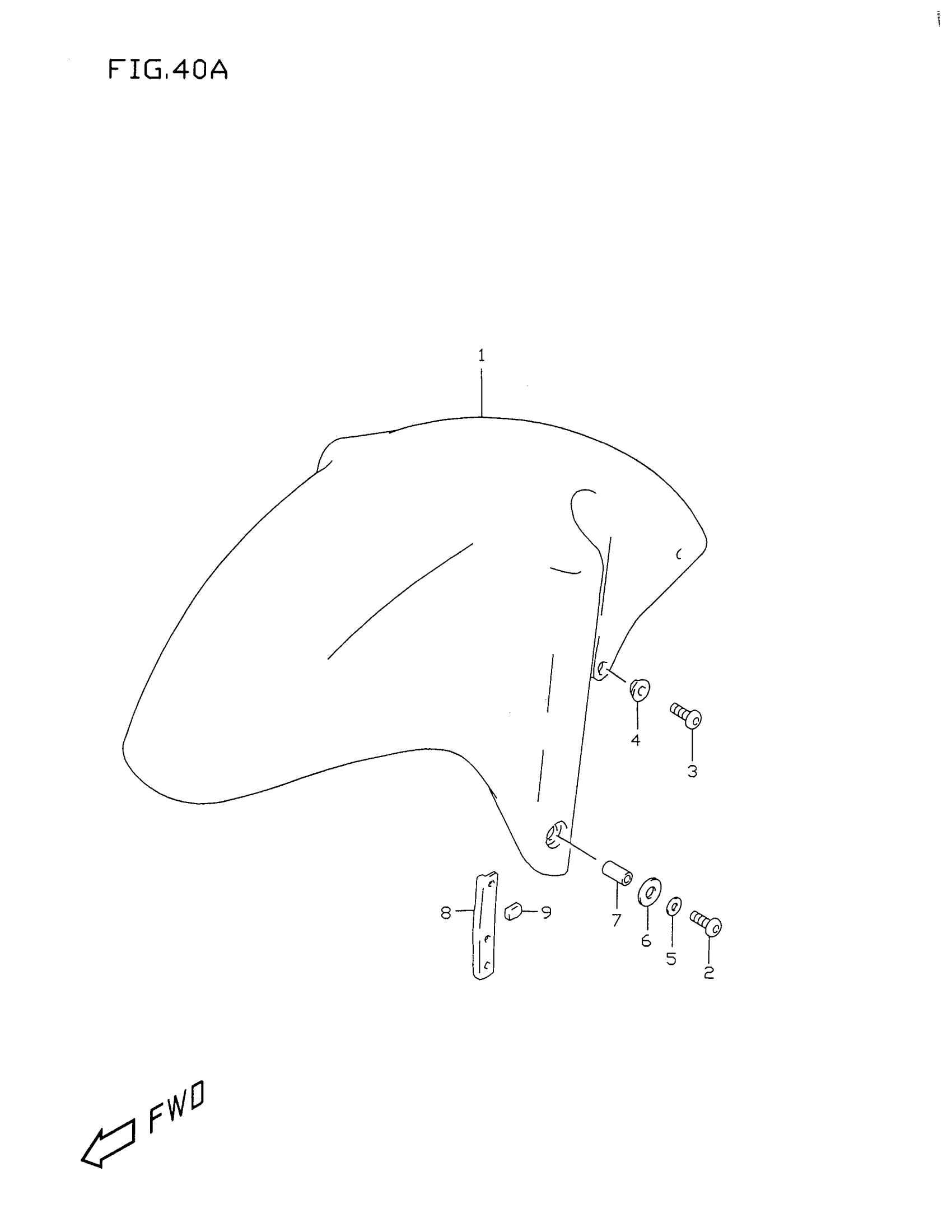

Suzuki GSX-R750X (1999) FRONT FENDER (MODEL W/X) Diagram

#

Description

Price

1

FENDER, FRONT (BLACK) | FOR G7U

53110-33E40-291

Unavailable

1

FENDER, FRONT (BLACK) | FOR M4L

53110-33E40-Y7L

Unavailable

1

FENDER, FRONT | FOR L99

53110-33E60

Unavailable

2

SCREW, FRONT (L:20)

09139-06028

$3.33

3

SCREW, REAR (L:16)

09139-06030

$3.33

4

WASHER, REAR

09161-06021

$2.80

5

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06079.

09160-06052

$1.45

6

WASHER

53121-33E00

$3.14

7

SPACER, FRONT

09180-06258

$1.82

8

PLATE,FRONT FEN This part replaces 53122-33E00.

53122-33E0V

Unavailable

9

CUSHION (80X20X10) This part replaces 53123-33E00.

33652-01D10

$5.83

10

COLOR :

SPECIAL NOTE

Unavailable
