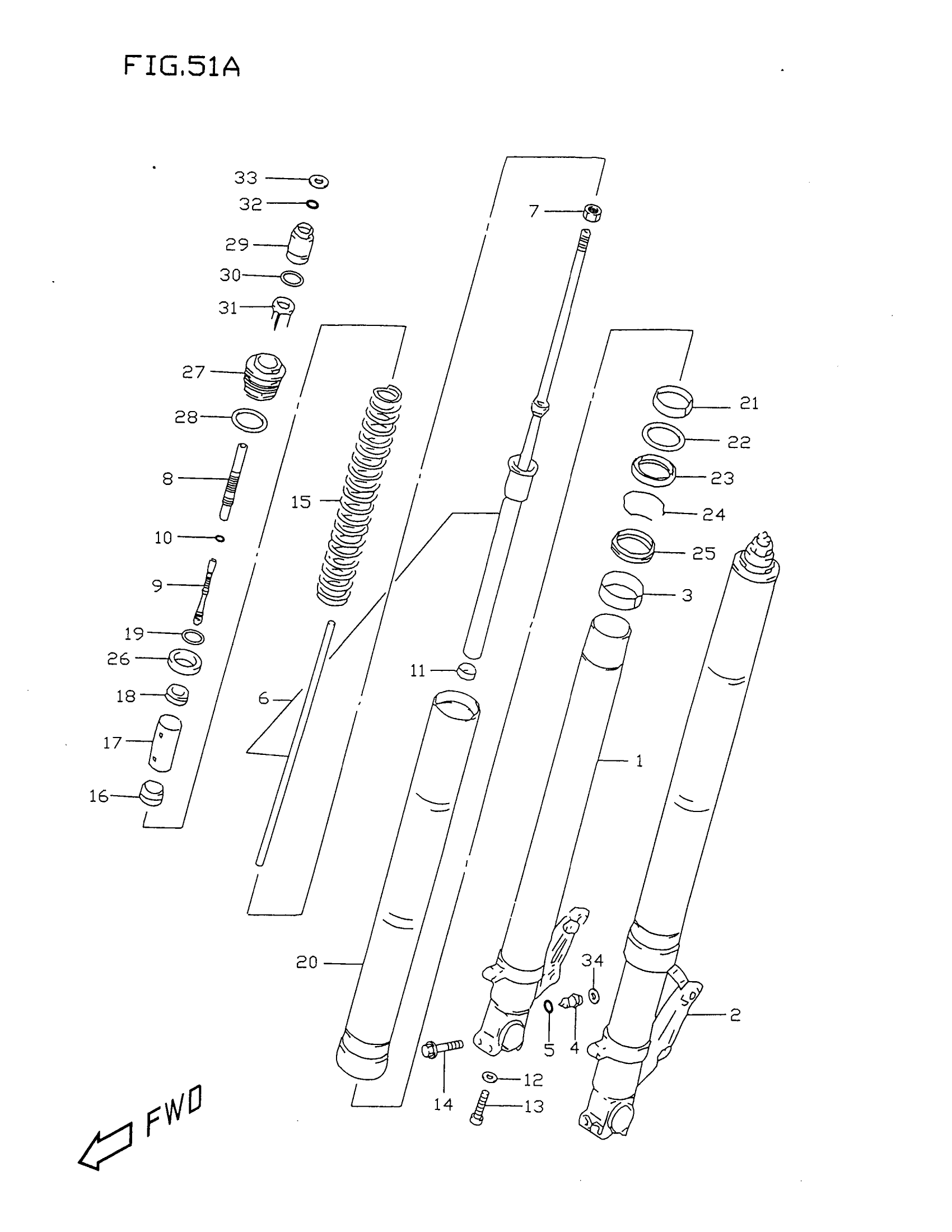

Suzuki GSX-R750X (1999) FRONT DAMPER (MODEL W/X) Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-33E30

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 34

51104-33E30

Unavailable

1

TUBE, INNER RH

51110-33E20

Unavailable

2

TUBE, INNER LH

51120-33E20

Unavailable

3

BUSH, SLIDE

51121-13E00

$18.28

4

PIECE, ADJUSTER LOWER

51830-33E00

Unavailable

5

O RING

09280-14011

$4.77

6

ROD, DAMPER

52110-33E20

Unavailable

7

NUT

51827-33E00

$17.28

8

CASE, ADJUST

51829-33E20

Unavailable

9

PIECE, ADJUST

51821-33E00

Unavailable

10

O RING

09280-03002

$1.49

11

PLATE, CENTERING

51815-33E00

Unavailable

12

WASHER (10X15X1.5)

09161-10009

$1.84

13

BOLT

51147-17C00

$22.65

14

BOLT, AXLE HOLDLER

01550-08457

$4.00

15

SPRING

51171-33E20

Unavailable

16

JOINT, SPRING LOWER

51172-17E00

Unavailable

17

SPACER, SPRING

51176-33E00

Unavailable

18

.GUIDE,SPRING UPR

51175-22D00

$20.33

19

WASHER, JOINT

51172-34370

$3.37

20

TUBE, OUTER

51131-17E40

Unavailable

21

BUSH, GUIDE

51152-13E00

$19.74

22

.SPACER, SEAL

51168-17C00

$6.28

23

SEAL, OIL

51153-14D00

$22.96

24

RING, STOPPER

51556-38B00

$7.22

25

SEAL, DUST

51173-29E00

$26.58

26

RUBBER, SEAT

51193-17D00

$14.20

27

BOLT, FORK

51189-18D00

Unavailable

28

O RING, FORK BOLT

51187-08D00

$6.17

29

ADJUSTER, SPRING

51828-17D00

Unavailable

30

O RING, ADJUSTER OUTER

51199-17D00

$6.27

31

PLATE, SPRING ADJUSTER

51823-22D30

$36.65

32

RING, STOPPER

51837-17D00

$6.38

33

LABEL, ADJUSTER UPPER

51149-42E00

$4.75

34

LABEL, ADJUSTER LOWER

51169-42E00

$4.75
