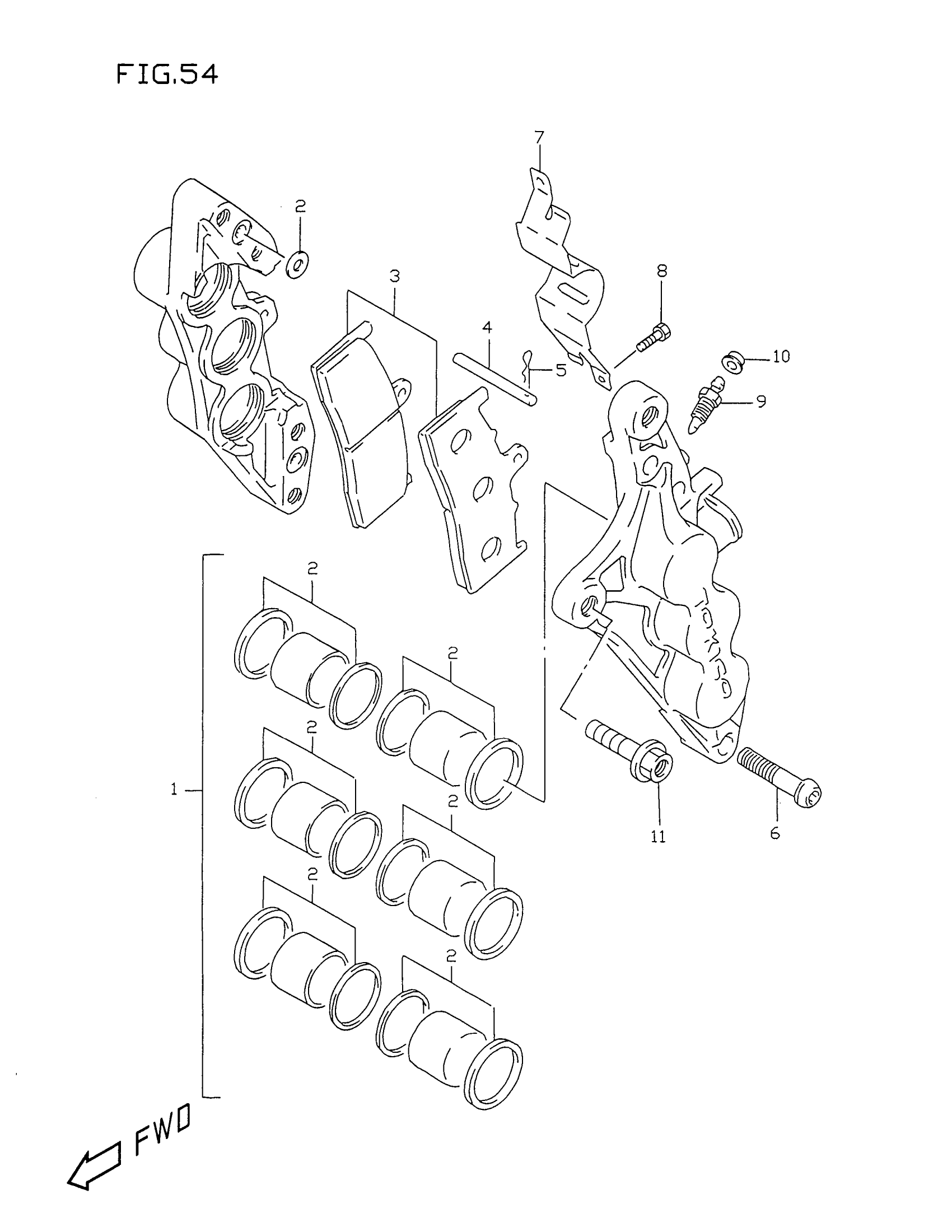

Suzuki GSX-R750X (1999) FRONT CALIPERS Diagram

#

Description

Price

CALIPER ASSY, FRONT RH This part replaces 59100-33E00.

59100-33E30-999

Unavailable

CALIPER ASSY, FRONT LH | Includes Item(s) 1 - 10 This part replaces 59300-33E00.

59300-33E30-999

Unavailable

1

PISTON SET This part replaces 59300-33870.

59300-33871

$141.20

2

SEAL SET, PISTON This part replaces 59300-33880.

59300-33881

$54.12

3

PAD SET

59300-33890

$72.63

4

PIN

69141-45000

$5.17

5

.CLIP, PAD PIN

69142-45000

$4.34

6

BOLT

59145-33E00

$9.37

7

COVER

59151-46E00

$30.05

8

.SCREW

59153-22D00

$6.30

9

BLEEDER

59121-18410

$8.73

10

CAP

55156-66310

$5.17

11

BOLT (10X30)

09103-10296

$6.44
