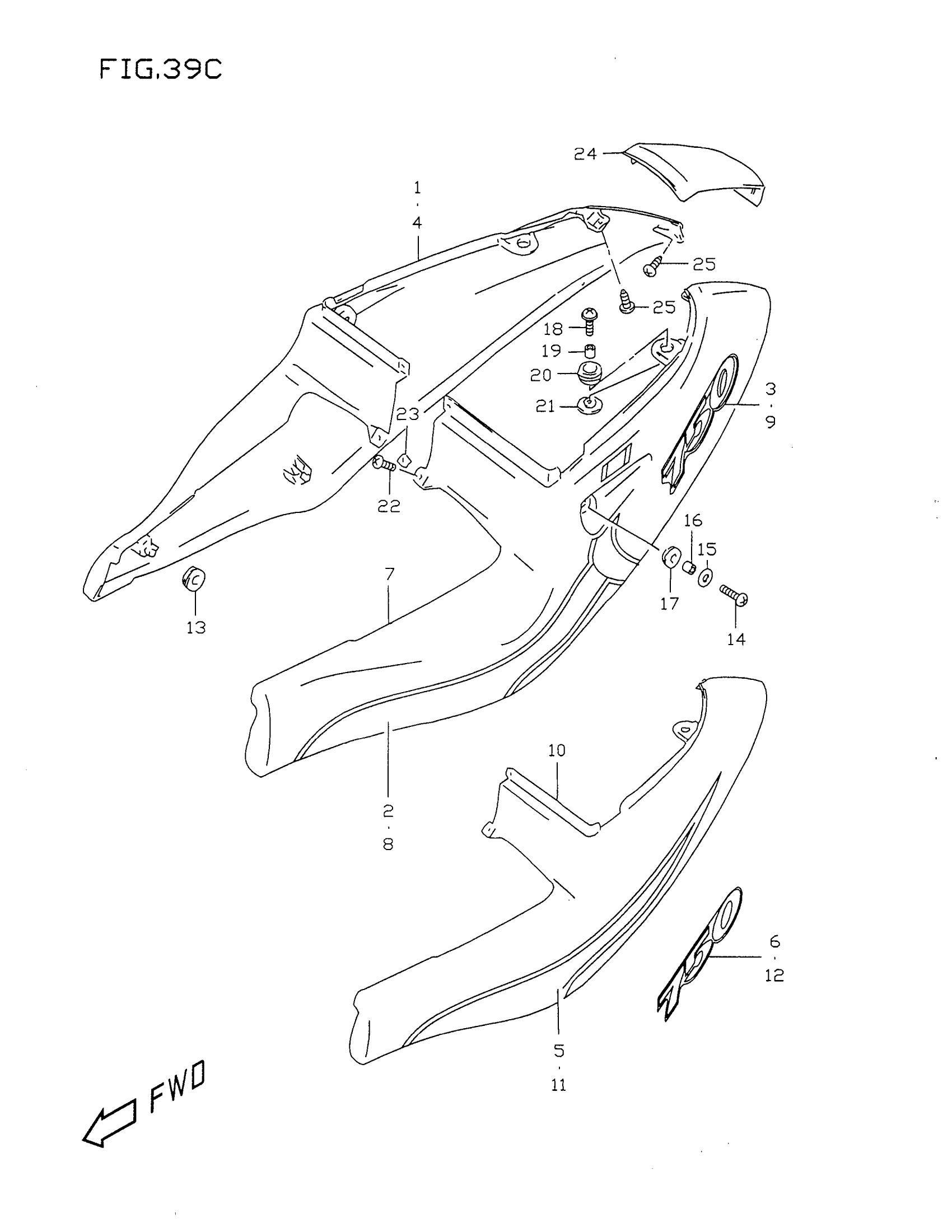

Suzuki GSX-R750X (1999) FRAME COVER (MODEL X) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | FOR L99; Includes Item(s) 2 - 3

47110-33E80-0JW

Unavailable

2

TAPE, COVER RH

68135-33E60-D4Z

Unavailable

3

EMBLEM, 750

68131-33E50-K8S

Unavailable

4

COVER, FRAME RH (BLACK) | FOR M4L; Includes Item(s) 5 - 6

47110-33E90-Y7L

Unavailable

5

TAPE, FRAME COVER RH

68135-33E70-M5F

Unavailable

6

EMBLEM, 750

68131-33E60-M5G

Unavailable

7

COVER, FRAME LH (WHITE) | FOR L99; Includes Item(s) 8 - 9

47210-33E80-0JW

Unavailable

8

TAPE, COVER LH

68145-33E60-D4Z

Unavailable

9

EMBLEM, 750

68131-33E50-K8S

Unavailable

10

COVER, FRAME LH (BLACK) | FOR M4L; Includes Item(s) 11 - 12

47210-33E90-Y7L

Unavailable

11

TAPE, FRAME COVER LH

68145-33E70-M5F

Unavailable

12

EMBLEM, 750

68131-33E60-M5G

Unavailable

13

CUSHION

09320-08018

$3.04

14

SCREW, SIDE

09139-06071

$4.41

15

WASHER

09160-06054

$1.62

16

SPACER

09180-06258

$1.81

17

CUSHION This part replaces 94433-26B00.

94433-26B01

$3.38

18

SCREW, UPPER

09136-06082

$2.12

19

SPACER

09180-06286

$2.50

20

CUSHION

45149-04A00

$3.59

21

CUSHION, LOWER

45326-17C00

$5.09

22

SCREW This part replaces 03241-15103.

03241-1510B

$2.60

23

NUT

09148-05038

$1.97

24

COVER, FRAME CENTER (WHITE) | FOR L99

47311-33E00-0JW

Unavailable

24

COVER, FRAME CENTER (BLACK) | FOR M4L

47311-33E00-Y7L

Unavailable

25

SCREW This part replaces 03541-15163.

03541-1516A

$2.06

26

COLOR :

SPECIAL NOTE

Unavailable
