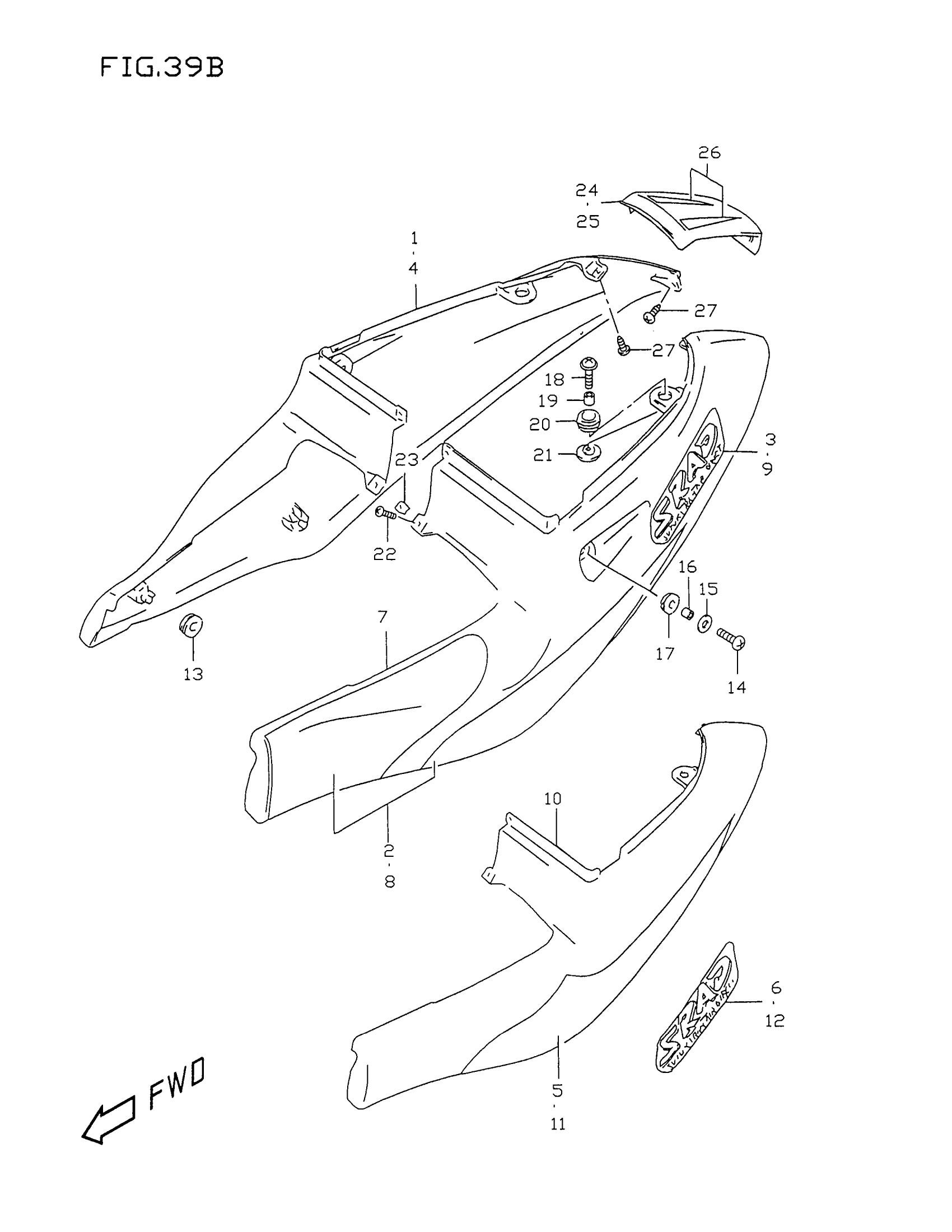

Suzuki GSX-R750X (1999) FRAME COVER (MODEL W) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK) | FOR G7U; Includes Item(s) 2 - 3

47110-33E70-2VX

Unavailable

2

TAPE SET, COVER RH

68130-33E30-K3C

Unavailable

3

EMBLEM, SRAD

68131-33E40-K3E

Unavailable

4

COVER, FRAME RH (WHITE) | FOR L99; Includes Item(s) 5 - 6

47110-33E60-0JW

Unavailable

5

TAPE, FRAME COVER RH

68135-33E50-Y3P

Unavailable

6

EMBLEM, SRAD

68131-33E30-F3S

Unavailable

7

COVER, FRAME LH (BLACK) | FOR G7U; Includes Item(s) 8 - 9

47210-33E70-2VX

Unavailable

8

TAPE SET, COVER LH

68140-33E30-K3C

Unavailable

9

EMBLEM, SARD

68131-33E40-K3E

Unavailable

10

COVER, FRAME LH (WHITE) | FOR L99; Includes Item(s) 11 - 12

47210-33E60-0JW

Unavailable

11

TAPE, FRAME COVER LH

68145-33E50-Y3P

Unavailable

12

EMBLEM, SRAD

68131-33E30-F3S

Unavailable

13

CUSHION

09320-08018

$3.04

14

SCREW, SIDE

09139-06071

$4.41

15

WASHER

09160-06054

$1.62

16

SPACER

09180-06258

$1.81

17

CUSHION This part replaces 94433-26B00.

94433-26B01

$3.38

18

SCREW, UPPER

09136-06082

$2.12

19

SPACER

09180-06286

$2.50

20

CUSHION

45149-04A00

$3.59

21

CUSHION, LOWER

45326-17C00

$5.09

22

SCREW This part replaces 03241-15103.

03241-1510B

$2.60

23

NUT

09148-05038

$1.97

24

COVER, FRAME CENTER (BLACK) | FOR G7U

47311-33E00-33J

Unavailable

25

COVER, FRAME CENTER (WHITE) | FOR L99; Includes Item(s) 26

47310-33E20-0JW

Unavailable

26

TAPE SET, CENTER COVER (BLUE | FOR 0JW

68165-33E10-1LF

Unavailable

27

SCREW This part replaces 03541-15163.

03541-1516A

$2.06

28

COLOR :

SPECIAL NOTE

Unavailable
