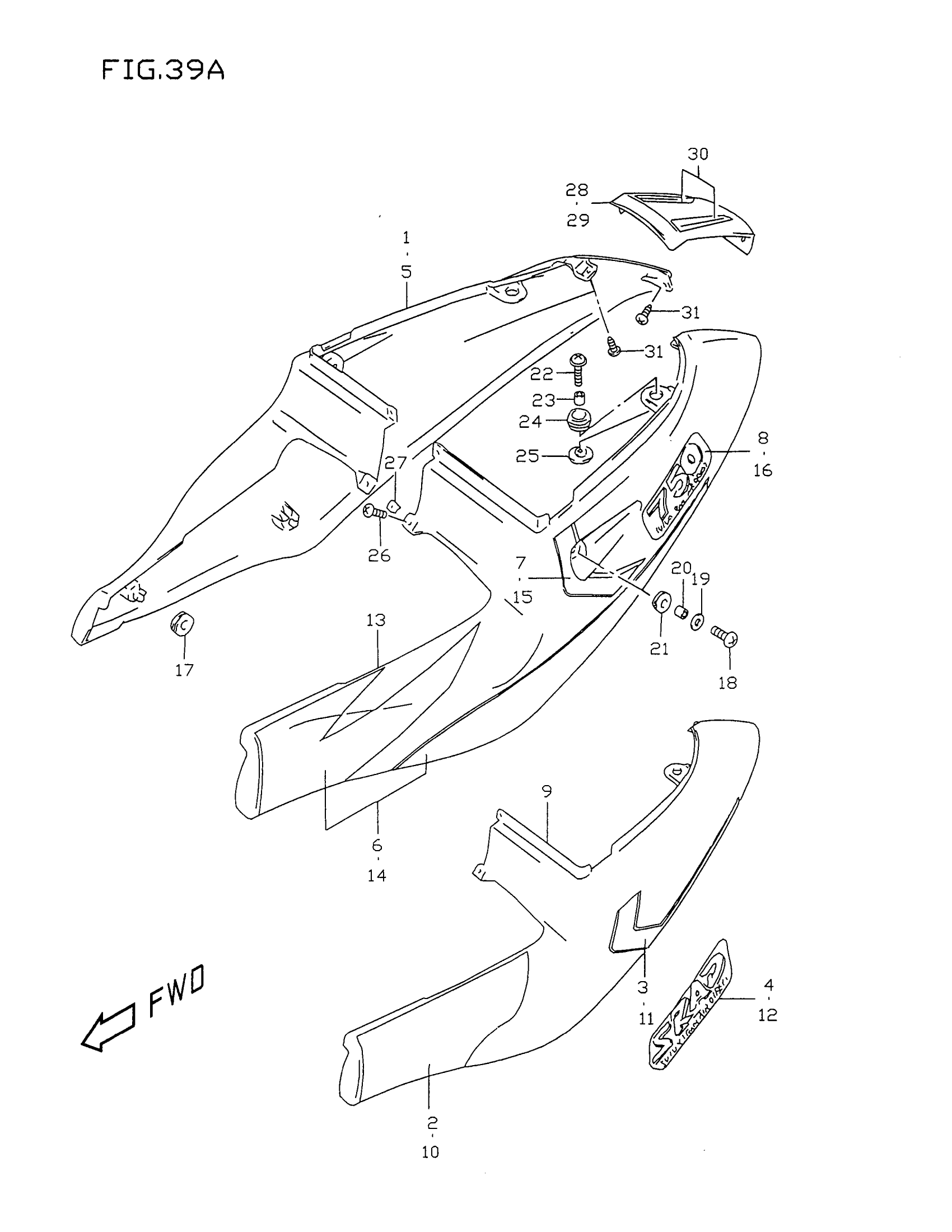

Suzuki GSX-R750X (1999) FRAME COVER (MODEL V) Diagram

#

Description
Price

1

COVER, FRAME RH (ORANGE) | FOR G7U; Includes Item(s) 2 - 4

47110-33E40-Y0W

Unavailable

2

TAPE, FRONT RH (BLACK)

68135-33E41-33J

Unavailable

3

TAPE, REAR RH

68136-33E00-G8N

Unavailable

4

EMBLEM, SRAD

68131-33E30-G8R

Unavailable

5

COVER, FRAME RH (WHITE) | FOR L99; Includes Item(s) 6 - 8

47110-33E30-0JW

Unavailable

6

TAPE SET, FRONT

68130-33E21-F3R

Unavailable

7

TAPE, REAR

68135-33E30-G9B

Unavailable

8

EMBLEM, 750

68131-33E20-F3S

Unavailable

9

COVER, FRAME LH (ORANGE) | FOR G7U; Includes Item(s) 10 - 12

47210-33E40-Y0W

Unavailable

10

TAPE, FRONT LH (BLACK)

68145-33E41-33J

Unavailable

11

TAPE, REAR LH

68146-33E00-G8N

Unavailable

12

EMBLEM, SARD

68131-33E30-G8R

Unavailable

13

COVER, FRAME LH (WHITE) | FOR L99; Includes Item(s) 14 - 16

47210-33E30-0JW

Unavailable

14

TAPE SET, FRONT

68140-33E21-F3R

Unavailable

15

TAPE, REAR

68145-33E30-G9B

Unavailable

16

EMBLEM, 750

68131-33E20-F3S

Unavailable

17

CUSHION

09320-08018

$3.04

18

SCREW, SIDE

09139-06071

$4.41

19

WASHER

09160-06054

$1.62

20

SPACER

09180-06258

$1.81

21

CUSHION This part replaces 94433-26B00.

94433-26B01

$3.38

22

SCREW, UPPER

09136-06082

$2.12

23

SPACER

09180-06286

$2.50

24

CUSHION

45149-04A00

$3.59

25

CUSHION, LOWER

45326-17C00

$5.09

26

SCREW This part replaces 03241-15103.

03241-1510B

$2.60

27

NUT

09148-05038

$1.97

28

COVER, FRAME CENTER (ORANGE) | FOR G7U

47311-33E00-Y0W

Unavailable

29

COVER, FRAME CENTER (WHITE) | FOR L99; Includes Item(s) 30

47310-33E00-1LX

Unavailable

30

TAPE SET, CENTER COVER

68165-33E00-G9B

Unavailable

31

SCREW This part replaces 03541-15163.

03541-1516A

$2.06

32

COLOR :

SPECIAL NOTE

Unavailable
