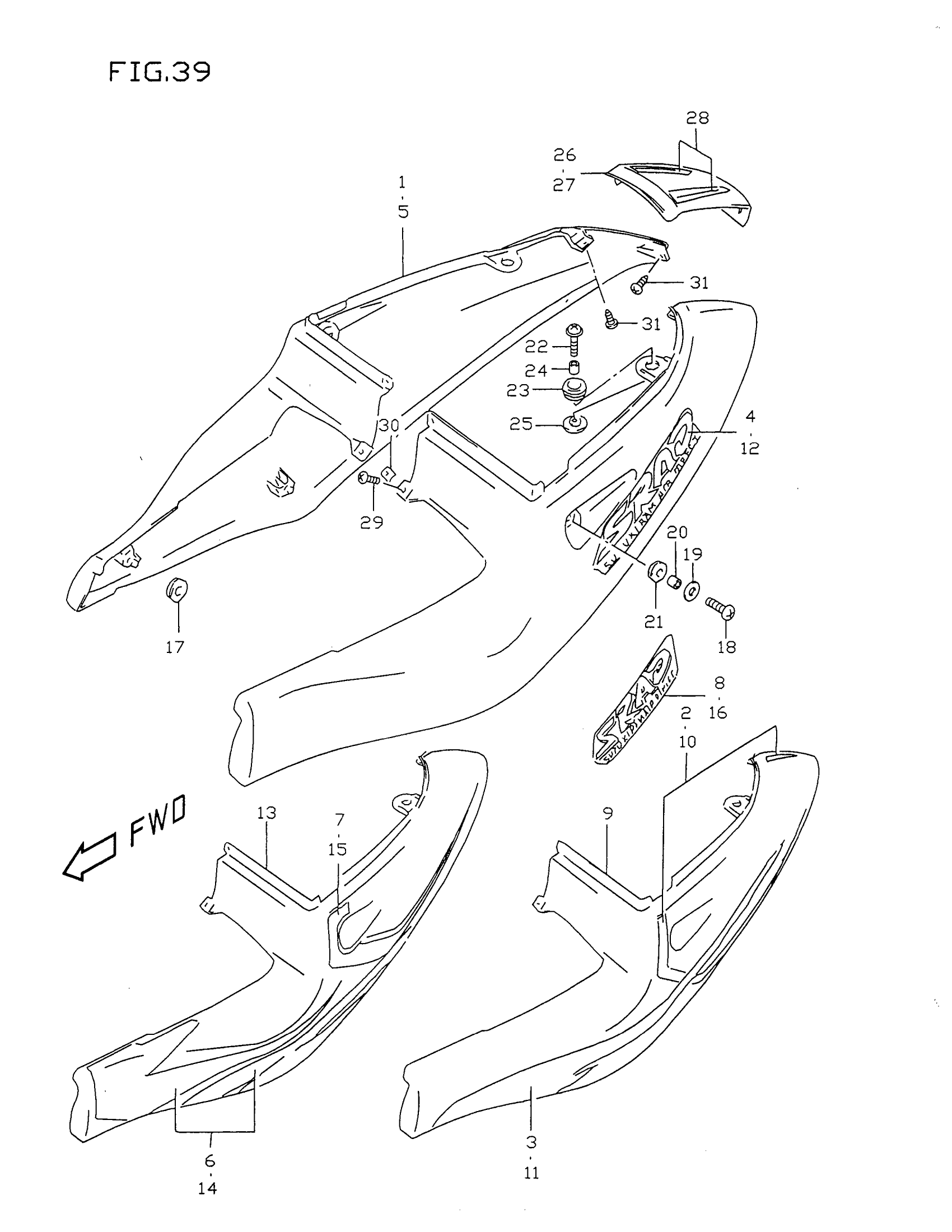

Suzuki GSX-R750X (1999) FRAME COVER (MODEL T) Diagram

#

Description
Price

1

COVER, FRAME RH (BROWN) | FOR F1S; Includes Item(s) 2 - 4

47110-33E20-29F

Unavailable

2

TAPE SET, RH (YELLOW)

68130-33E10-Z66

Unavailable

3

TAPE, STRIPING RH

68135-33E20-Z88

Unavailable

4

EMBLEM, SRAD

68131-33E10-F4R

Unavailable

5

COVER, FRAME RH (WHITE) | FOR L99; Includes Item(s) 6 - 8

47110-33E00-0JW

Unavailable

6

TAPE SET, RH

68130-33E00-F3R

Unavailable

7

TAPE, STRIPING RH

68135-33E00-F3S

Unavailable

8

EMBLEM, SRAD

68131-33E00-F4P

Unavailable

9

COVER, FRAME LH (BROWN) | FOR F1S; Includes Item(s) 10 - 12

47210-33E20-29F

Unavailable

10

TAPE SET, LH (YELLOW)

68140-33E10-Z66

Unavailable

11

TAPE, STRIPING LH

68145-33E20-Z88

Unavailable

12

EMBLEM, SRAD

68131-33E10-F4R

Unavailable

13

COVER, FRAME LH (WHITE) | FOR L99; Includes Item(s) 14 - 16

47210-33E00-0JW

Unavailable

14

TAPE SET, LH

68140-33E00-F3R

Unavailable

15

TAPE, STRIPING LH

68145-33E00-F3S

Unavailable

16

EMBLEM, SRAD

68131-33E00-F4P

Unavailable

17

CUSHION, BOSS

09320-08018

$3.04

18

SCREW, SIDE

09139-06071

$4.41

19

WASHER

09160-06054

$1.62

20

SPACER This part replaces 09180-06027.

09180-06258

$1.81

21

CUSHION This part replaces 94433-26B00.

94433-26B01

$3.38

22

SCREW, UPPER

09136-06082

$2.12

23

CUSHION, UPPER

45149-04A00

$3.59

24

SPACER This part replaces 09180-06167.

09180-06286

$2.50

25

CUSHION, LOWER

45326-17C00

$5.09

26

COVER, FRAME CENTER (BROWN) | FOR F1S

47311-33E00-29F

Unavailable

27

COVER, FRAME CENTER (WHITE) | FOR L99; Includes Item(s) 28

47310-33E00-0JW

Unavailable

28

TAP SET, CENTER | FOR 0JW

68165-33E00-F3S

Unavailable

29

SCREW This part replaces 03241-15103.

03241-1510B

$2.60

30

NUT

09148-05038

$1.97

31

SCREW This part replaces 03541-15163.

03541-1516A

$2.06

32

COLOR :

SPECIAL NOTE

Unavailable
