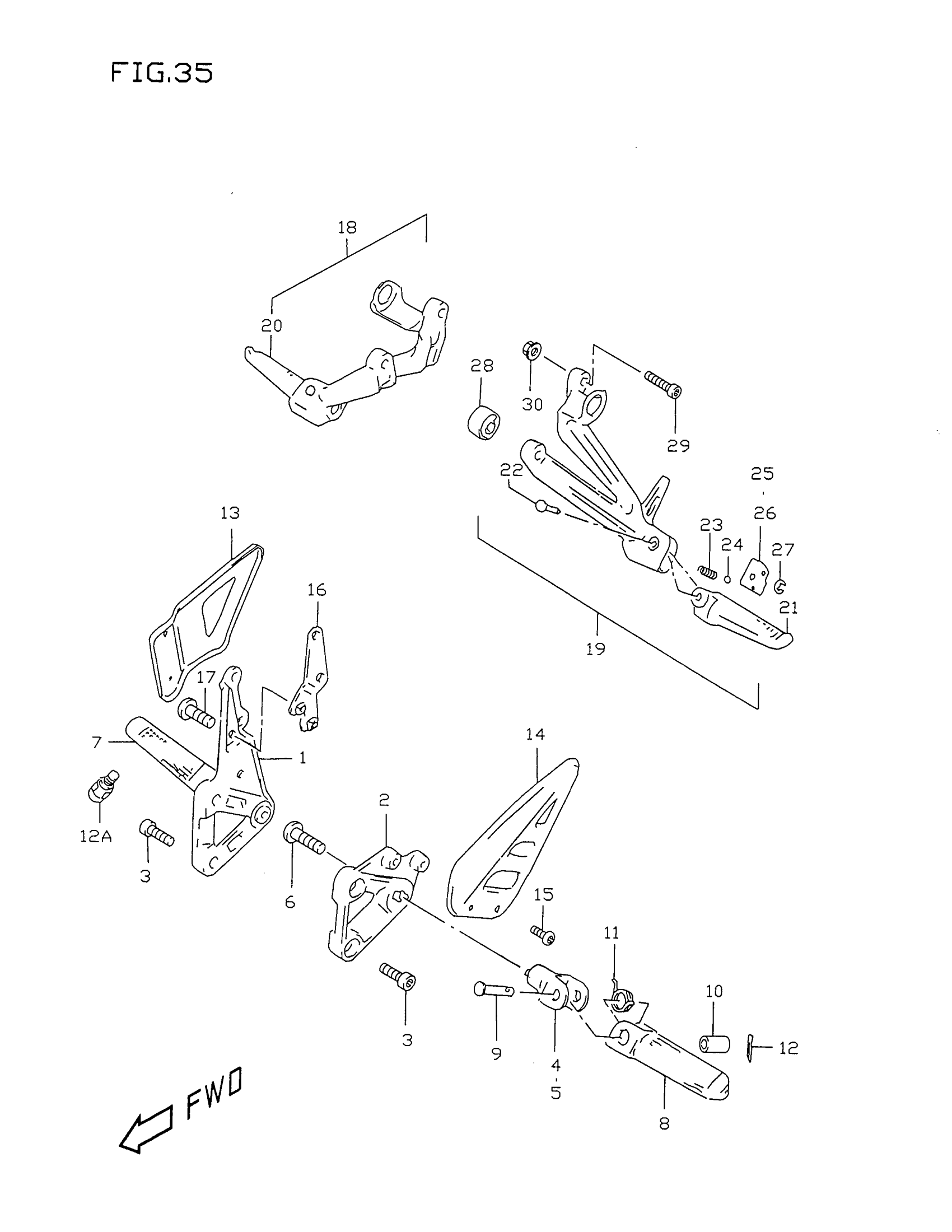

Suzuki GSX-R750X (1999) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH | MODEL T/V

43511-33E00

Unavailable

1

BRACKET, FRONT FOOTREST RH | MODEL W/X

43511-33E10

$143.67

2

BRACKET, FRONT FOOTREST LH

43521-33E00

$109.08

3

BOLT This part replaces 07130-08203.

07130-0820B

$3.49

4

HOLDER, FOOTREST RH | MODEL T/V This part replaces 43530-17E00.

43530-17E01

$56.05

4

HOLDER, FOOTREST RH | MODEL W/X

43530-17E01

$56.05

5

HOLDER, FOOTREST LH

43540-17E00

$53.98

6

BOLT, HOLDER

09106-10064

$4.90

7

BAR, FRONT FOOTREST RH | MODEL T/V This part replaces 43581-33E00.

43531-33D01

$62.88

7

BAR, FRONT FOOTREST RH | MODEL W This part replaces 43531-33D00.

43531-33D01

$62.88

7

BAR, FRONT FOOTREST RH | MODEL X

43531-33D01

$62.88

8

BAR, FRONT FOOTREST LH | MODEL T/V This part replaces 43591-33E00.

43591-02F01

$62.88

8

BAR, FRONT FOOTREST LH | MODEL W This part replaces 43591-02F00.

43591-02F01

$62.88

8

BAR, FRONT FOOTREST LH | MODEL X

43591-02F01

$62.88

9

PIN

09200-08057

$2.36

10

SPACER

09180-08149

$5.58

11

SPRING

09448-18022

$3.79

12

PIN This part replaces 04111-25158.

04111-2515A

$1.49

12A

.BOLT,BANK SENSOR | MODEL W/X

43576-07D01

$8.85

13

GUARD, FRONT FOOTREST RH | MODEL T/V This part replaces 43571-33E00.

43571-33E01

Unavailable

13

GUARD, FOOTREST RH | MODEL W/X

43571-33E01

Unavailable

14

GUARD, FOOTREST LH | MODEL T/V This part replaces 43576-33E00.

43576-33E01

Unavailable

14

GUARD, FOOTREST LH | MODEL W/X

43576-33E01

Unavailable

15

BOLT, GUARD LH

09139-05033

$2.20

16

PLATE, FOOTREST BRACKET RH | MODEL T/V

43570-33E00

Unavailable

17

BOLT | MODEL T/V

09139-06030

$3.70

18

FOOTREST ASSY, PILLION RH

43600-33E00

Unavailable

19

FOOTREST ASSY, PILLION LH | Includes Item(s) 20 - 28

43700-33E00

Unavailable

20

BAR, PILLION FOOTREST RH This part replaces 43611-33E00.

43611-33E11

$55.65

21

BAR, PILLION FOOTREST LH This part replaces 43621-33E00.

43621-33E11

$55.65

22

PIN

87259-85510

$5.19

23

SPRING

09440-05005

$1.58

24

BALL

06111-07004

$1.49

25

PLATE, RH | MODEL T/V

43816-23E10

Unavailable

25

PLATE, RH | MODEL W/X This part replaces 43816-33E20.

43816-33E21

$10.41

26

PLATE, LH | MODEL T/V

43826-23E10

Unavailable

26

PLATE, LH | MODEL W/X This part replaces 43826-33E20.

43826-33E22

$10.41

27

E RING This part replaces 08332-11043.

08332-1104A

$1.49

28

BUSH This part replaces 09319-08028.

09319-08052

$21.22

29

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$1.74

30

NUT This part replaces 08319-31083.

08319-3108A

$2.32
