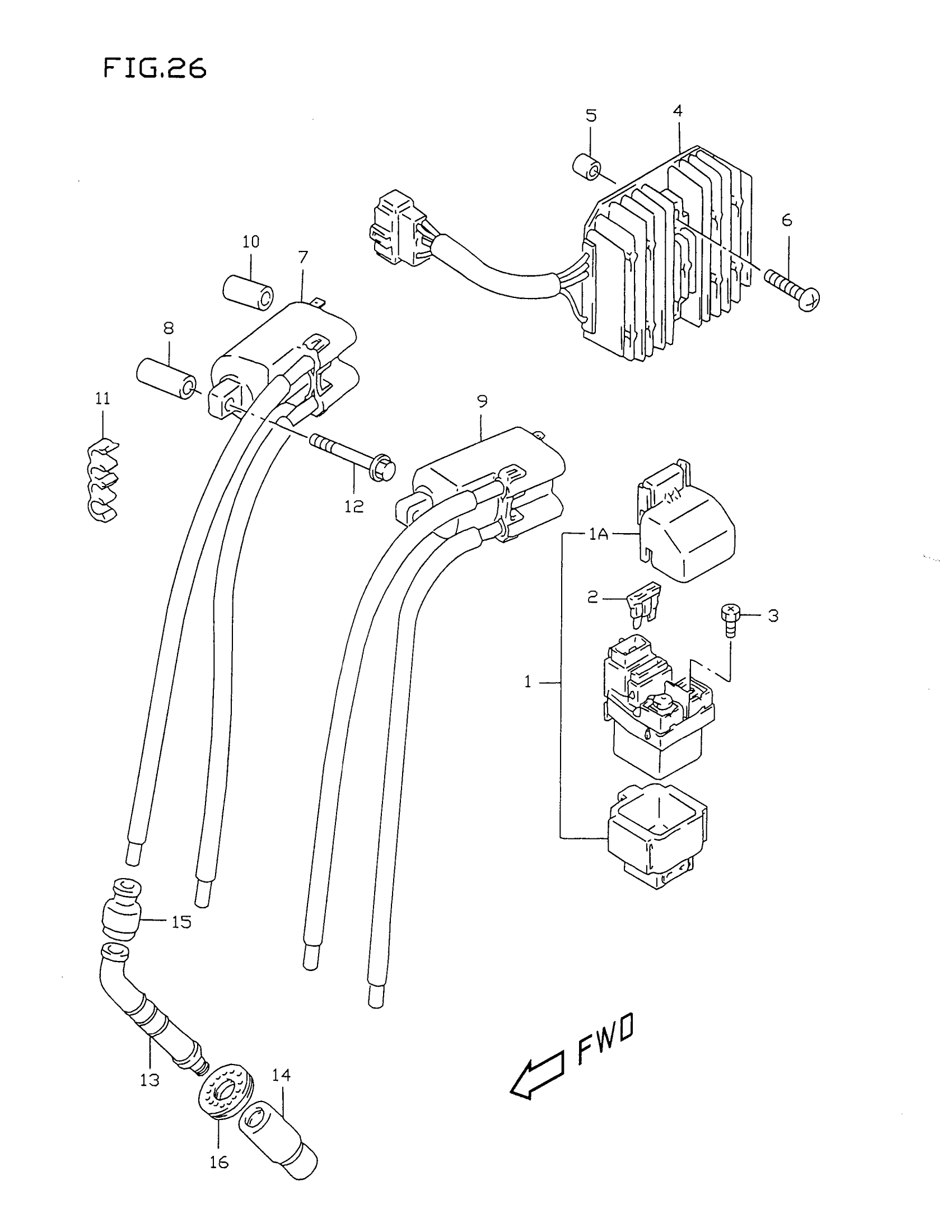

Suzuki GSX-R750X (1999) ELECTRICAL (MODEL T/V) Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR | Includes Item(s) 1A - 2

31800-26E00

$97.31

1A

COVER

31861-26E00

$4.16

2

FUSE (30A)

09481-30101

$2.26

3

BOLT (6X8)

09128-06013

$1.49

4

RECTIFIER ASSY This part replaces 32800-33E00.

32800-44D11

$318.90

5

SPACER (6.5X10X7) | MODEL T This part replaces 09180-06002.

09180-06283

$1.91

5

SPACER (6.5X10X7) | MODEL V

09180-06283

$1.91

6

SCREW | MODEL T This part replaces 02142-06303.

02142-0630B

$2.62

6

SCREW | MODEL V This part replaces 02142-06353.

02142-0635A

$2.72

7

COIL ASSY, IGNITION

33410-33E10

Unavailable

8

SPACER (6.5X10.5X25)

09180-06203

$2.71

9

COIL ASSY, IGNITION

33420-33E10

Unavailable

10

SPACER (6.4X10X28)

09180-06196

Unavailable

11

CLIP, HIGH TENSION

09408-00035

Unavailable

12

BOLT This part replaces 01550-06503.

01550-0650A

$2.85

13

CAP, SPARK PLUG

33510-17E11

Unavailable

14

SEAL, SPARK PLUG

33541-20C00

$13.43

15

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

16

COVER,SPARK PLUG CAP This part replaces 33543-33E00.

33543-33E01

$4.54

17

REFER TO FIG.26A(G-4) FOR

SPECIAL NOTE

Unavailable
