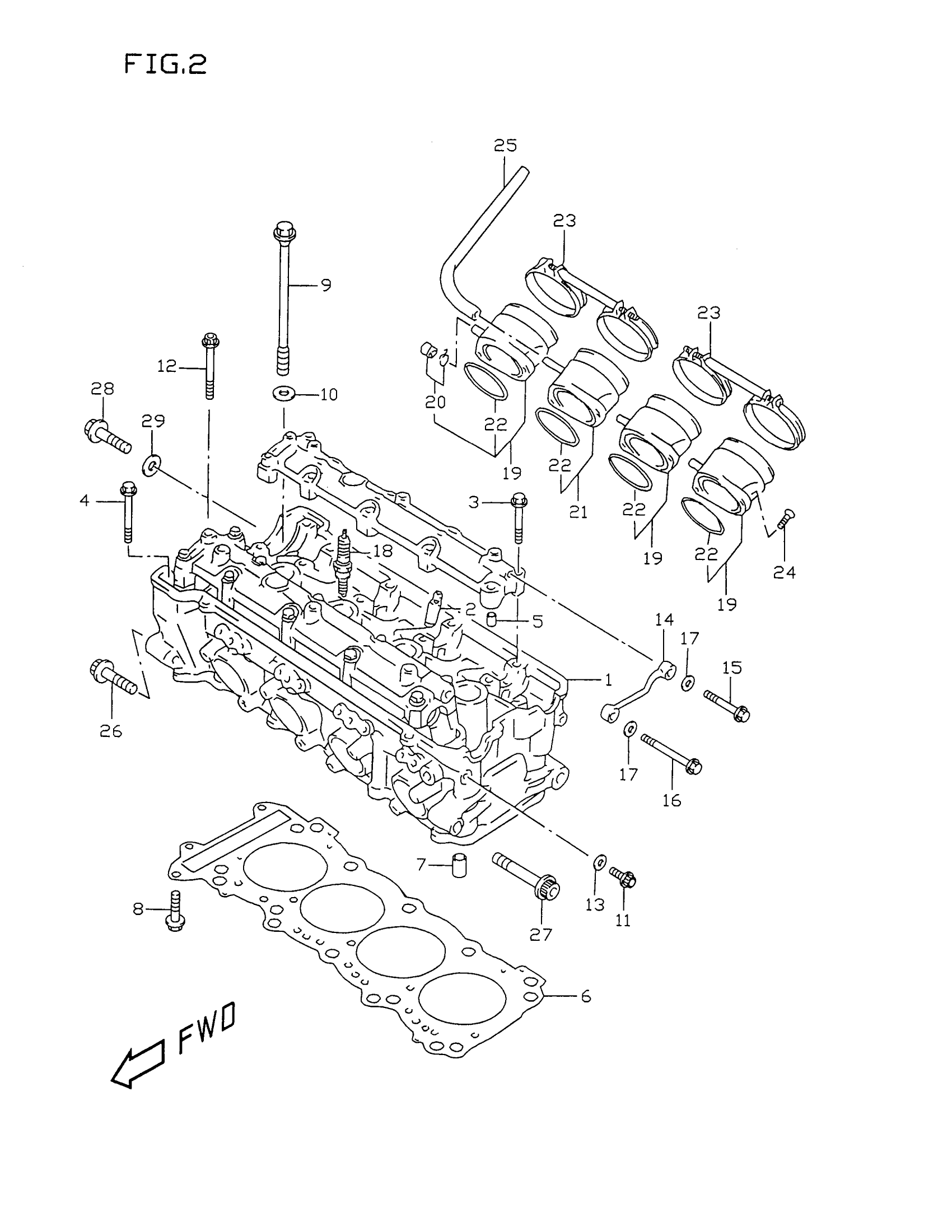

Suzuki GSX-R750X (1999) CYLINDER HEAD (MODEL T/V) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 11100-33E00.

11100-33E20

Unavailable

1

HEAD ASSY, CYLINDER | E33; Includes Item(s) 2 - 5 This part replaces 11100-33E10.

11100-33E30

Unavailable

2

GUIDE, VALVE (OS:0.3) This part replaces 11115-18D71.

11115-18D72

$34.63

3

BOLT (6X39)

09103-06026

$1.98

4

BOLT (6X45)

09103-06165

$3.03

5

PIN

09206-08007

$2.60

6

GASKET,CYLINDER | 3 LAYERS This part replaces 11141-33E00.

11141-33E01

Unavailable

6

GASKET, CYLINDER HEAD | 4 LAYERS

11141-33E00-095

Unavailable

7

PIN

04211-11169

$1.78

8

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

9

BOLT (10X160)

09103-10272

$15.32

10

WASHER

09160-10082

$1.61

11

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$3.04

12

BOLT, RECTIFIER This part replaces 07120-06503.

07120-0650B

$3.70

13

GASKET

09168-06023

$2.35

14

PIPE,OIL This part replaces 11131-33E00.

11131-33E01

$46.70

15

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

16

BOLT This part replaces 01550-06453.

01550-0645A

$2.41

17

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

18

PLUG SPARK (CR9E)

09482-00458

$6.47

18

SPARK PLUG (DENSO,U27ESR-N)

09482-00459

$6.09

18

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

$6.73

18

SPARK PLUG (NGK,CR10E) | OPT

09482-00460

$6.47

18

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

$6.09

18

SPARK PLUG (DENSO,U31ESR-N) | OPT

09482-00461

$12.62

19

PIPE ASSY,INTAK | MODEL T This part replaces 13101-33E00.

13101-33E01

Unavailable

19

PIPE ASSY,INTAK | MODEL V; Includes Item(s) 20 This part replaces 13105-33E00.

13105-33E01

Unavailable

20

CAP | MODEL V

13150-19C00

Unavailable

21

PIPE ASSY,INTAK | Includes Item(s) 22 This part replaces 13103-33E00.

13103-33E01

Unavailable

22

O RING (D:2.4,ID:44.0)

09280-44007

$11.98

23

CLAMP

13170-33E00

Unavailable

24

SCREW,6X16 This part replaces 09120-06010.

09120-06010-XC0

$2.28

25

HOSE,5X10X600 | L:600->480E33:SEE FIG.18B This part replaces 09355-50105-600.

44421-13ER0

$10.06

26

BOLT This part replaces 07120-10453.

07120-1045B

$4.41

27

BOLT This part replaces 07120-10553.

07120-1055B

$4.41

28

BOLT, CYL HEAD SIDE FACE

11161-33E00

$9.89

29

WASHER

11191-13E00

$4.54

30

REFER TO FIG.2A(B-5) FOR

SPECIAL NOTE

Unavailable
