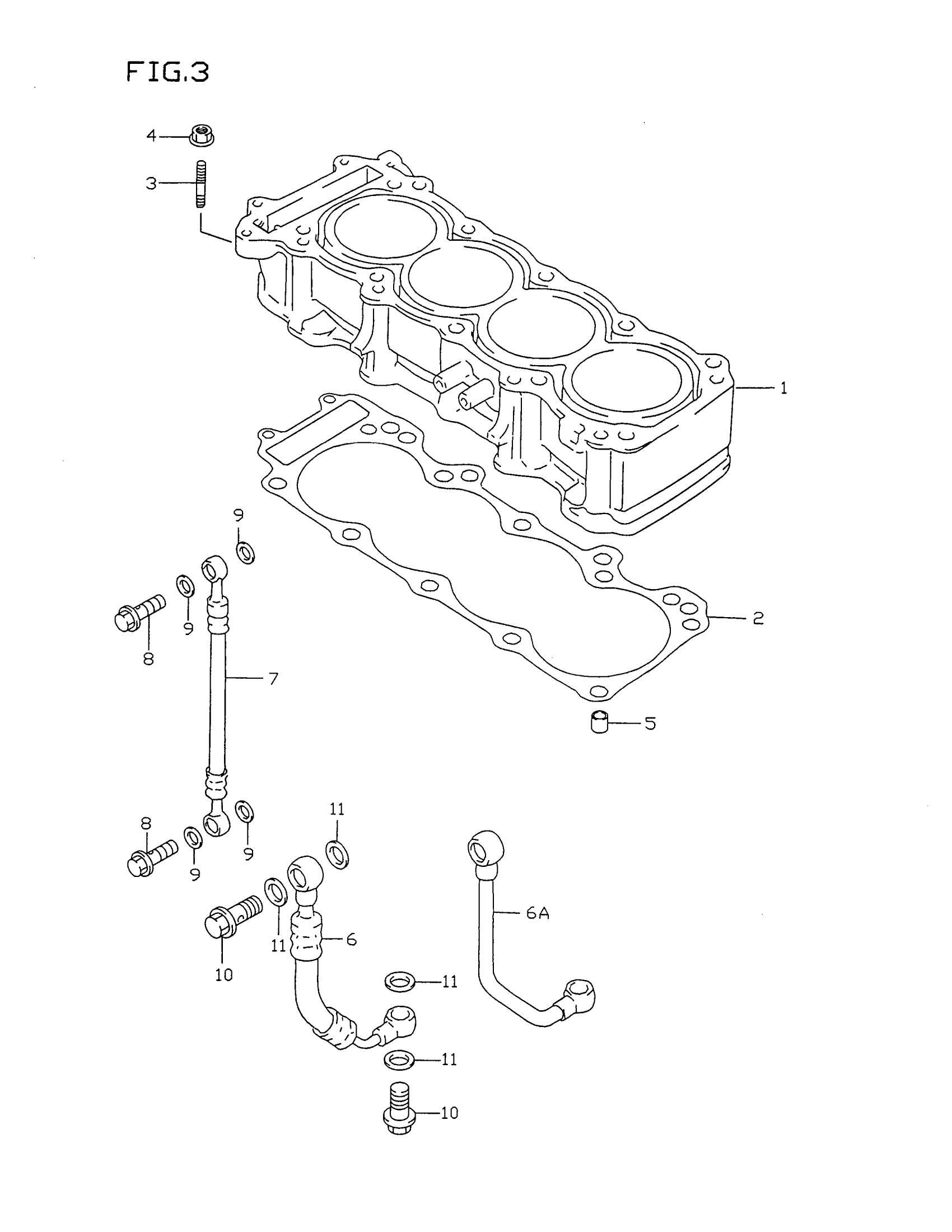

Suzuki GSX-R750X (1999) CYLINDER Diagram

#

Description
Price

1

CYLINDER | MODEL T/V This part replaces 11211-33E00.

11211-33E10

Unavailable

1

CYLINDER | MODEL W/X

11211-33E10

Unavailable

2

GASKET

11241-33E00

Unavailable

3

STUD BOLT This part replaces 01421-06203.

01421-0620A

$1.91

4

NUT This part replaces 08316-10063.

08316-1006B

$2.50

5

PIN

04211-11169

$1.78

6

HOSE, OIL RH | MODEL T/V/X

11281-33E00

Unavailable

6A

HOSE, OIL RH | MODEL W->11281-33E00 This part replaces 11280-33E50.

11281-33E00

Unavailable

7

HOSE, OIL LH

11282-33E00

Unavailable

8

UNION | MODEL T This part replaces 09360-10033.

09360-10062

$6.43

8

UNION | MODEL V/W/X This part replaces 09360-10040.

09360-10062

$6.43

9

GASKET

09168-10007

$1.71

10

BOLT, OIL GALLY HOSE UNION

09360-14012

$10.86

11

.GASKET (14X20X1.5)

09168-14015

$2.03
