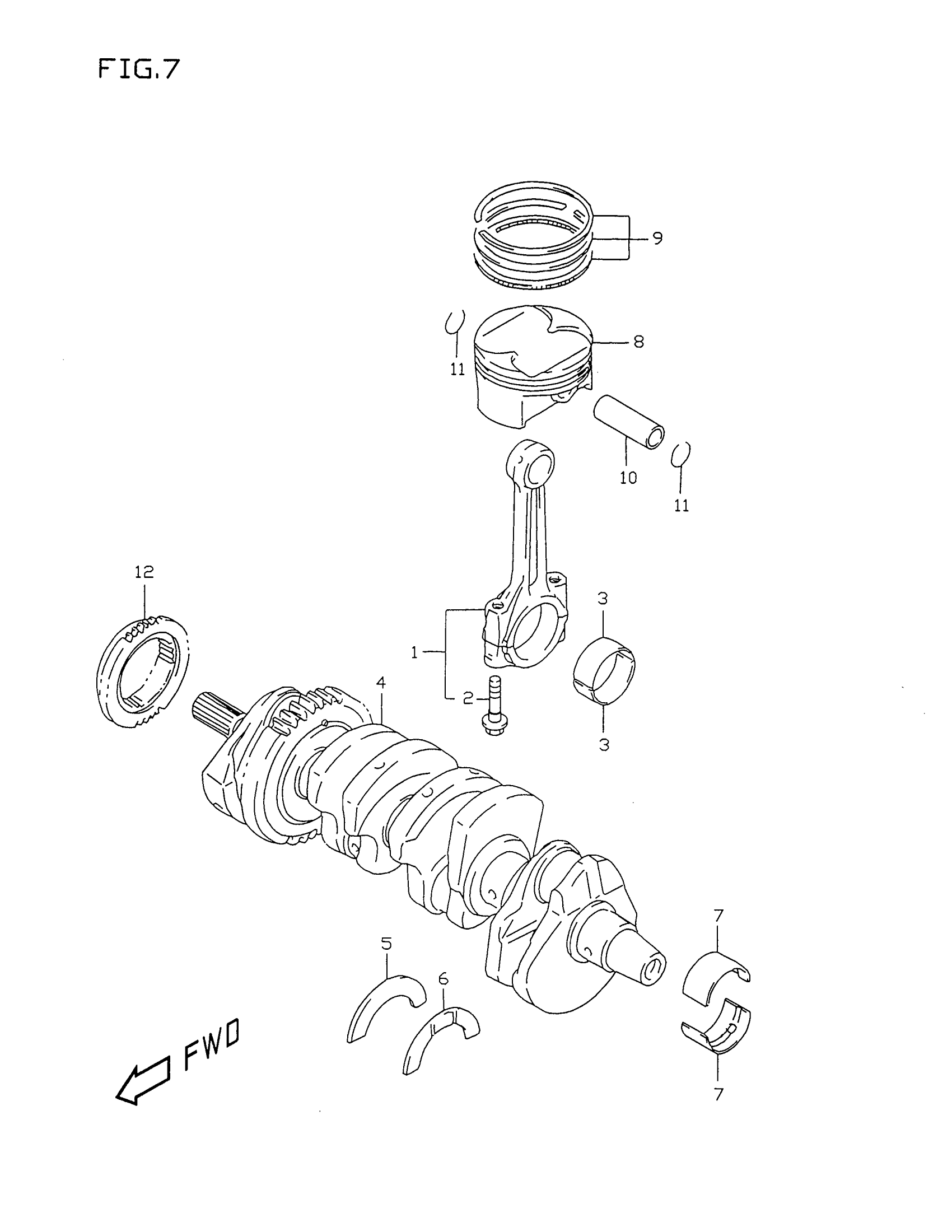

Suzuki GSX-R750X (1999) CRANKSHAFT Diagram

#

Description
Price

1

CONNROD ASSY | MODEL T This part replaces 12160-33E01.

12160-33E11

Unavailable

1

CONNROD ASSY | MODEL V This part replaces 12160-33E02.

12160-33E11

Unavailable

1

CONNROD ASSY | MODEL W/X; Includes Item(s) 2 This part replaces 12160-33E10.

12160-33E11

Unavailable

2

BOLT

12163-33E00

$17.34

3

BEARING, CRANK PIN (GREEN)

12164-17E01-0A0

$16.98

3

BEARING, CRANK PIN (BLACK)

12164-17E01-0B0

$16.98

3

BEARING, CRANK PIN (BROWN)

12164-17E01-0C0

$14.45

3

BEARING, CRANK PIN (YELLOW)

12164-17E01-0D0

$17.65

4

CRANKSHAFT SET | MODEL T/V

12000-33830

Unavailable

4

CRANKSHAFT SET | MODEL W/X; Includes Item(s) 5 - 6

12000-33840

Unavailable

5

BEARING, THRUST RH (GREEN)

12228-17E00-0D0

$9.50

6

BEARING, THRUST LH (RED)

12228-17E00-0A0

$11.38

6

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.69

6

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.69

6

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$9.50

6

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$11.38

6

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$11.60

7

BEARING, CRANKSHAFT (GREEN) | MODEL T/V

12229-31E50-0A0

Unavailable

7

BEARING, CRANKSHAFT (BLACK) | MODEL T/V

12229-31E50-0B0

Unavailable

7

BEARING, CRANKSHAFT (BROWN) | MODEL T/V

12229-31E50-0C0

Unavailable

7

BEARING, CRANKSHAFT (YELLOW) | MODEL T/V

12229-31E50-0D0

$18.82

7

BEARING, CRANKSHAFT (GREEN) | MODEL W/X

12229-33E00-0A0

Unavailable

7

BEARING, CRANKSHAFT (BLACK) | MODEL W/X

12229-33E00-0B0

Unavailable

7

BEARING, CRANKSHAFT (BROWN) | MODEL W/X

12229-33E00-0C0

Unavailable

7

BEARING, CRANKSHAFT (YELLOW) | MODEL W/X

12229-33E00-0D0

Unavailable

8

PISTON | MODEL T This part replaces 12111-33E01-0F0.

12111-33E02-0F0

Unavailable

8

PISTON | MODEL V

12111-33E02-0F0

Unavailable

8

PISTON | MODEL W/X

12111-33E10-0F0

Unavailable

9

RING SET, PISTON | MODEL T/V

12140-33E00

Unavailable

9

RING SET, PISTON | MODEL W/X

12140-33E20

Unavailable

10

PIN, PISTON | MODEL T This part replaces 12151-33E00.

12151-33E02

$13.44

10

PIN, PISTON | MODEL V This part replaces 12151-33E01.

12151-33E02

$13.44

10

PIN, PISTON | MODEL W/X

12151-33E02

$13.44

11

CIRCLIP | MODEL T/V

09381-16004

$1.58

11

CIRCLIP | MODEL W/X

09381-16001

$1.67

12

SPROCKET, CAM CHAIN | MODEL T/V

12731-33E00

Unavailable

12

SPROCKET, CAM CHAIN | MODEL W/X

12731-33E10

Unavailable
