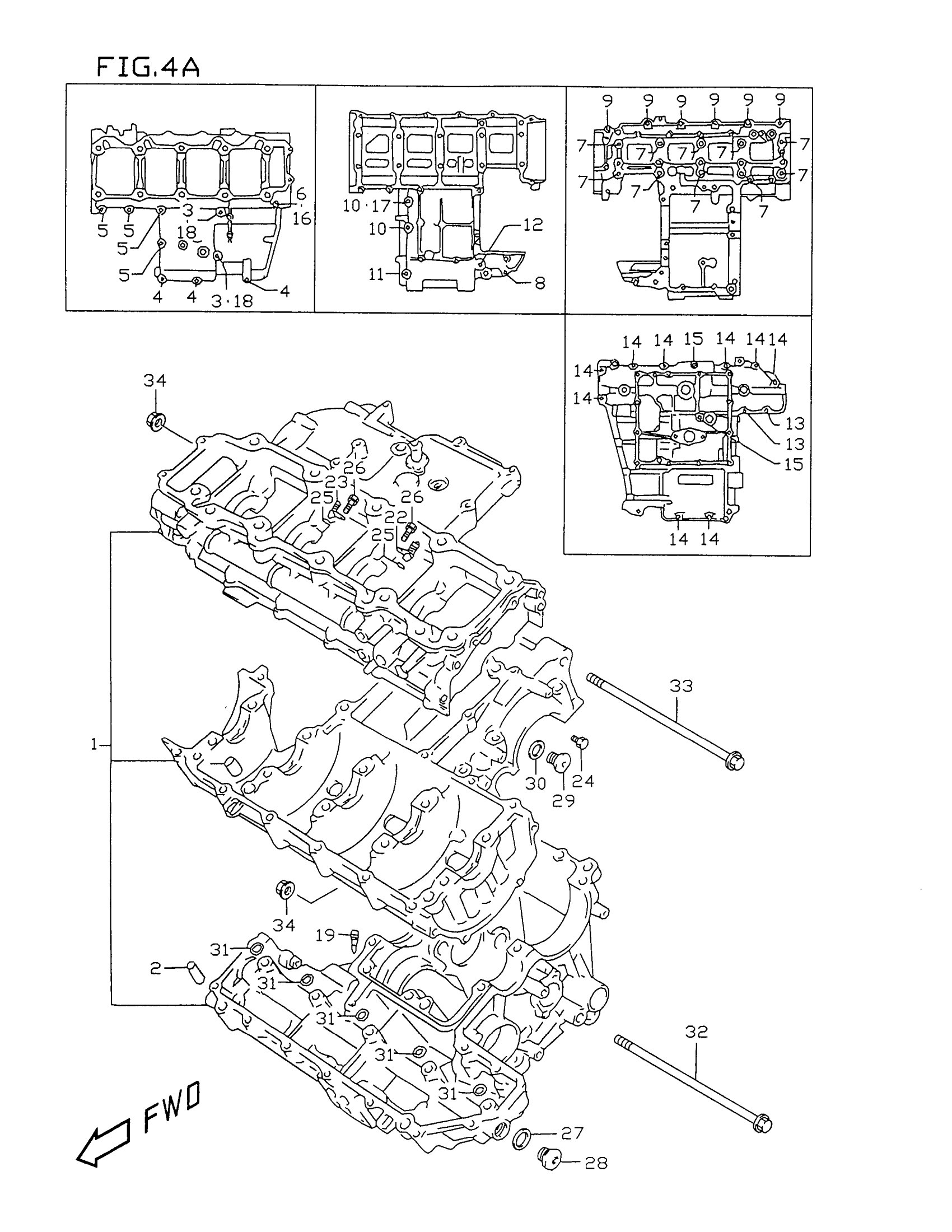

Suzuki GSX-R750X (1999) CRANKCASE (MODEL W/X) Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 21 This part replaces 11301-33860.

11301-33861

Unavailable

2

PIN,CRANKCASE

11319-33E50

$5.32

3

BOLT (8X120)

09106-08139

$13.45

4

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

5

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

6

BOLT This part replaces 01547-06803.

01547-0680B

$3.18

7

BOLT (9X95)

09103-09012

$8.76

8

BOLT This part replaces 01547-06453.

01547-0645B

$2.73

9

BOLT This part replaces 01547-06503.

01547-0650B

$2.75

10

BOLT This part replaces 07120-08603.

07120-0860B

$4.41

11

BOLT This part replaces 07120-08603.

07120-0860B

$4.41

12

BOLT This part replaces 07130-08803.

07130-0880B

Unavailable

13

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

14

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

15

BOLT This part replaces 01547-06903.

01547-0690B

$3.20

16

GASKET (5.8X11X1.2)

09168-06024

$2.20

17

GASKET (8.2X14X1)

09168-08016

$1.65

18

GASKET (8.2X14X1)

09168-08016

$1.65

19

JET

09493-28012

$16.87

20

BEARING, THRUST RH (GREEN) | SEE ILLUSTRATION ON FIG.7

12228-17E00-0D0

$9.50

21

BEARING, THRUST LH (RED) | SEE ILLUSTRATION ON FIG.7

12228-17E00-0A0

$11.38

21

BEARING,THRUST LH (BLACK)

12228-17E00-0B0

$9.69

21

BEARING,THRUST LH (BLUE)

12228-17E00-0C0

$9.69

21

BEARING,THRUST LH (GREEN)

12228-17E00-0D0

$9.50

21

BEARING,THRUST LH (YELLOW)

12228-17E00-0E0

$11.38

21

BEARING,THRUST LH (WHITE)

12228-17E00-0F0

$11.60

22

JET,PISTON COOLING

11390-34E00

$21.52

23

JET,PISTON COOLING

11390-34E10

$21.52

24

JET, MAGNETO COOLING

11393-33E01

$13.85

25

O RING (D:1.2,ID:4.0)

09280-04004

$1.91

26

BOLT, PISTON COOLING

09106-06075

$2.48

27

GASKET

09168-16002

$1.91

28

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

$4.64

29

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

30

GASKET

09168-14002

$2.26

31

O RING (D:1.9,ID:7.8)

09280-08012

$3.68

32

BOLT (10X205)

09103-10145

$17.09

33

BOLT (10X185)

09103-10219

Unavailable

34

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55
