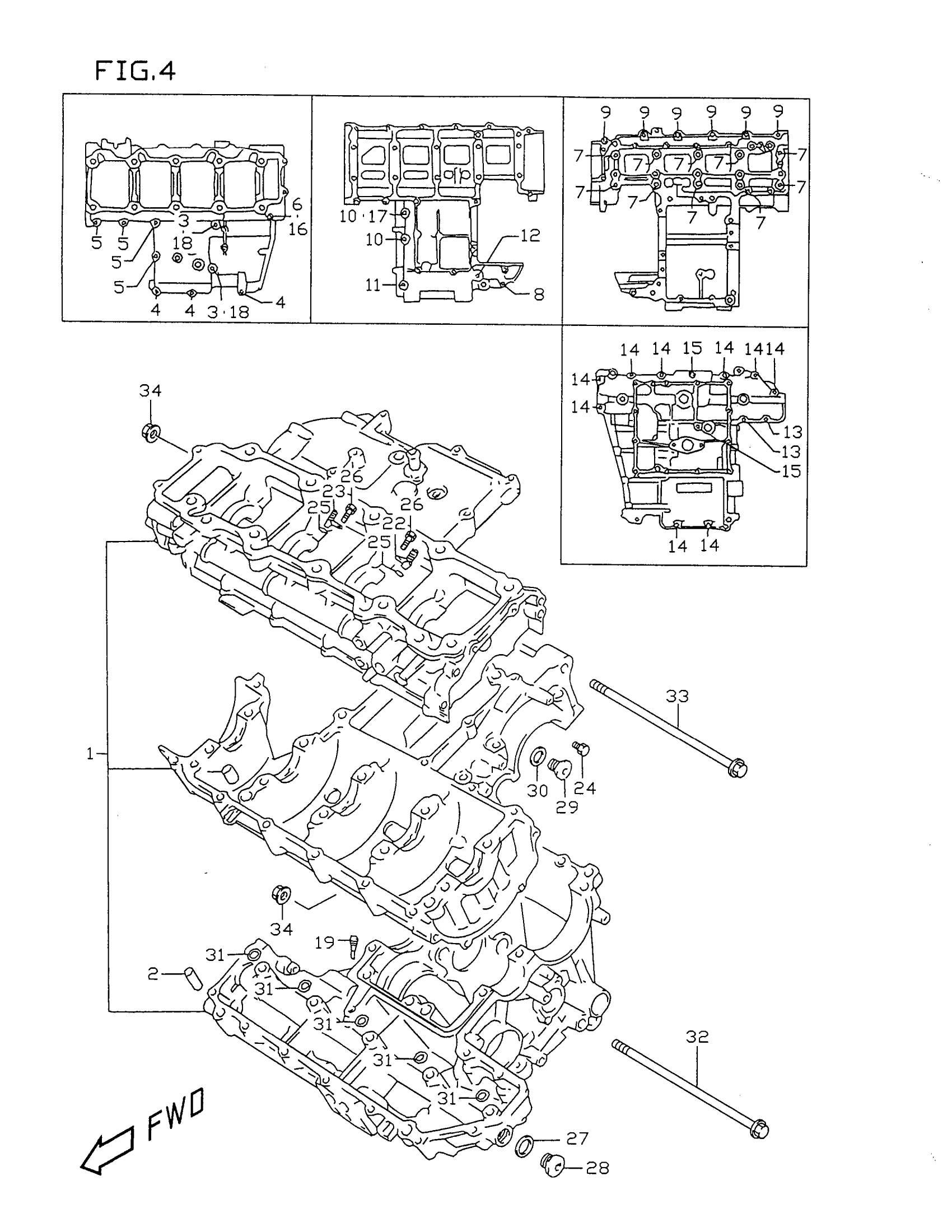

Suzuki GSX-R750X (1999) CRANKCASE (MODEL T/V) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 11301-33830.

11301-33870

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL V This part replaces 11301-33831.

11301-33870

Unavailable

1

CRANKCASE SET | MODEL T E33 This part replaces 11301-33840.

11301-33841

Unavailable

1

CRANKCASE SET | MODEL V E33; Includes Item(s) 2 - 21

11301-33841

Unavailable

2

PIN

11319-33E00

Unavailable

3

BOLT (8X120)

09103-08109

$2.92

4

BOLT This part replaces 01550-06353.

01550-0635A

$2.31

5

BOLT This part replaces 01550-06403.

01550-0640A

$2.43

6

BOLT This part replaces 01550-06803.

01550-0680B

$3.80

7

BOLT (9X95)

09103-09008

$6.95

8

BOLT This part replaces 01550-06453.

01550-0645A

$2.42

9

BOLT This part replaces 01550-06503.

01550-0650A

$3.10

10

BOLT This part replaces 07120-08603.

07120-0860B

$4.04

11

BOLT This part replaces 07130-08553.

07130-0855B

$5.17

12

BOLT This part replaces 07130-08803.

07130-0880B

Unavailable

13

BOLT This part replaces 01550-06303.

01550-0630A

$2.31

14

BOLT This part replaces 01550-06403.

01550-0640A

$2.43

15

BOLT This part replaces 01550-06903.

01550-0690B

Unavailable

16

GASKET | MODEL TMODEL V

09168-06024

$2.19

17

GASKET (8.2X14X1)

09168-08016

$1.64

18

GASKET (8.2X14X1)

09168-08016

$1.64

19

JET

09493-28012

$18.33

20

BEARING, THRUST RH (GREEN) | SEE ILLUSTRATION ON FIG.7

12228-17E00-0D0

$8.95

21

BEARING, THRUST LH (RED) | SEE ILLUSTRATION ON FIG.7

12228-17E00-0A0

$12.85

21

BEARING,THRUST LH (BLACK)

12228-17E00-0B0

$9.12

21

BEARING,THRUST LH (BLUE)

12228-17E00-0C0

$9.12

21

BEARING,THRUST LH (GREEN)

12228-17E00-0D0

$8.95

21

BEARING,THRUST LH (YELLOW)

12228-17E00-0E0

$12.85

21

BEARING,THRUST LH (WHITE)

12228-17E00-0F0

$13.10

22

JET, PISTON COOLING RH | MODEL T

11391-33E00

Unavailable

22

JET,PISTON COOLING | MODEL V

11390-34E00

$24.28

23

JET, PISTON COOLING LH | MODEL T

11391-33E10

Unavailable

23

JET,PISTON COOLING | MODEL V

11390-34E10

$24.28

24

JET, MAGNETO COOLING | MODEL T This part replaces 11393-33E00.

11393-33E01

$15.63

24

JET, MAGNETO COOLING | MODEL V

11393-33E01

$15.63

25

O RING (D:1.2,ID:4.0)

09280-04004

$1.76

26

BOLT, PISTON COOLING

09106-06075

$2.50

27

GASKET

09168-16002

$1.89

28

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

$4.19

29

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.80

30

.GASKET (14X20X1.5) | MODEL T

09168-14015

$2.01

30

GASKET | MODEL V

09168-14002

$2.83

31

O RING (D:1.9,ID:7.8)

09280-08012

$3.32

32

BOLT (10X200) | MODEL T

09103-10138

Unavailable

32

BOLT (10X205) | MODEL V

09103-10145

$15.65

33

BOLT (10X185)

09103-10219

Unavailable

34

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.21

35

REFER TO FIG.4A(B-9) FOR

SPECIAL NOTE

Unavailable
