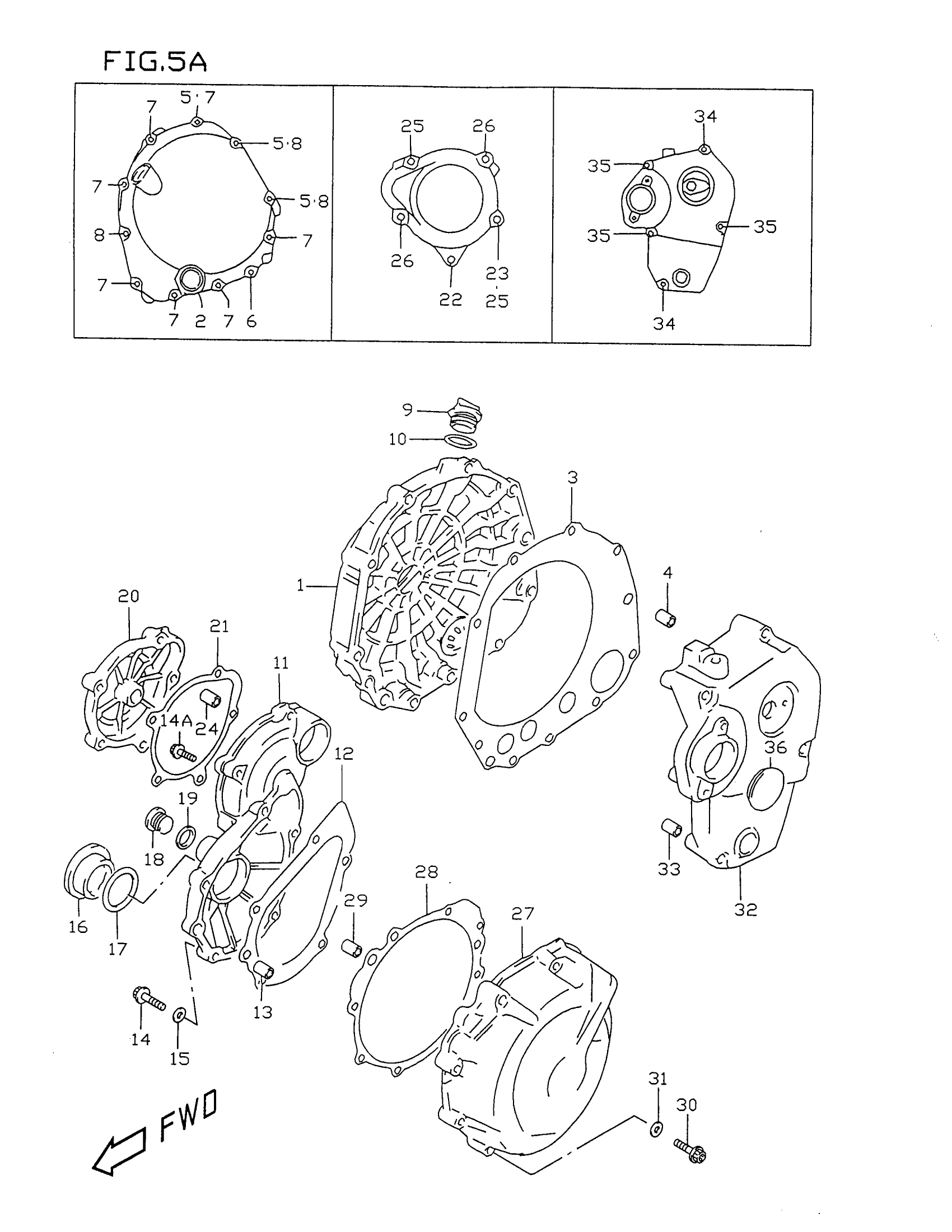

Suzuki GSX-R750X (1999) CRANKCASE COVER (MODEL W/X) Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-33E00

Unavailable

2

LENS, OIL LEVEL

11971-33210

$16.66

3

GASKET, CLUTCH COVER

11482-33E01

$15.44

4

PIN

04211-09189

$1.64

5

GASKET

09168-06024

$2.19

6

BOLT, CENTER This part replaces 07120-06253.

07120-0625A

$2.50

7

BOLT This part replaces 07120-06303.

07120-0630B

$3.19

8

BOLT This part replaces 07120-06403.

07120-0640B

$3.04

9

.PLUG This part replaces 09259-20008.

09259-20008-XC0

$6.76

10

O RING (D:3.1,ID:16.8)

09280-17003

$1.64

11

COVER, STARTER CLUTCH

11381-33E51

Unavailable

12

GASKET | MODEL W This part replaces 11491-34E00.

11491-33E02

$7.99

12

GASKET | MODEL X

11491-33E02

$7.99

13

PIN

04211-09149

$1.64

14

BOLT, CENTER This part replaces 07120-06253.

07120-0625A

$2.50

14A

BOLT This part replaces 07120-06353.

07120-0635B

$3.10

15

GASKET

09168-06024

$2.19

16

PLUG, SHAFT HOLE

09259-36016-20H

$12.45

17

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

18

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

$4.19

19

GASKET

09168-16002

$1.89

20

CAP, STARTER IDLE GEAR

11382-33E00

$100.72

21

GASKET

11492-33E00

$6.61

22

BOLT This part replaces 07120-06553.

07120-0655B

$4.45

23

GASKET, BOLT

09168-06024

$2.19

24

PIN

04211-09149

$1.64

25

BOLT, CENTER This part replaces 07120-06253.

07120-0625A

$2.50

26

BOLT This part replaces 07120-06353.

07120-0635B

$3.10

27

COVER, MAGNETO

11351-33E01

Unavailable

28

GASKET

11483-33E01

$14.98

29

PIN

04211-09149

$1.64

30

BOLT This part replaces 07120-06303.

07120-0630B

$3.19

31

GASKET

09168-06024

$2.19

32

COVER, ENGINE SPROCKET

11361-33E03

Unavailable

33

PIN

04211-09149

$1.64

34

BOLT This part replaces 07130-06553.

07130-0655B

$4.45

35

BOLT This part replaces 07130-06653.

07130-0665B

$3.47

36

CAP, CLUTCH RELEASE ADJUST

09250-30003

$3.52
