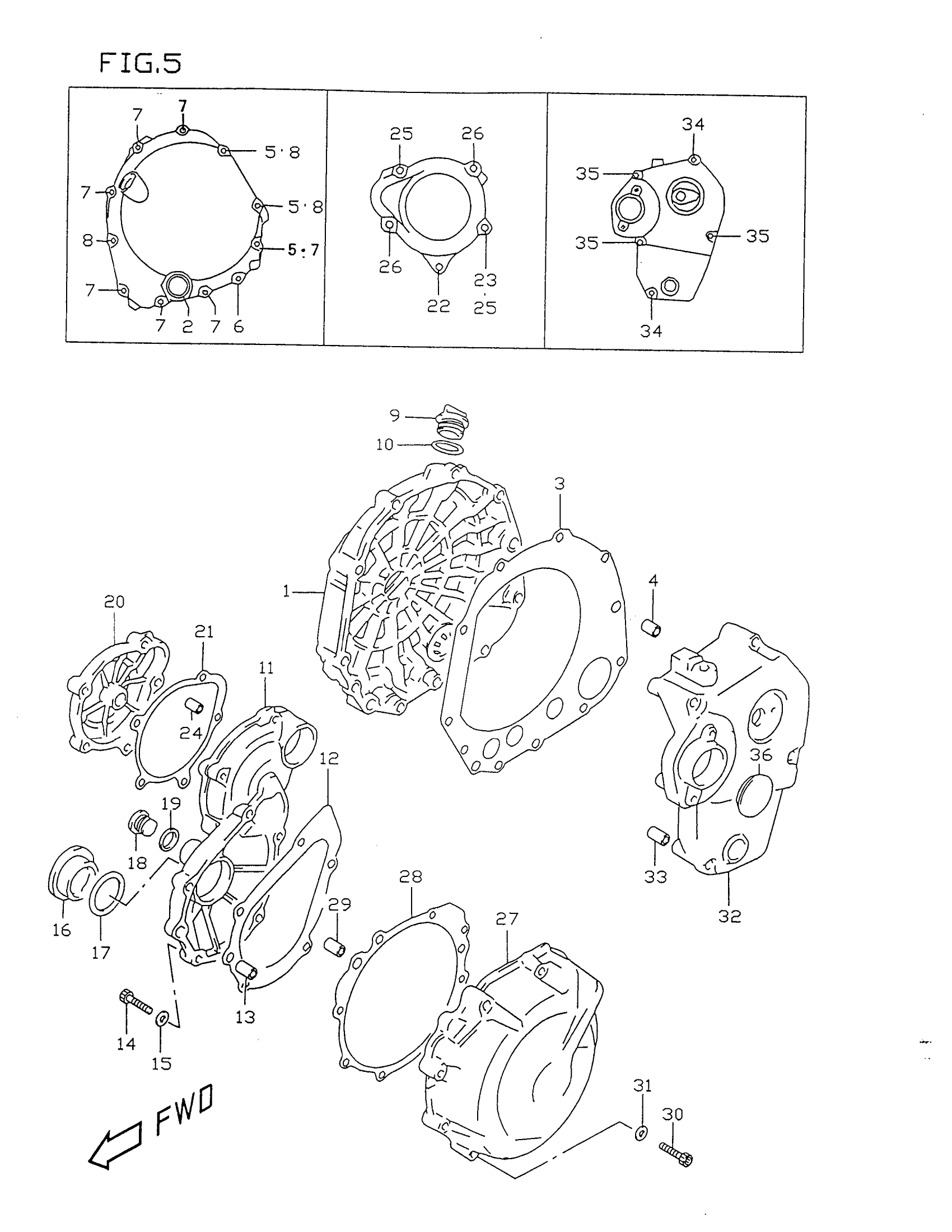

Suzuki GSX-R750X (1999) CRANKCASE COVER (MODEL T/V) Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-33E00

Unavailable

2

LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET, CLUTCH COVER

11482-33E01

$16.86

4

PIN

04211-09189

$1.65

5

GASKET

09168-06024

$2.20

6

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

7

BOLT This part replaces 07130-06303.

07130-0630B

$3.37

8

BOLT, STATOR This part replaces 07130-06403.

07130-0640B

$3.38

9

.PLUG This part replaces 09259-20008.

09259-20008-XC0

$7.50

10

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

11

COVER, STARTER CLUTCH

11381-33E02

Unavailable

12

GASKET | MODEL T This part replaces 11491-33E01.

11491-33E02

$8.73

12

GASKET | MODEL V

11491-33E02

$8.73

13

PIN

04211-09149

$1.65

14

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

15

GASKET

09168-06024

$2.20

16

PLUG, SHAFT HOLE

09259-36016-20H

$13.80

17

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

18

PLUG, TDC

09248-16008

$5.72

19

GASKET

09168-16002

$1.91

20

CAP, STARTER IDLE GEAR

11382-33E00

$89.67

21

GASKET

11492-33E00

$7.22

22

BOLT This part replaces 07130-06553.

07130-0655B

$4.10

23

GASKET, BOLT

09168-06024

$2.20

24

PIN

04211-09149

$1.65

25

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

26

BOLT This part replaces 07130-06353.

07130-0635B

$3.37

27

COVER, MAGNETO | MODEL T This part replaces 11351-33E00.

11351-33E01

Unavailable

27

COVER, MAGNETO | MODEL V

11351-33E01

Unavailable

28

GASKET

11483-33E01

$13.28

29

PIN

04211-09149

$1.65

30

BOLT This part replaces 07130-06303.

07130-0630B

$3.37

31

GASKET, BOLT | MODEL TMODEL V

09168-06024

$2.20

32

COVER, ENGINE SPROCKET | MODEL T This part replaces 11361-33E00.

11361-33E03

Unavailable

32

COVER, ENGINE SPROCKET | MODEL V This part replaces 11361-33E01.

11361-33E03

Unavailable

33

PIN

04211-09149

$1.65

34

BOLT This part replaces 07130-06553.

07130-0655B

$4.10

35

BOLT This part replaces 07130-06653.

07130-0665B

$3.79

36

CAP, CLUTCH RELEASE ADJUST

09250-30003

$3.89

37

REFER TO FIG.5A(B-13) FOR

SPECIAL NOTE

Unavailable
