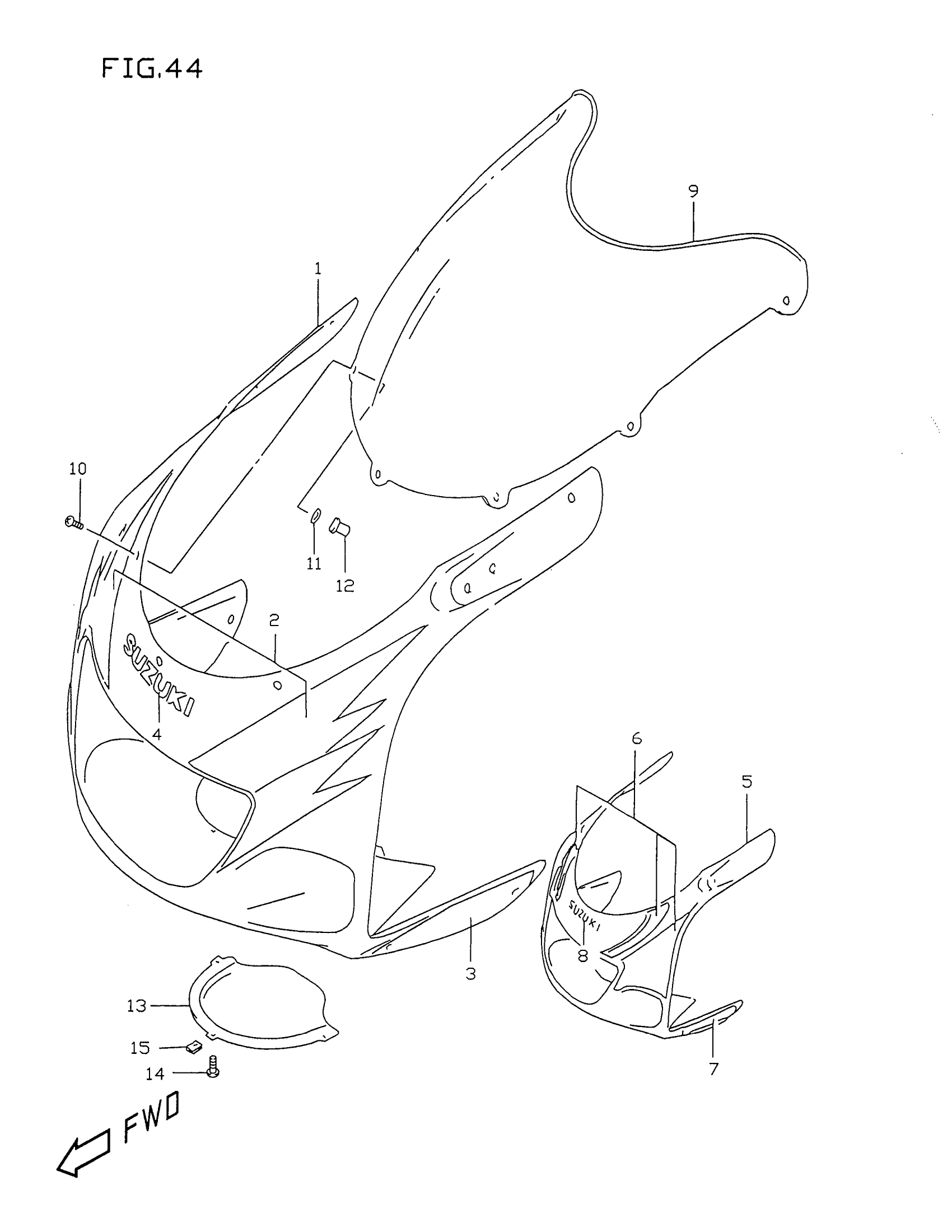

Suzuki GSX-R750X (1999) COWLING BODY (MODEL T) Diagram

#

Description
Price

1

COWLING ASSY, BODY (BROWN) | FOR F1S; Includes Item(s) 2 - 4

94400-33E20-29F

Unavailable

2

TAPE SET, FRONT

68270-33E20-Z88

Unavailable

3

TAPE SET, SIDE (YELLOW)

68280-33E10-Z66

Unavailable

4

EMBLEM, SUZUKI (SILVER)

68185-05C10-0FP

Unavailable

5

COWLING ASSY, BODY (WHITE) | FOR L99; Includes Item(s) 6 - 8

94400-33E00-0JW

Unavailable

6

TAPE SET, FRONT

68270-33E00-F3U

Unavailable

7

TAPE SET, SIDE (BLUE)

68280-33E00-1LF

Unavailable

8

EMBLEM, SUZUKI (BLUE)

68185-05C10-1LF

Unavailable

9

WIND SCREEN

94611-33E00

Unavailable

10

SCREW

09139-05025

$2.05

11

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

12

NUT

09159-05019

$7.14

13

LID, LOWER This part replaces 94419-33E00.

94419-33E01

Unavailable

14

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

15

NUT

09148-05038

$1.97

16

COLOR :

SPECIAL NOTE

Unavailable
