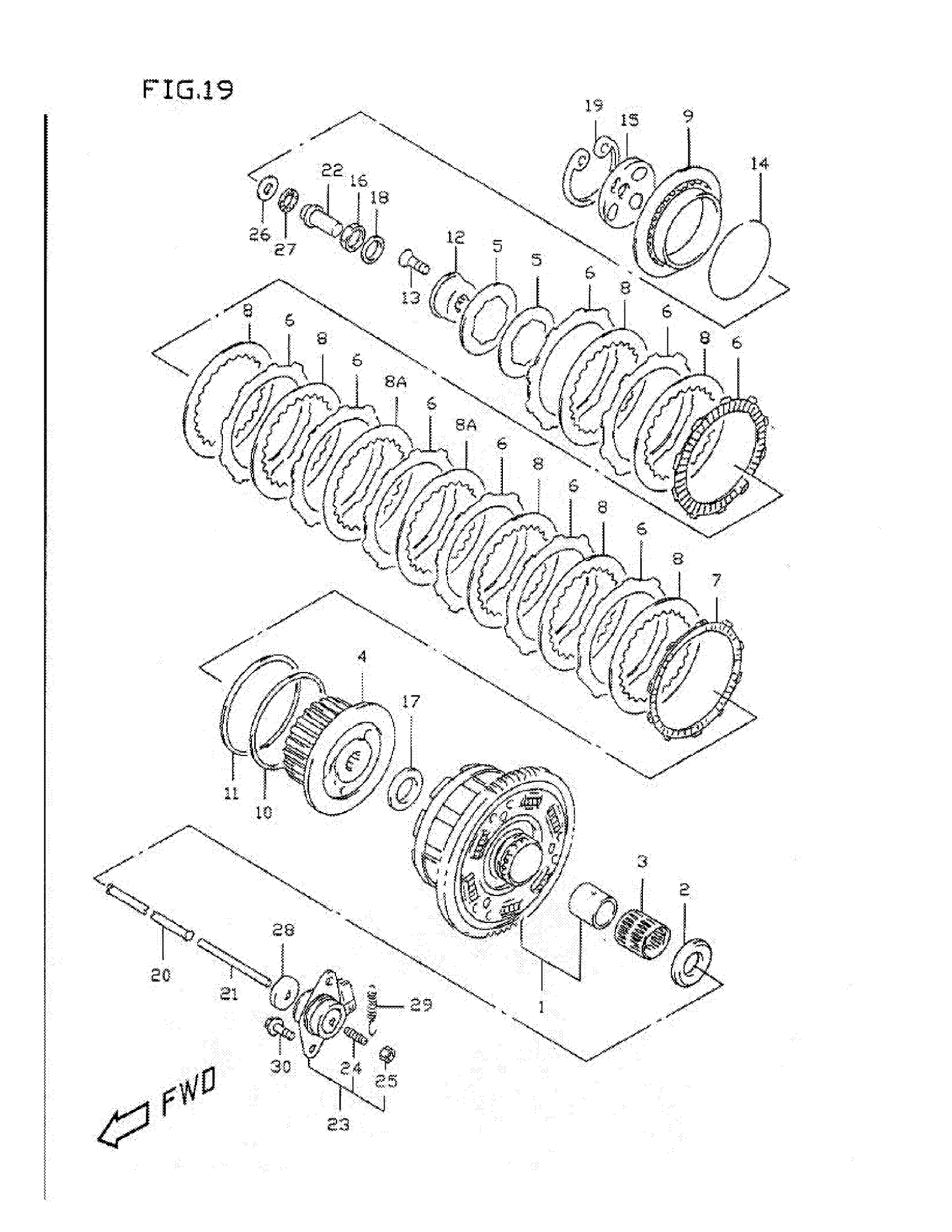

Suzuki GSX-R750X (1999) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | MODEL T/V This part replaces 21200-31870.

21200-31890

Unavailable

1

GEAR ASSY, PRIMARY DRIVEN | MODEL W/X

21200-31890

Unavailable

2

WASHER (25X54X2.5) | MODEL T

09160-25067

Unavailable

2

WASHER (25.1X54X2.5) | MODEL V/W/X

09160-25037

$8.85

3

BEARING (35X40X35.8)

09263-35017

$40.54

4

HUB, CLUTCH SLEEVE | MODEL T/V/W This part replaces 21410-31E20.

21410-31E50

$143.92

4

HUB, CLUTCH SLEEVE | MODEL X

21410-31E50

$143.92

5

SPRING, CLUTCH

21413-31E20

$10.28

6

PLATE, CLUTCH DRIVE NO.1 | MODEL T/V~F.NO.100724

21441-31E00

$28.38

6

PLATE, CLUTCH DRIVE NO.1 | MODEL VF.NO.100725~ This part replaces 21441-31E30.

21441-31E50

$22.90

6

PLATE, CLUTCH DRIVE NO.1 | MODEL W/X

21441-31E50

$22.90

7

PLATE, CLUTCH DRIVE,NO.2

21442-31E00

$39.23

8

PLATE, CLUTCH DRIVEN,NO.1 | T:1.6

21451-31E00

$10.53

8A

PLATE, CLUTCH DRIVEN,NO.2 | T:2.0

21451-31E10

$11.28

9

DISK, CLUTCH PRESSURE | MODEL T/V

21462-31E20

$62.52

9

DISK, CLUTCH PRESSURE | MODEL W/X This part replaces 21462-31E50.

21462-31E20

$62.52

10

SEAT, CLUTCH PLATE

21471-31E20

$14.20

11

WASHER, CLUTCH PLATE | MODEL T/V/W

21472-31E20

Unavailable

11

WASHER, CLUTCH PLATE | MODEL X

21472-31E01

$17.75

12

HOLDER, CLUTCH SPRING

21611-31E20

Unavailable

13

SCREW, CLUTCH SPRING

21614-31E20

$2.67

14

SEAT, CLUTCH SPRING

21623-31E20

$5.63

15

LIFTER, CLUTCH RELEASE

21463-40C01

Unavailable

16

NUT, CLUTCH SLEEVE HUB

09159-24010

$13.22

17

.WASHER (25X50X2.5) | MODEL T 25X50X2.5

09160-25056

$11.61

17

WASHER, CLUTCH SLEEVE THR | MODEL V/W/X

08211-25505

$9.50

18

WASHER, CLUTCH WAVE | 24.2X35X2

09164-24006

$3.76

19

CIRCLIP, CLUTCH PRESSURE This part replaces 09381-84002.

09381-84003

$12.22

20

ROD, CLUTCH PUSH RH

23110-27A00

$21.09

21

ROD, CLUTCH PUSH LH

23111-34C00

$13.74

22

PIECE, CLUTCH PUSH | MODEL T/V

23121-31E00

$23.92

22

PIECE, PUSH | MODEL W/X This part replaces 23121-31E10.

23121-31E00

$23.92

23

SCREW ASSY, CLUTCH RELEASE | MODEL T/V~F.NO.100724

23200-31300

Unavailable

23

SCREW ASSY, CLUTCH RELEASE | MODEL VF.NO.100725~MODEL W/X; Includes Item(s) 24 - 25

23200-20C00

Unavailable

24

SCREW (6X25)

09134-06010

$3.12

25

.NUT

08310-00067

$2.13

26

WASHER, CLUTCH PUSH | 15.5X28X1

09160-15045

$3.89

27

BEARING, CLUTCH PUSH | 15X28X2

09263-15003

$8.29

28

SEAL, CLUTCH PUSH ROD | 6X34X5.5

09285-06015

$7.98

29

SPRING, CLUTCH RELEASE

09443-09044

$3.37

30

BOLT This part replaces 01550-06163.

01550-0616A

$1.97
