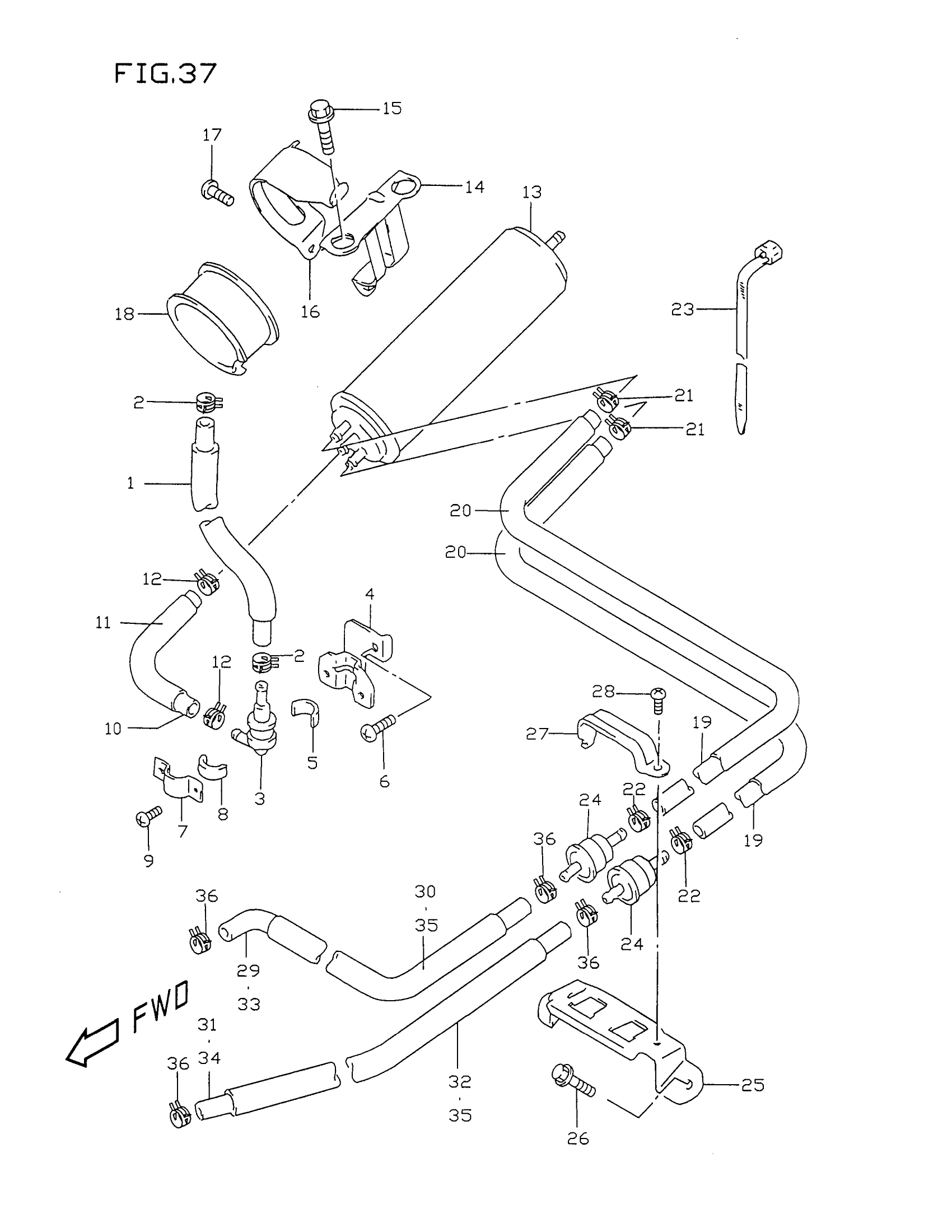

Suzuki GSX-R750X (1999) CANISTER (E33) Diagram

#

Description
Price

1

HOSE, TANK & VALVE (L:600->50)

09355-54116-600

$12.06

2

CLIP

09401-11413

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

BRACKET, BREATHER VALVE | MODEL T

44890-33E00

Unavailable

4

BRACKET, BREATHER VALVE | MODEL V/W/X; Includes Item(s) 5

44890-33E01

Unavailable

5

CUSHION (10X30X2)

44894-24A00

$1.72

6

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

7

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 8

44892-24A00

$4.52

8

CUSHION (10X30X2)

44894-24A00

$1.72

9

SCREW This part replaces 02142-04083.

02142-0408B

$1.70

10

HOSE, CHARGE (L:600->380)

09355-54116-600

$12.06

11

PROTECTOR, CHARGE (L:600->330)

09351-14152-600

$10.62

12

CLIP

09401-11413

$2.26

13

CANISTER ASSY CHARCOAL

17210-26E00

$324.10

14

BRACKET, CANISTER

44880-33E00

Unavailable

15

BOLT, BRACKET

09116-06168

$2.50

16

HOLDER, CANISTER

44882-33E00

Unavailable

17

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

18

CUSHION CANISTER

44883-26E00

Unavailable

19

HOSE, PURGE (L:600->350)

09359-54111-600

$25.80

20

PROTECTOR, PURGE (L:600->310)

09351-14152-600

$10.62

21

CLIP This part replaces 09401-11407.

09401-11415

$2.23

22

CLIP

09401-11413

$2.26

23

CLAMP

09407-18402

$2.19

23

CLAMP

09407-14407

$3.57

24

VALVE, PURGE

44250-48B00

Unavailable

25

BRACKET, PURGE VALVE

44885-33E00

Unavailable

26

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

27

HOLDER, PURGE VALVE

44884-31E00

Unavailable

28

SCREW This part replaces 02112-05083.

02112-0508A

$1.49

29

HOSE, CARB RH (L:600->250) | MODEL T/V

09355-54115-600

$14.59

30

PROTECTOR, RH (L:600->210) | MODEL T/V

09351-14152-600

$10.62

31

HOSE, CARB LH (L:600->290) | MODEL T/V

09355-54115-600

$14.59

32

PROTECTOR, LH (L:600->250) | MODEL T/V

09351-14152-600

$10.62

33

HOSE, CARB RH (L:600->440) | MODEL W/X

09355-54115-600

$14.59

34

HOSE, CARB LH (L:600->460) | MODEL W/X

09355-54115-600

$14.59

35

SPRING | MODEL W/X

09440-13053

Unavailable

36

CLIP

09401-11413

$2.26
