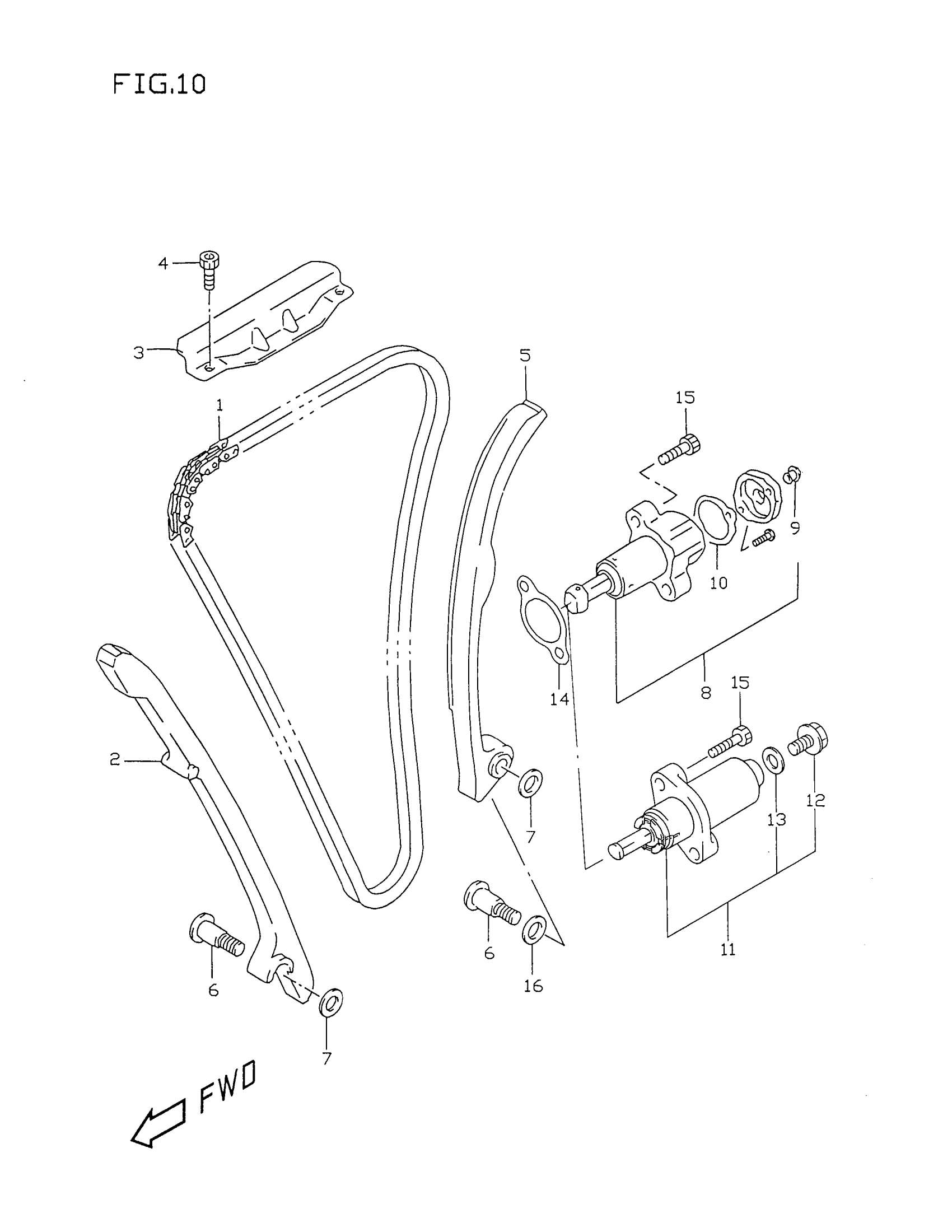

Suzuki GSX-R750X (1999) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE | MODEL T This part replaces 12760-38A10.

12760-38A11

$192.30

1

CHAIN, CAM SHAFT DRIVE (128LE | MODEL V/W/X

12760-38A11

$192.30

2

GUIDE,CAM CHAIN This part replaces 12771-33E00.

12771-33E01

Unavailable

3

GUIDE,CAM CHAIN This part replaces 12782-33E00.

12782-33E02

Unavailable

4

BOLT This part replaces 07130-06123.

07130-0612A

$2.50

5

TENSIONER, CAM CHAIN | MODEL T/V/W

12811-33E00

Unavailable

5

TENSIONER, CAM CHAIN | MODEL X

12811-33E20

Unavailable

6

BOLT

12812-26B02

$8.43

7

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

8

ADJUSTER ASSY, TENSIONER | MODEL T/V/W; Includes Item(s) 9 - 10

12830-01D12

$117.30

9

PLUG | MODEL T/V/W

12839-38200

$2.08

10

GASKET | MODEL T/V/W

12838-38200-H17

$3.17

11

ADJUSTER ASSY,T | MODEL X; Includes Item(s) 12 - 13 This part replaces 12830-33E00.

12830-33E01

Unavailable

12

PLUG | MODEL X

12834-33E00

$3.87

13

GASKET | MODEL X

12837-33E00

$2.70

14

.GASKET,TENSIONER ADJUSTER

12837-24A10

$3.25

15

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

16

WASHER | MODEL X

09164-11005

Unavailable
