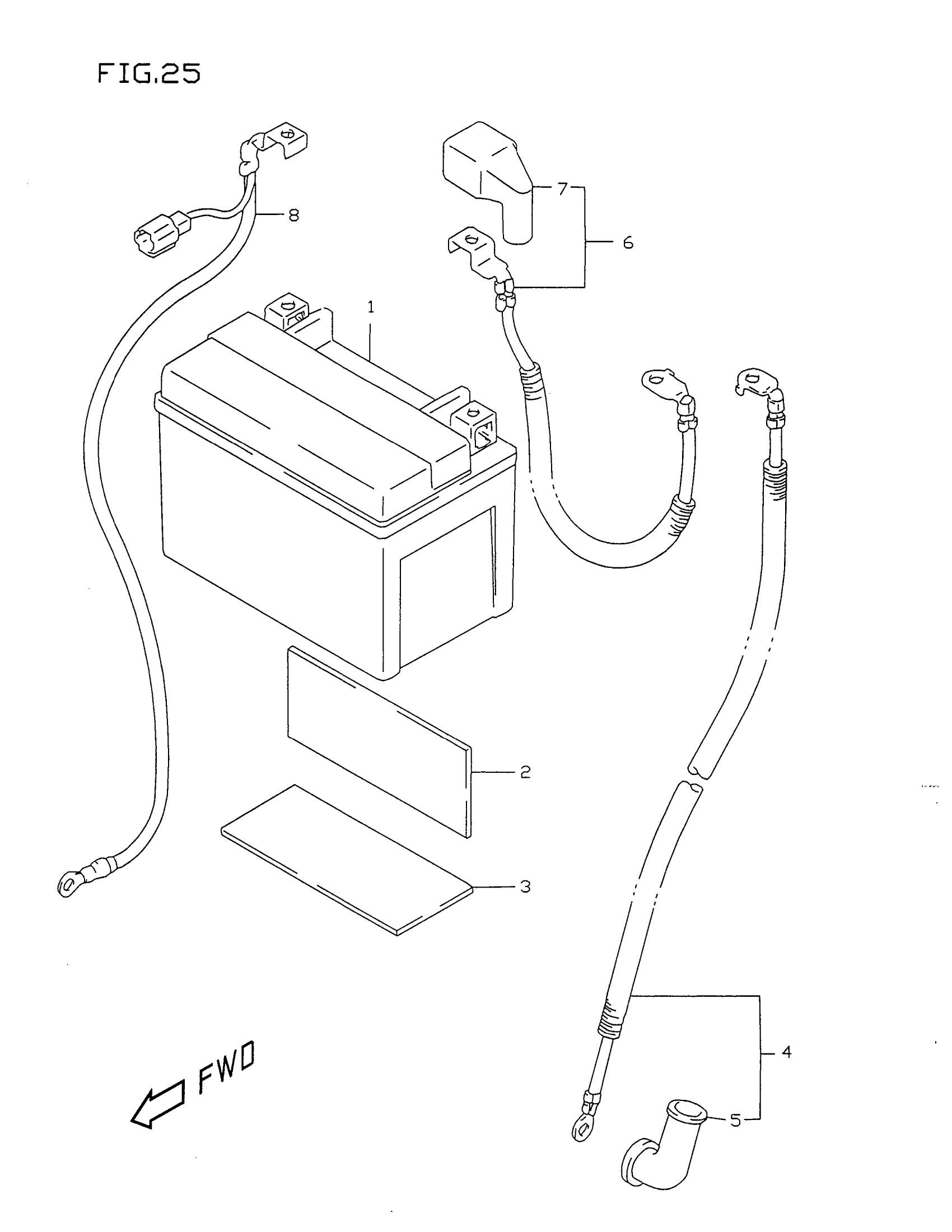

Suzuki GSX-R750X (1999) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (12V,8AH) | MODEL T/V This part replaces 33610-33E10.

33610-33E20

Unavailable

1

BATTERY ASSY (FTX9-BS,12V,8AH | MODEL T/V E28MODEL W/X

33610-33E20

Unavailable

2

CUSHION (170X95X3.0) | CUT AS REQUIRED PROFILE(20X90)(130X20)

33651-37000

$4.48

3

CUSHION (90X45X18)

33652-11D00

Unavailable

4

WIRE, STARTER MOTOR | Includes Item(s) 5

33810-33E00

Unavailable

5

CAP, STARTER MOTOR

31861-48B10

$6.55

6

WIRE, BATTERY PLUS LEAD | Includes Item(s) 7

33820-26E00

Unavailable

7

CAP, BATTERY PLUS

33624-43500

$5.50

8

WIRE, BATTERY MINUS

33860-46E00

Unavailable
