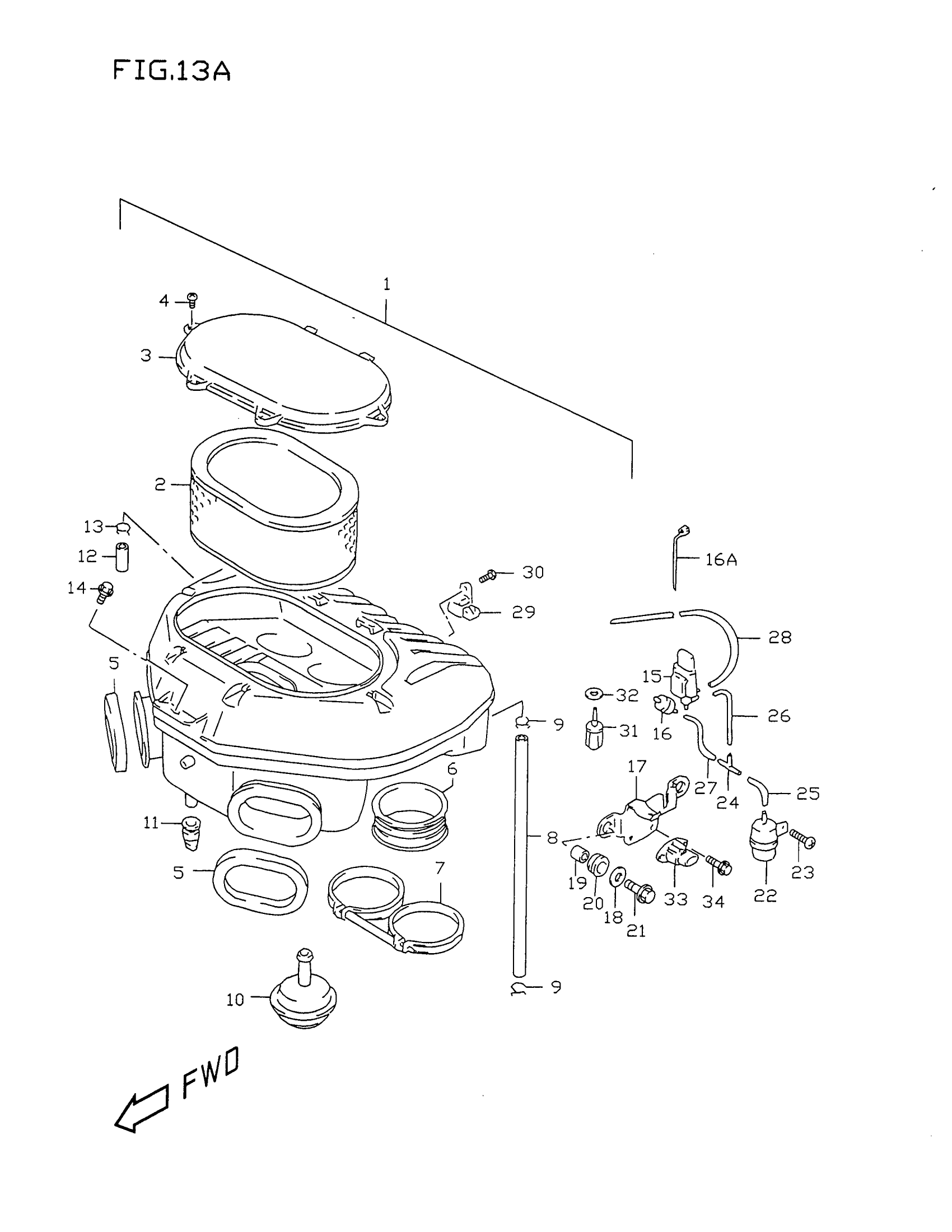

Suzuki GSX-R750X (1999) AIR CLEANER (MODEL W/X) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 13 This part replaces 13700-33E60.

13700-33E51

Unavailable

2

FILTER

13780-33E01

$63.90

3

CAP

13740-33E00

Unavailable

4

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

5

CUSHION, DUCT | MODEL W This part replaces 13736-33E00.

13736-33E01

$9.69

5

CUSHION, DUCT | MODEL X

13736-33E01

$9.69

6

TUBE, OUTLET

13881-33E50

$19.49

7

CLAMP This part replaces 13826-33E50.

13826-33E52

$26.36

8

TUBE,BREATHER This part replaces 13850-33E00.

13850-33E01

Unavailable

9

CLIP

09401-14301

$2.35

10

DIAPHRAGM, CONT VALVE

13895-33E50

Unavailable

11

CAP,DRAIN This part replaces 13872-00110.

13872-00111

$4.48

12

.PLUG

13859-41B10

$7.38

13

CLIP

09401-14301

$2.35

14

BOLT This part replaces 01580-06163.

01580-0616A

$2.42

15

VALVE ASSY, SOLENOID

18115-70G10

$123.07

16

VALVE, CHECK

95569-78040

$44.97

16A

CLAMP, CHECK VALVE

09407-14403

$2.26

17

BRACKET, SOLENOID VALVE

18119-33E00

Unavailable

18

WASHER

09160-06077

$1.91

19

SPACER

09180-06257

$2.83

20

CUSHION

09320-09036

$4.32

21

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

22

CHAMBER, VACUUM

13715-02F00

Unavailable

23

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

24

3 WAY

09367-04007

$4.00

25

HOSE (4X8X600) | L:600->40

09355-40805-600

$11.33

26

HOSE (4X8X600) | L:600->150

09355-40805-600

$11.33

27

HOSE (4X8X600) | L:600->160

09355-40805-600

$11.33

28

HOSE (4X8X2000) | L:600->480

09355-40805-600

$11.33

29

SENSOR, BOOST

15620-02F00

$233.13

30

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

31

SENSOR, AIR TEMPERATURE

13650-61B00

$109.08

32

GASKET

09168-12016

$2.17

33

SENSOR, AIR PRESSURE

18590-80C50

Unavailable

34

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
