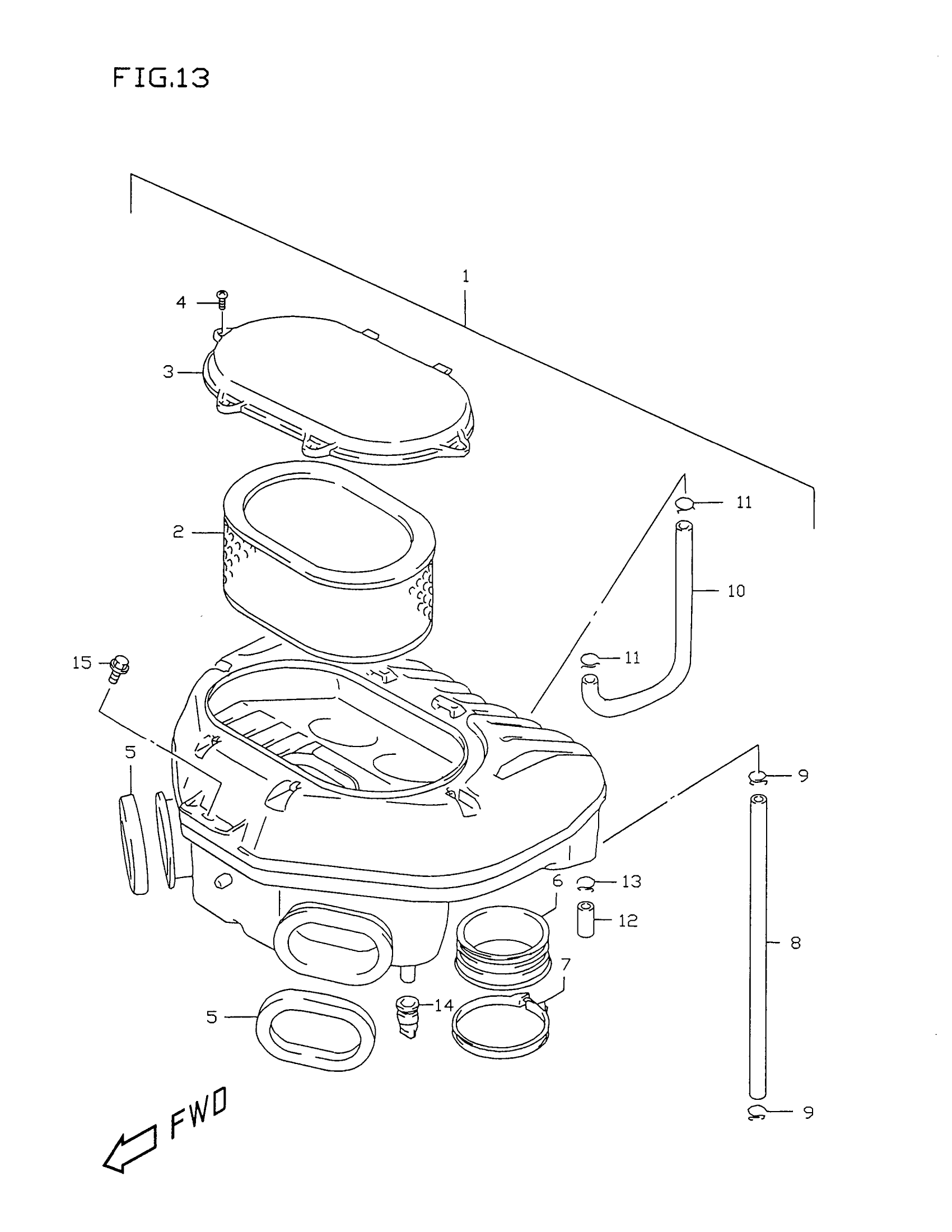

Suzuki GSX-R750X (1999) AIR CLEANER (MODEL T/V) Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 14

13700-33E00

Unavailable

2

FILTER This part replaces 13780-33E00.

13780-33E01

$63.90

3

CAP

13740-33E00

Unavailable

4

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

5

CUSHION, DUCT This part replaces 13736-33E00.

13736-33E01

$9.69

6

TUBE,OUTLET This part replaces 13881-33E00.

13881-33E01

Unavailable

7

CLAMP

09402-72203

$6.94

8

TUBE,BREATHER This part replaces 13850-33E00.

13850-33E01

Unavailable

9

CLIP

09401-14301

$2.35

10

TUBE, CONTROL AIR

13856-33E00

Unavailable

11

CLIP

09401-14301

$2.35

12

.PLUG

13859-41B10

$7.38

13

CLIP

09401-14301

$2.35

14

CAP,DRAIN This part replaces 13872-00110.

13872-00111

$4.48

15

BOLT This part replaces 01580-06163.

01580-0616A

$2.42

16

REFER TO FIG.13A(D-9) FOR

SPECIAL NOTE

Unavailable
