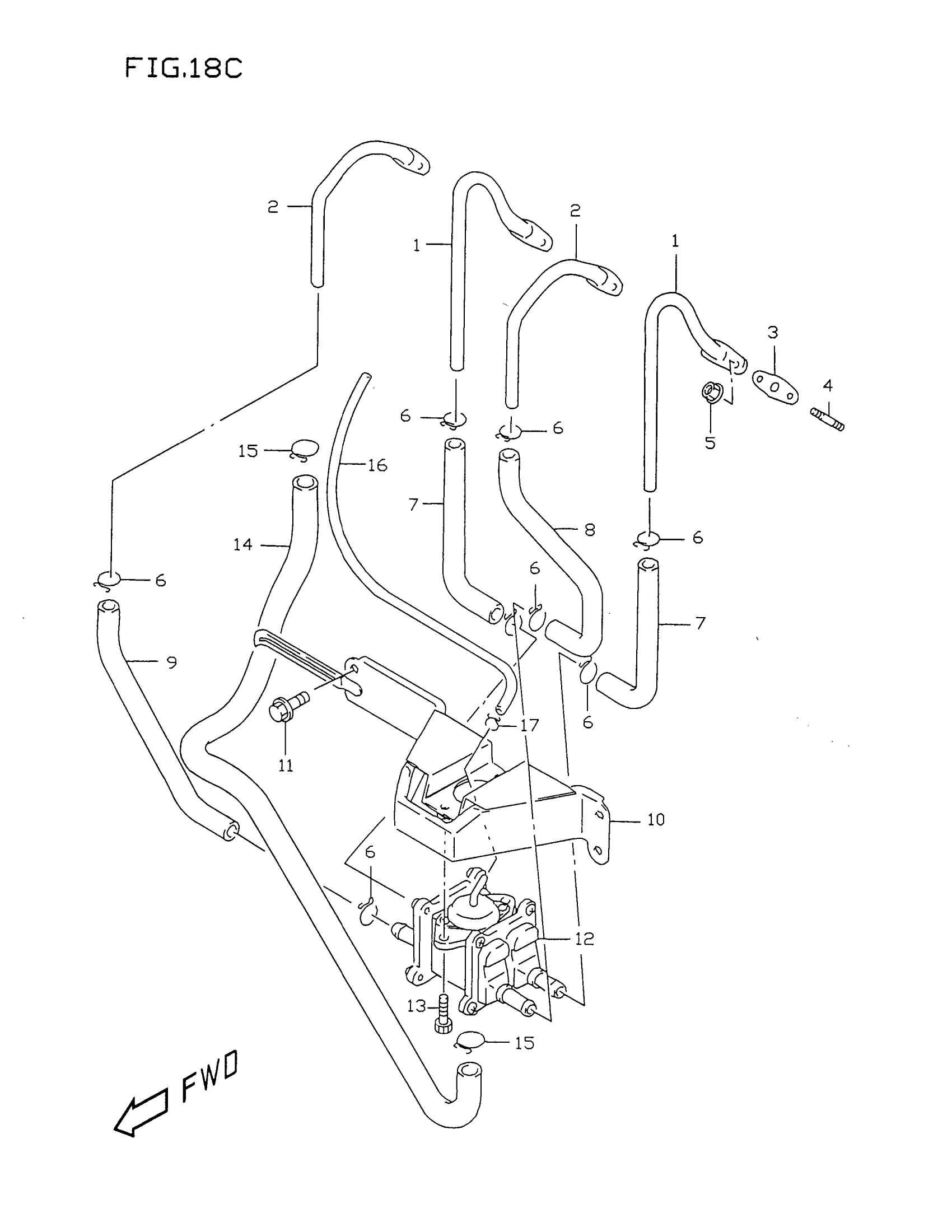

Suzuki GSX-R750X (1999) 2ND AIR (MODEL W/X) Diagram

#

Description
Price

1

PIPE, 2ND AIR NO.1

18410-33E00

Unavailable

2

PIPE, 2ND AIR NO.2

18420-33E00

Unavailable

3

GASKET 2ND AIR PIPE This part replaces 18441-45C00.

18441-45C01

$7.05

4

BOLT,STUD This part replaces 01421-06163.

01421-0616A

$1.91

5

NUT This part replaces 08316-10063.

08316-1006B

$2.50

6

CLIP

09401-13409

$2.12

7

HOSE, 2ND AIR VALVE NO.1

18461-33E10

Unavailable

8

HOSE, 2ND AIR VALVE NO.2

18471-33E10

Unavailable

9

HOSE, 2ND AIR VALVE NO.4

18491-33E10

Unavailable

10

BRACKET, 2ND AIR VALVE

18610-33E10

Unavailable

11

BOLT (6X12) This part replaces 09103-06083.

09103-06285

$1.97

12

VALVE ASSY,2ND This part replaces 18450-33E10.

18450-33E13

$225.78

13

BOLT This part replaces 07130-06163.

07130-0616B

$2.39

14

HOSE, 2ND AIR CLEANER

18711-33E10

Unavailable

15

CLIP

09401-15401

Unavailable

16

HOSE(4X7X2000) | L:2000->700 This part replaces 09352-40703-00B.

09352-40706-00B

$13.47

17

CLIP

09401-06101

$2.03
