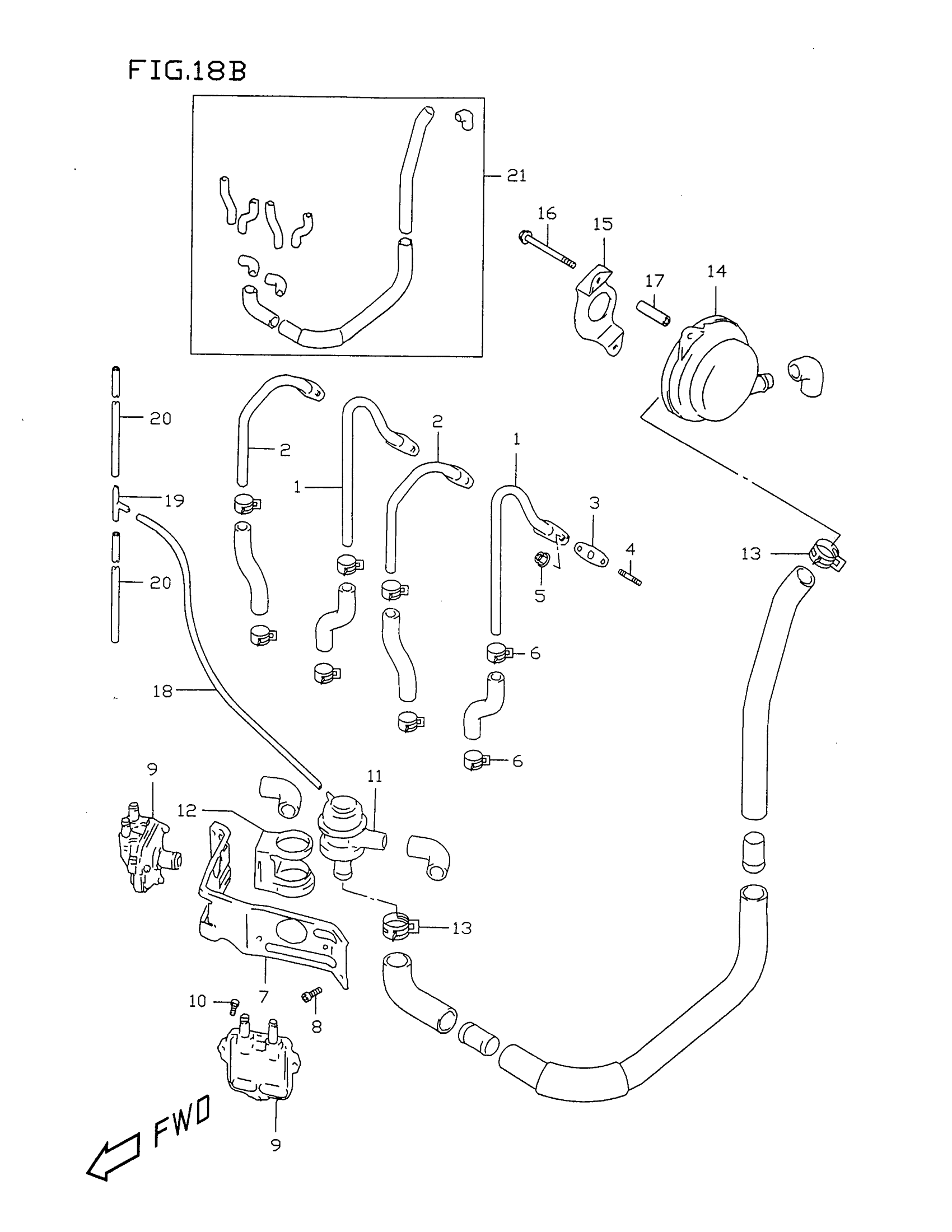

Suzuki GSX-R750X (1999) 2ND AIR (MODEL V E33) Diagram

#

Description
Price

1

PIPE, 2ND AIR NO.1

18410-33E00

Unavailable

2

PIPE, 2ND AIR NO.2

18420-33E00

Unavailable

3

GASKET 2ND AIR PIPE This part replaces 18441-45C00.

18441-45C01

$7.05

4

BOLT,STUD This part replaces 01421-06163.

01421-0616A

$1.91

5

NUT This part replaces 08316-10063.

08316-1006B

$2.50

6

CLAMP This part replaces 09401-13413.

09401-13417

$2.26

7

BRACKET, 2ND AIR

18750-33E00

Unavailable

8

BOLT (6X12) This part replaces 09103-06083.

09103-06285

$1.97

9

VALVE ASSY, 2ND AIR SWITCHING | Includes Item(s) 10

18450-48B00

Unavailable

10

BOLT

07130-05167

$3.15

11

VALVE ASSY, 2ND AIR SWITCHING

18510-46E00

Unavailable

12

CUSHION

18487-01D00

Unavailable

13

CLIP

09401-26402

Unavailable

14

CLEANER ASSY, 2ND AIR

18700-17C03

Unavailable

15

HOLDER

18761-41C00

Unavailable

16

BOLT This part replaces 01550-06603.

01550-0660A

$3.05

17

SPACER

09180-06130

Unavailable

18

HOSE | L:600->540 This part replaces 09359-40701-600.

09359-40703-600

$9.60

19

.JOINT,3 WAY

09367-06002

$2.50

20

HOSE,5X10X600 | L:600->330L:600->160 This part replaces 09355-50105-600.

44421-13ER0

$10.06

21

HOSE SET, 2ND AIR

18410-33810

Unavailable

22

REFER TO FIG.18C(E-10) FOR

SPECIAL NOTE

Unavailable
