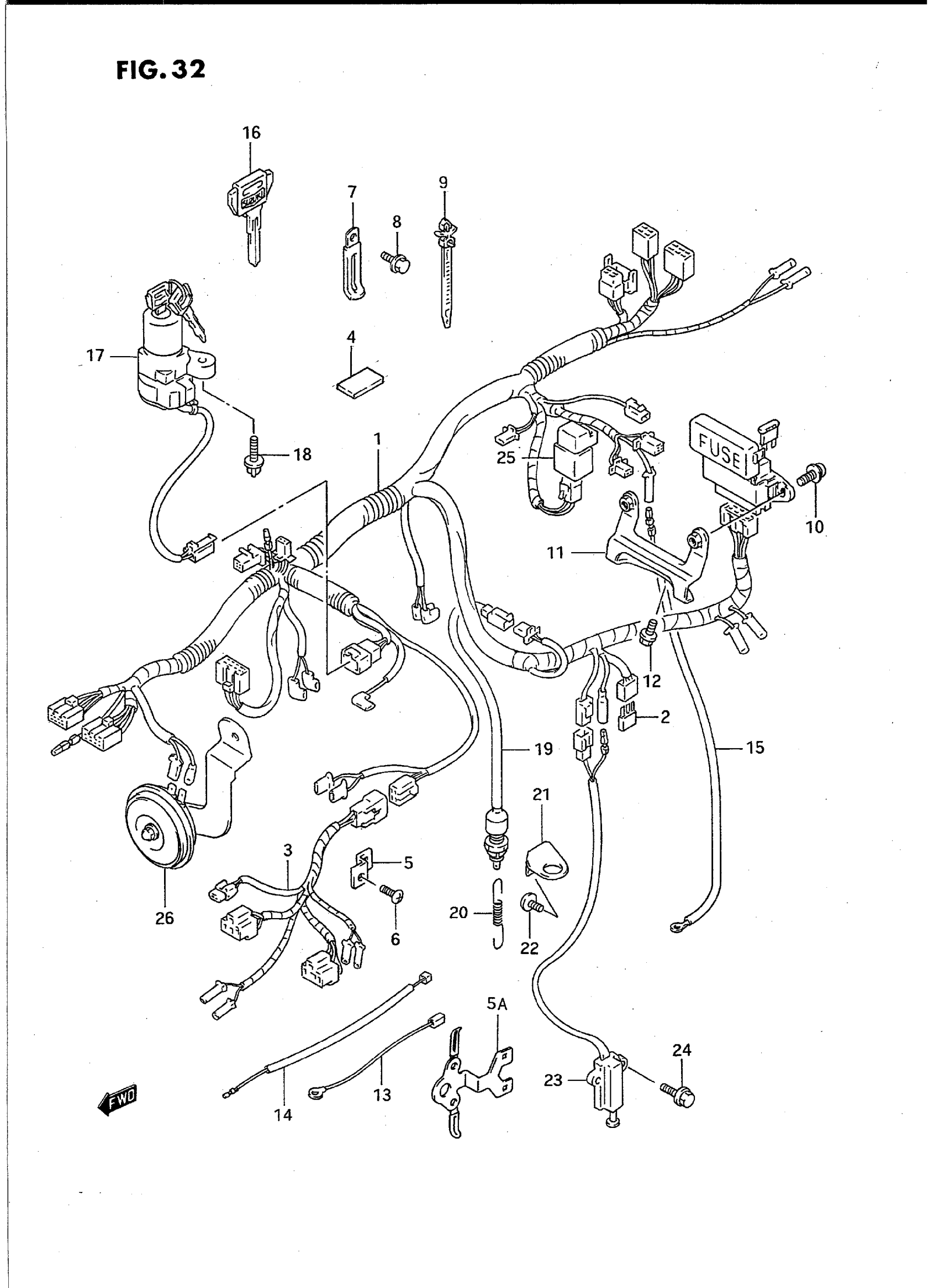

Suzuki GSX-R750WS (1995) WIRING HARNESS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 36610-17E10.

36610-17E13

Unavailable

1

HARNESS, WIRING | MODEL R/S; Includes Item(s) 2

36610-17E20

Unavailable

2

.DIODE | MODEL P This part replaces 36611-38A00.

36611-38A10

$13.16

3

WIRE,HEADLAMP L | MODEL P This part replaces 36620-17E10.

36856-18D01

Unavailable

3

HARNESS, WIRING NO.2 | MODEL R/S

36620-17E00

Unavailable

4

PROTECTOR

36920-10B00

Unavailable

5

HOLDER, CUPLER NO.1 | MODEL P

36687-17E00

Unavailable

5

HOLDER, CUPLER NO.1 | MODEL P

36687-17E10

Unavailable

5A

HOLDER, CUPLER NO.1 | MODEL R/S

36680-17E20

Unavailable

6

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

7

CLAMP This part replaces 09404-06413.

09404-06039

$1.74

7

CLAMP(L:80) This part replaces 09404-06426.

09404-06036

$1.74

7

CLAMP(L:80) This part replaces 09404-06405.

09404-06036

$1.74

7

CLAMP(L:80) This part replaces 09404-06426.

09404-06036

$1.74

7

CLAMP

09404-06429

$1.83

7

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

7

CLAMP(L:80) This part replaces 09404-06434.

09404-06036

$1.74

7

CLAMP

09404-08420

$3.16

7

CLAMP (L:65) This part replaces 09404-08418.

09404-08421

$2.07

7

CLAMP

09404-10205

Unavailable

8

BOLT

01550-06107

$2.80

9

CLAMP

09407-11402

$1.80

9

CLAMP This part replaces 09407-14408.

09407-17402

$3.93

9

CLAMP (L:125)

09407-14403

$2.26

9

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

9

CLAMP

09407-25401

$4.66

10

SCREW | MODEL P This part replaces 02112-76165.

02112-7616A

$2.12

10

SCREW | MODEL R/S This part replaces 02142-06123.

02142-0612A

$1.49

11

BRACKET, FUSE BOX | MODEL P

47410-17E00

Unavailable

12

BOLT, BRACKET | MODEL P

01550-06127

$2.30

13

WIRE, HEADLAMP LEAD | MODEL P

36851-02900

Unavailable

14

WIRE,OIL PRESSU | MODEL P This part replaces 36853-17E00.

36851-46E01

Unavailable

14

WIRE, OIL SWITCH LEAD | MODEL R/S

36851-17E10

Unavailable

15

WIRE, WATER TEMP GAUGE | MODEL P

36851-17E00

Unavailable

15

WIRE, WATER TEMP GAUGE | MODEL R/S

36852-46E10

Unavailable

16

KEY, BLANK | OPT,MODEL P

37146-26D10

$49.70

16

KEY, BLANK | OPT,MODEL R This part replaces 37146-18E00.

37146-33E00

$21.21

16

KEY, BLANK | OPT,MODEL S This part replaces 37146-46E00.

37146-33E00

$21.21

17

LOCK ASSY, STEERING | MODEL P This part replaces 37100-33D00.

37100-26D03

$194.77

17

SWITCH ASSY, IGNITION | MODEL R This part replaces 37100-18E00.

37100-46E21

Unavailable

17

SWITCH ASSY, IGNITION | MODEL S This part replaces 37100-18E01.

37100-46E21

Unavailable

18

BOLT | MODEL P

09139-06026

$2.50

18

BOLT, STEERING LOCK (8X20) | MODEL R/S This part replaces 09119-08082.

37152-17K00

$3.68

19

SWITCH ASSY, STOP LAMP | MODEL P

37740-45D00

$18.27

19

SWITCH ASSY, STOP LAMP | MODEL R/S

37740-24A00

$18.20

20

SPRING

09443-06012

$3.16

21

BRACKET, SWITCH

43250-33C00

Unavailable

22

BOLT

09139-06027

$2.16

23

SWITCH ASSY,SID | MODEL P This part replaces 37840-48B21.

37840-12X52

$69.30

23

SWITCH ASSY,SID | MODEL R This part replaces 37840-12D00.

37840-12X52

$69.30

23

SWITCH ASSY,SID | MODEL S This part replaces 37840-12X50.

37840-12X52

$69.30

24

BOLT | MODEL P This part replaces 01517-06204.

01550-0620A

$1.97

24

BOLT | MODEL R This part replaces 01550-06203.

01550-0620A

$1.97

24

BOLT | MODEL S This part replaces 01550-06163.

01550-0616A

$1.97

25

RELAY ASSY, SIDE STAND | MODEL P This part replaces 38740-24B10.

38740-24X50

$45.20

25

RELAY ASSY. SIDE STAND | MODEL R/S

38740-24X50

$45.20

26

HORN ASSY, LOW | MODEL P This part replaces 38502-17E00.

38502-17E12

Unavailable

26

HORN ASSY, LOW | MODEL R This part replaces 38502-17E10.

38502-17E12

Unavailable

26

HORN ASSY, LOW | MODEL S This part replaces 38502-17E11.

38502-17E12

Unavailable
