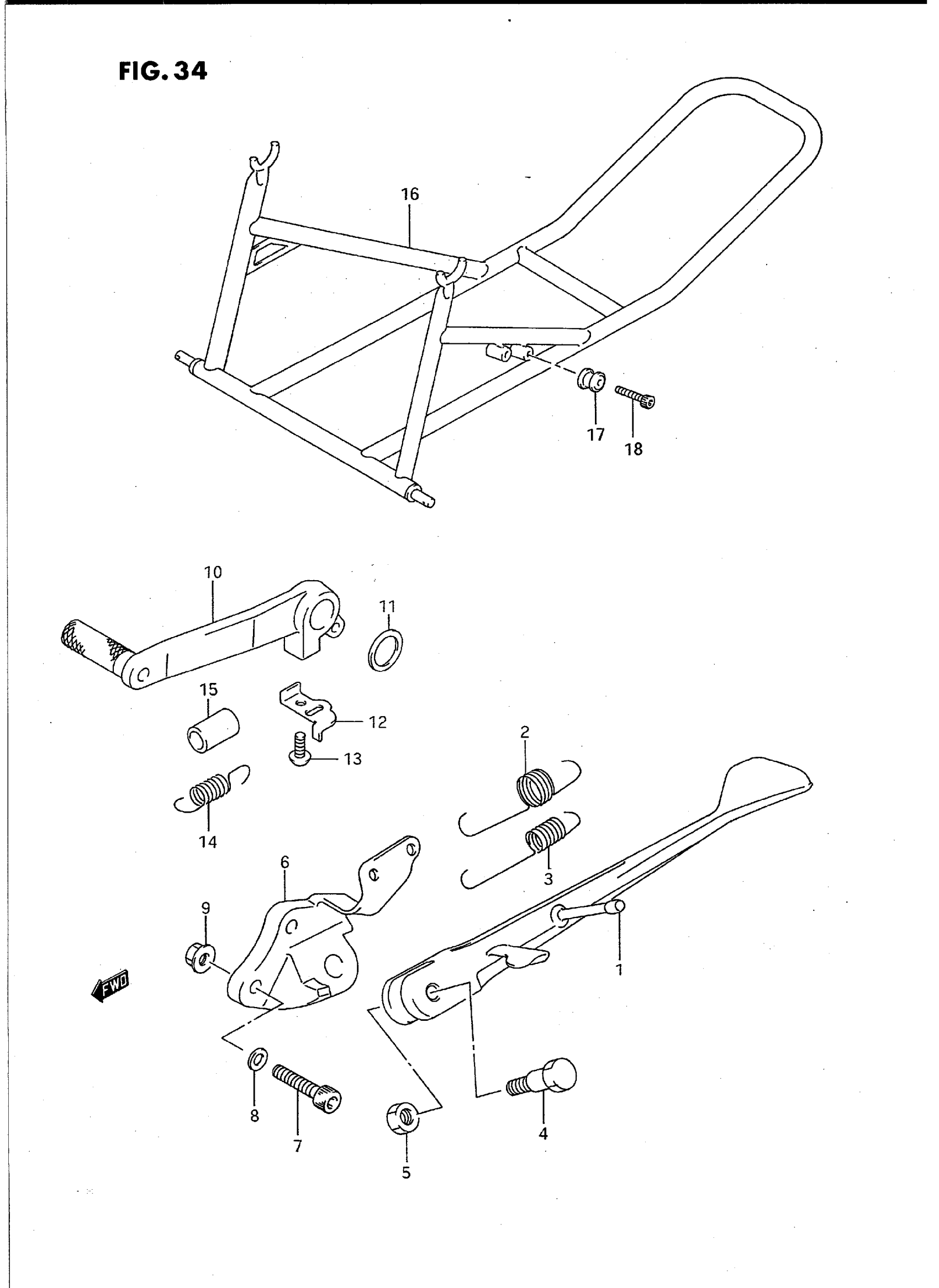

Suzuki GSX-R750WS (1995) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-17E00

Unavailable

2

SPRING, INNER

09443-14058

$5.64

3

SPRING, OUTER

09443-19011

$5.75

4

BOLT

09111-10036

$4.82

5

NUT | MODEL P

08310-00107

$2.19

5

NUT | MODEL R/S

09159-10097

$5.66

6

BRACKET, PROP STAND | MODEL P

42330-17E00

Unavailable

6

BRACKET, PROP STAND | MODEL R/S

42330-17E10

Unavailable

7

BOLT | MODEL P

07130-08357

$3.18

7

BOLT | MODEL R/S This part replaces 07130-08353.

07130-0835B

$4.60

8

WASHER

09164-08015

$3.21

9

NUT | MODEL P

08316-10087

$2.26

9

NUT | MODEL R/S This part replaces 08316-10083.

08316-1008B

$2.66

10

PEDAL, BRAKE

43110-17E00

Unavailable

11

WASHER

09160-18022

$2.92

12

HOOK, RETURN

43563-17E00

Unavailable

13

BOLT | MODEL P

01550-06127

$2.30

13

BOLT, CLAMP | MODEL R/S This part replaces 01550-06123.

01550-0612A

$1.97

14

SPRING

09443-13018

$3.23

15

TUBE, SPRING

43261-17C00

$6.12

16

NO DESCRIPTION AVAILABLE | OPT This part replaces 42100-17C00.

99950-70043-RAC

Unavailable

17

HOLDER, STAND | OPT

61165-27A30

Unavailable

18

BOLT, STEERING DAMPER | OPT,MODEL P This part replaces 07110-08305.

07130-0830A

$1.74

18

BOLT, STEERING DAMPER | OPT,MODEL R/S This part replaces 07130-08303.

07130-0830A

$1.74
