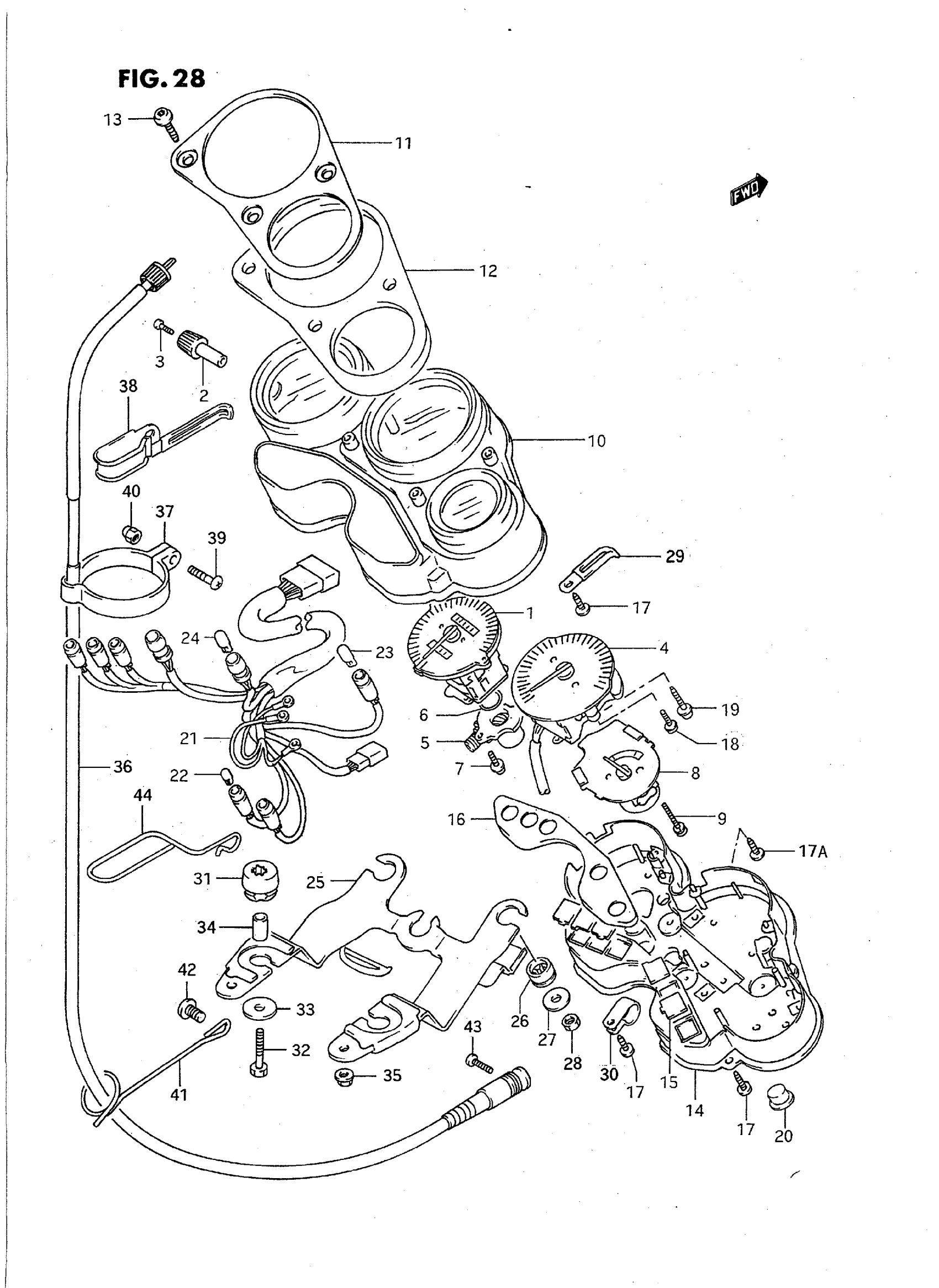

Suzuki GSX-R750WS (1995) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER | MODEL P/R This part replaces 34120-17E20.

34120-17E21

Unavailable

1

SPEEDOMETER | MODEL S

34120-17E21

Unavailable

2

KNOB, TRIP

34124-17E00

Unavailable

3

SCREW (2X6) | MODEL P/R This part replaces 34981-13A00.

09139-02003

$1.65

3

SCREW (2X6) | MODEL S

09139-02003

$1.65

4

TACHOMETER | MODEL P/R This part replaces 34220-17E00.

34220-17E02

Unavailable

4

TACHOMETER | MODEL S

34220-17E02

Unavailable

5

BOX, METER GEAR | MODEL P This part replaces 34131-33450.

34131-19B00

Unavailable

5

BOX, METER GEAR | MODEL R/S This part replaces 34131-17E00.

34131-19B00

Unavailable

6

O RING

34132-17E00

Unavailable

7

SCREW This part replaces 02112-74103.

02112-7410B

$2.72

8

METER, TEMPARATURE

34420-17E00

Unavailable

9

SCREW (3X22)

34383-09400

Unavailable

10

HOOD | MODEL P

34150-17E00

Unavailable

10

HOOD | MODEL R/S

34150-17E30

Unavailable

11

PANEL, METER

34960-17E00

Unavailable

12

CUSHION

34961-17E01

Unavailable

13

SCREW (5X16)

34186-17E00

Unavailable

14

CASE. METER | Includes Item(s) 15 - 16 This part replaces 34111-17E00.

34111-17E10

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 36300-17830.

36300-17840

Unavailable

16

PANEL

36386-17E00

Unavailable

17

SCREW

34149-17E10

$6.23

17A

SCREW (3X10) | MODEL P/R

34249-17E10

Unavailable

17A

SCREW (3X10) | MODEL S

34149-19D00

Unavailable

18

SCREW This part replaces 02112-74103.

02112-7410B

$2.72

19

SCREW (4X22)

34249-17E00

Unavailable

20

CAP

34198-17E00

Unavailable

21

SOCKET | MODEL P This part replaces 34170-17E00.

34170-46E10

Unavailable

21

SOCKET | MODEL R/S

34170-17E30

Unavailable

22

BULB (14V,3W)

09471-12103

$3.83

23

.BULB (12V1.7W)

09471-12108

$3.42

24

BULB (12V,1.7W)

09471-12077

$3.55

25

BRACKET, METER | MODEL P

34950-17E00

Unavailable

26

DAMPER | MODEL P

34955-29B50

Unavailable

26

DAMPER | MODEL R/S

34955-17E00

Unavailable

27

WASHER | MODEL P This part replaces 34972-17E00.

09160-06056

$1.72

28

.NUT | MODEL P This part replaces 34967-17E00.

08310-00067

$2.13

28

NUT (M6) | MODEL R/S

09159-06076

$2.81

29

CLAMP | MODEL P

34176-17E00

Unavailable

29

CLAMP | MODEL R/S

34176-46E00

Unavailable

30

CLAMP | MODEL P

34176-17E10

Unavailable

31

GROMMET | MODEL P

09320-09041

Unavailable

32

BOLT | MODEL P This part replaces 01107-06305.

01500-0630A

$2.19

33

.WASHER (6.5X20X1.6) | MODEL P This part replaces 09160-06102.

09160-06088

$1.65

34

SPACER (6.1X8X15.5) | MODEL P This part replaces 09180-06094.

09180-06251

$2.44

35

NUT | MODEL P This part replaces 08319-31055.

08319-3105B

$3.55

36

CABLE ASSY,SPEE | MODEL P This part replaces 34910-17E01.

34910-17E02

Unavailable

36

CABLE ASSY,SPEE | MODEL R/S This part replaces 34910-17E10.

34910-17E11

Unavailable

37

GUIDE, CABLE NO.1 | MODEL P

34938-17E01

Unavailable

38

GUIDE, CABLE NO.1 | MODEL R/S

34938-17E20

Unavailable

39

SCREW | MODEL P

02112-05164

$2.63

40

NUT | MODEL P This part replaces 08313-11055.

08313-1005B

$2.70

41

GUIDE, CABLE NO.3 | MODEL P

34939-17D00

Unavailable

41

GUIDE, CABLE NO.3 | MODEL R/S

34939-45000

Unavailable

42

SCREW | MODEL P

02142-06107

Unavailable

42

STOPPER, CL RLSE CAM SHAFT | MODEL R/S This part replaces 02142-06103.

02142-0610A

$1.49

43

SCREW | MODEL P

02112-05164

$2.63

43

.SCREW | MODEL R/S This part replaces 02112-05163.

02112-0516A

$1.49

44

GUIDE,METER CAB | MODEL R/S This part replaces 34938-17E30.

34938-17E3V

Unavailable
