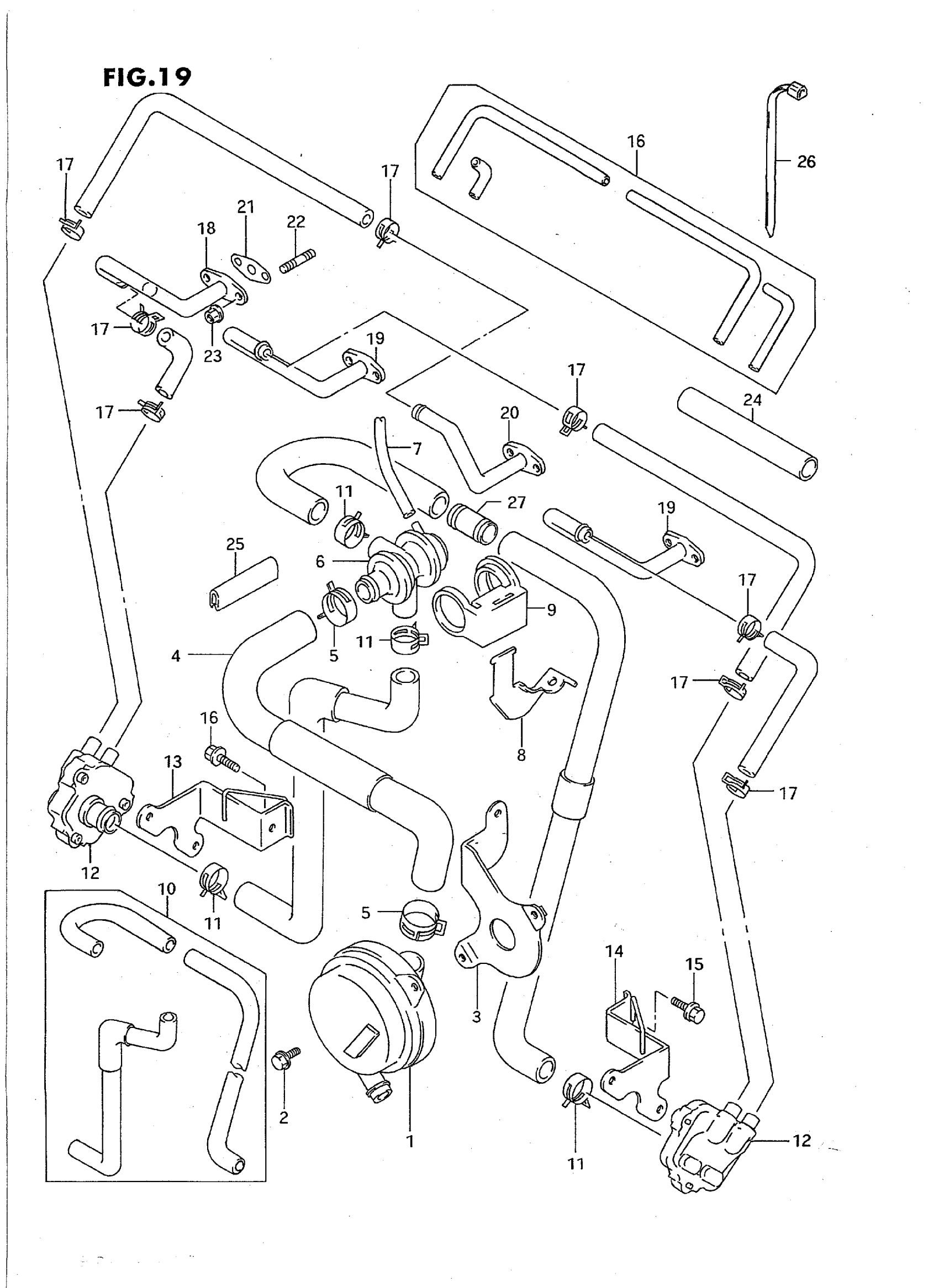

Suzuki GSX-R750WS (1995) SECOND AIR (CALIFORNIA ONLY) Diagram

#

Description
Price

1

CLEANER ASSY, 2ND AIR This part replaces 18700-06B04.

18700-17C03

Unavailable

2

BOLT, CLAMP | MODEL P This part replaces 01517-06125.

01550-0612A

$1.97

2

BOLT, CLAMP | MODEL R/S This part replaces 01550-06123.

01550-0612A

$1.97

3

BRACKET, 2ND AIR CLEANER

18750-17E00

Unavailable

4

HOSE, 2ND AIR CLEANER

18550-17E00

Unavailable

5

CLIP

09401-26402

Unavailable

6

VALVE ASSY, AIR SWITCHING

18510-06B00

Unavailable

7

HOSE, VACUUM | L:600->300

09359-45852-600

Unavailable

8

BRACKET, 2ND AIR VALVE

18741-17E00

Unavailable

9

CUSHION, 2ND AIR VALVE

18487-01D00

Unavailable

10

HOSE SET, 2ND AIR NO.2

18420-17820

Unavailable

11

CLIP | MODEL P

09401-21401

Unavailable

11

CLIP | MODEL R/S

09401-21403

Unavailable

12

VALVE ASSY, 2ND AIR REED

18450-48B00

Unavailable

13

BRACKET, REED VALVE LH

18720-17E01

Unavailable

14

BRACKET. REED VALVE RH | MODEL P This part replaces 18730-17E01.

18730-17E02

Unavailable

14

BRACKET, REED VALVE RH | MODEL R/S

18730-17E02

Unavailable

15

BOLT | MODEL P This part replaces 01517-06164.

01550-0616A

$1.97

15

BOLT | MODEL R/S This part replaces 01550-06163.

01550-0616A

$1.97

16

HOSE SET, 2ND AIR NO.1

18410-17840

Unavailable

17

CLAMP | MODEL P This part replaces 09401-13408.

09401-13417

$2.26

17

CLAMP | MODEL R/S This part replaces 09401-13413.

09401-13417

$2.26

18

PIPE, 2ND AIR NO.4

18440-17E01

Unavailable

19

PIPE, 2ND AIR NO.1 & 3

18410-17E01

Unavailable

20

PIPE, 2ND AIR NO.2

18420-17E00

Unavailable

21

GASKET 2ND AIR PIPE This part replaces 18441-45C00.

18441-45C01

$7.05

22

BOLT,STUD | MODEL P This part replaces 01421-06125.

01421-0612A

Unavailable

22

BOLT,STUD | MODEL R/S This part replaces 01421-06163.

01421-0616A

$1.91

23

NUT | MODEL P This part replaces 08316-16064.

08316-1006B

$2.50

23

NUT | MODEL R/S This part replaces 08316-10063.

08316-1006B

$2.50

24

TUBE, FUEL HOSE | MODEL P This part replaces 44311-38B02.

44311-17E01

$17.72

24

PROTECTOR, HOSE (L:150) | MODEL R/S

44311-17E00

Unavailable

25

MOLDING, HOSE | L:110->70

44552-24B00

$14.08

26

CLAMP

09407-18402

$2.19

27

UNION, 2ND AIR VALVE HOSE

18432-17E00

Unavailable
