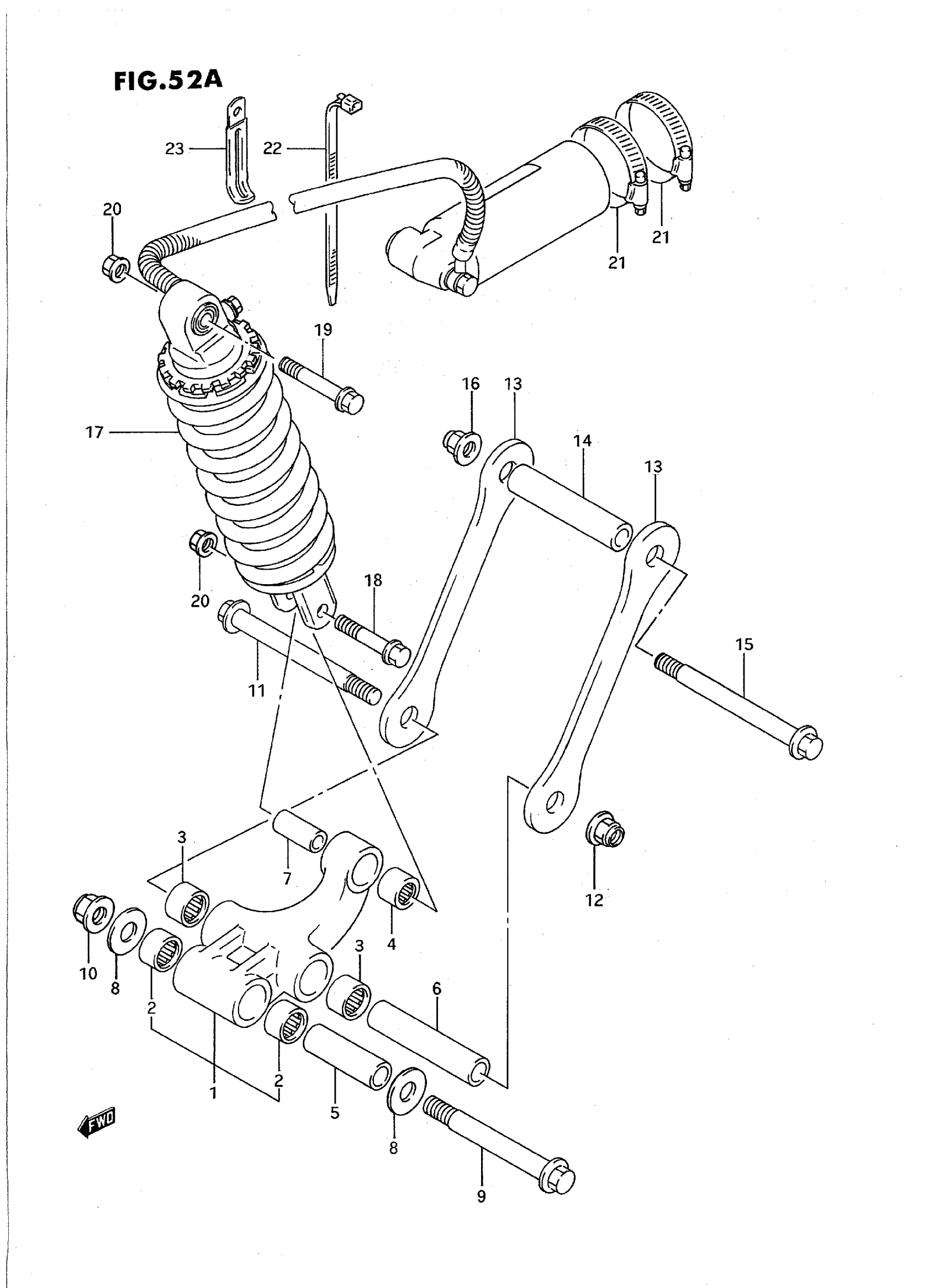

Suzuki GSX-R750WS (1995) REAR CUSHION LEVER (MODEL R/S) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | MODEL R This part replaces 62600-17810.

62600-17811

Unavailable

1

LEVER SET, REAR CUSHION | MODEL S; Includes Item(s) 2 - 4

62600-17811

Unavailable

2

BEARING, FRONT

09263-20071

$25.92

3

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

SPACER, FRONT

62317-17C00

Unavailable

6

SPACER, CENTER

09180-12122

$23.05

7

SPACER, REAR

62684-40A10

$12.15

8

WASHER, FRONT

08211-14323

$3.85

9

BOLT, FRONT

62621-17C00

$23.07

10

NUT This part replaces 08319-31148.

08319-3114A

$9.66

11

BOLT, CENTER (12X115) | MODEL R

09103-12037

$13.53

11

BOLT, CENTER (12X118) | MODEL S

09103-12041

$14.73

12

NUT This part replaces 08319-31128.

08319-3112A

$3.76

13

ROD, REAR CUSHION LEVER | MODEL R->62640-17E10W/09103-12041 This part replaces 62641-17E10.

62640-17E10

Unavailable

13

ROD, REAR CUSHION LEVER | MODEL S

62640-17E10

Unavailable

14

SPACER, ROD

09180-12122

$23.05

15

BOLT, ROD (12X115) | MODEL R

09103-12037

$13.53

15

BOLT, ROD (12X118) | MODEL S

09103-12041

$14.73

16

NUT This part replaces 08319-31128.

08319-3112A

$3.76

17

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 62100-18E10.

62100-17E31

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL S This part replaces 62100-17E30.

62100-17E31

Unavailable

18

BOLT, LOWER

09103-10101

$4.00

19

BOLT, UPPER

09103-10032

Unavailable

20

NUT

08319-31107

$2.73

21

CLAMP

09402-60502

Unavailable

22

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

23

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.65
