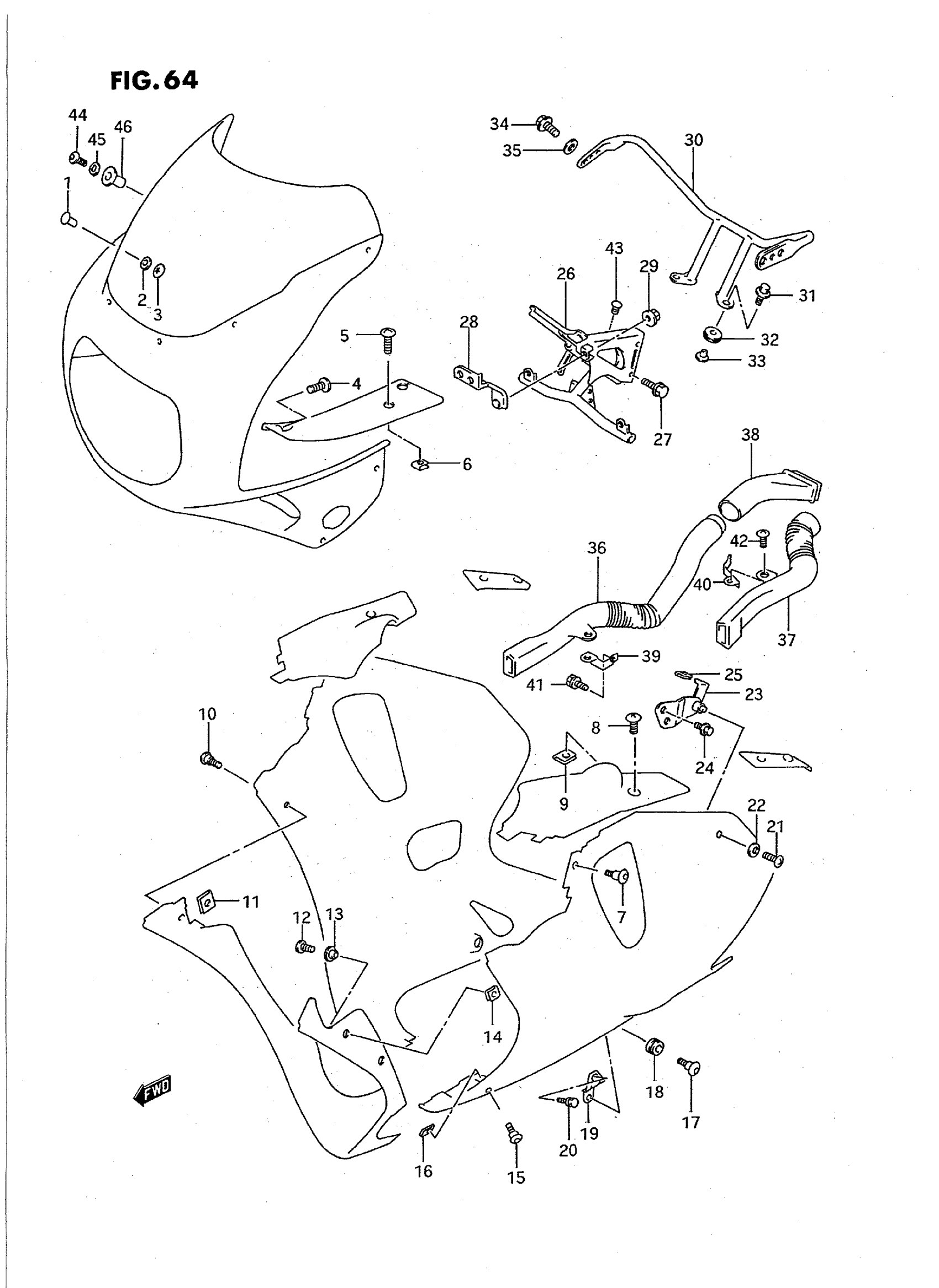

Suzuki GSX-R750WS (1995) INSTALLATION PARTS (MODEL R/S) Diagram

#

Description
Price

1

PIN, SCREEN (4X11) | MODEL R

94616-22D00

$2.92

2

CUSHION | MODEL R This part replaces 09320-04007.

09320-04501

$2.61

3

NUT | MODEL R

09148-04032

$2.17

4

SCREW This part replaces 03541-05103.

03541-0510A

$1.49

5

SCREW This part replaces 03241-05123.

03241-0512A

$1.49

6

NUT

09148-05013

$2.07

7

SCREW, COWLING (5X16)

09139-05055

$4.26

8

SCREW This part replaces 03241-05123.

03241-0512A

$1.49

9

NUT

09148-05013

$2.07

10

SCREW, UNDER RH (5X16)

09139-05054

$4.24

11

NUT

94484-12C11

$10.80

12

SCREW, BRACKET This part replaces 03241-05163.

03241-0516A

$1.49

13

WASHER

09161-05017

$3.18

14

NUT

09148-05013

$2.07

15

SCREW, UNDER LH (5X16)

09139-05054

$4.24

16

NUT

94484-12C11

$10.80

17

SCREW This part replaces 09139-06087.

09139-06126

$4.04

18

CUSHION

09320-09016

$1.97

19

BRACKET, UNDER LOWER RH

94740-17E00

Unavailable

19

BRACKET, UNDER LOWER LH

94840-17E01

Unavailable

20

BOLT (6X16) | MODEL R This part replaces 09116-06027.

09116-06024

Unavailable

20

BOLT (6X16) | MODEL S

09116-06024

Unavailable

21

SCREW, UNDER (6X10)

09139-06078

$2.79

22

WASHER This part replaces 09160-06053.

09160-06125

$1.91

23

BRACKET, UNDER RH

94530-17E30

Unavailable

23

BRACKET, UNDER LH

94540-17E30

Unavailable

24

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

25

NUT

09148-05038

$1.97

26

BRACE, COWLING

94510-17E20

Unavailable

27

BOLT This part replaces 01550-08303.

01550-0830A

$3.04

28

BRACKET, HEADLAMP | MODEL R This part replaces 94428-17E20.

94428-17E21

Unavailable

28

BRACKET, HEAD LAMP | MODEL S

94428-17E21

Unavailable

29

NUT This part replaces 08316-10063.

08316-1006B

$2.50

30

BRACE, MIRROR

94520-17E00

Unavailable

31

BOLT (6X25) This part replaces 09116-06146.

09116-06150

$2.59

32

CUSHION

09320-09009

$4.64

33

WASHER

09169-06062

$2.50

34

SCREW (6X12)

09136-06004

$2.15

35

WASHER

09161-06023

$3.20

36

PIPE, AIR INTAKE RH

94451-17E00

Unavailable

37

PIPE, AIR INTAKE LH

94452-17E00

Unavailable

38

PIPE, AIR INTAKE REAR

94453-46E00

Unavailable

39

BRACKET, AIR INTAKE RH

94454-17E01

Unavailable

40

BRACKET, AIR INTAKE LH

94455-17E01

Unavailable

41

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

42

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

43

CAP This part replaces 09250-09001.

09250-09008

$1.54

44

SCREW, SCREEN (5X14) | MODEL S

09139-05025

$2.05

45

WASHER, FRONT | MODEL S This part replaces 08322-01053.

08322-0105A

$1.84

46

NUT, SCREEN | MODEL S

09159-05019

$7.14
