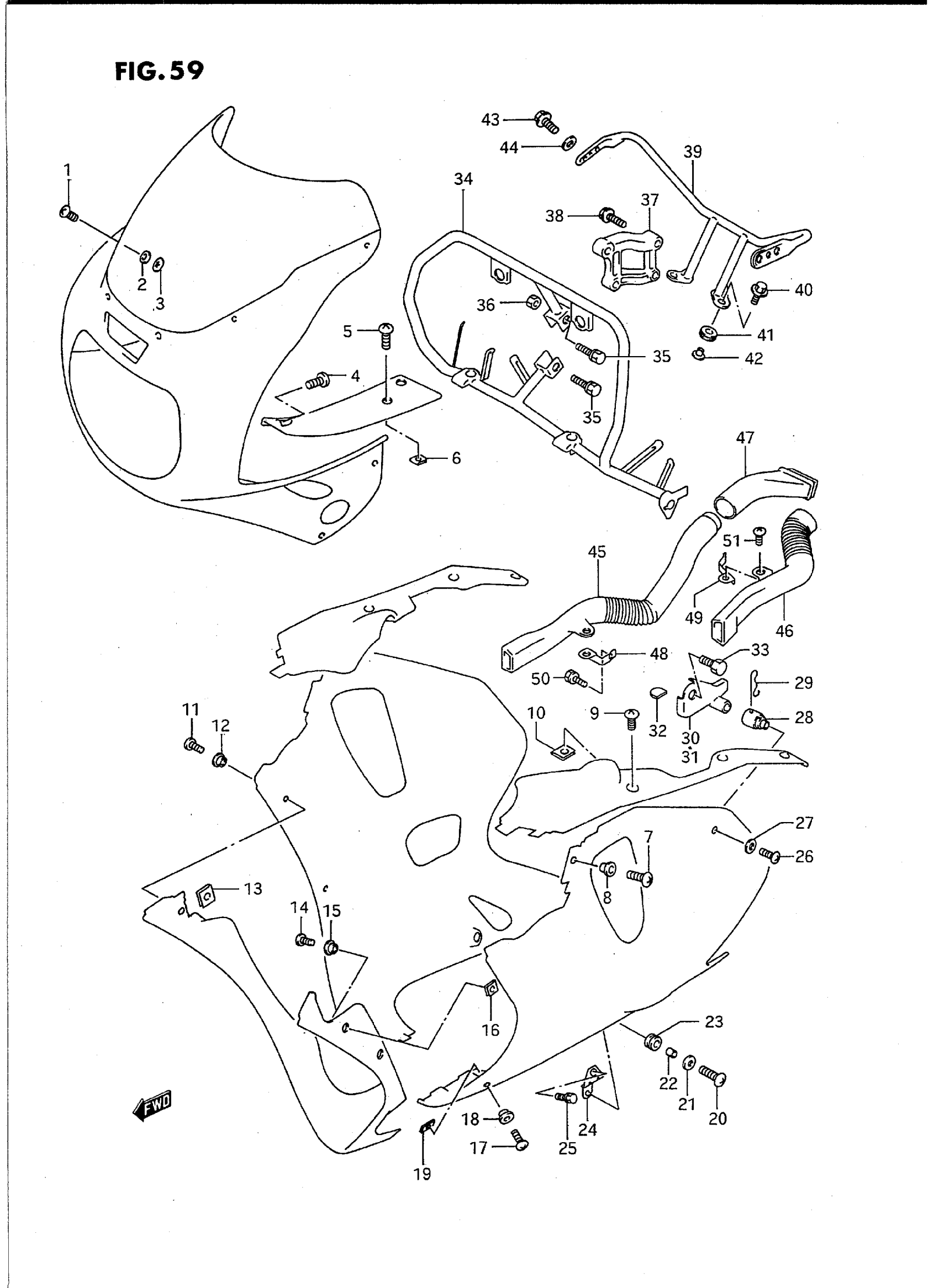

Suzuki GSX-R750WS (1995) INSTALLATION PARTS (MODEL P) Diagram

#

Description
Price

1

PIN, SCREEN (4X11)

94616-22D00

$2.80

2

CUSHION This part replaces 09320-04007.

09320-04501

$3.18

3

NUT

09148-04032

$1.68

4

.SCREW This part replaces 02142-05124.

02142-0512A

$1.37

5

SCREW This part replaces 03242-05124.

03241-0512A

$1.36

6

NUT This part replaces 09148-05004.

09148-05013

$1.94

7

SCREW, COWLING

09139-05032

$2.00

8

WASHER

09161-05018

Unavailable

9

SCREW This part replaces 03242-05124.

03241-0512A

$1.36

10

NUT This part replaces 09148-05004.

09148-05013

$1.94

11

SCREW, UNDER CENTER RH (5X18)

09139-05032

$2.00

12

WASHER

09161-05017

$2.80

13

NUT

94484-12C11

$12.20

14

SCREW, BRACKET This part replaces 03242-05165.

03241-0516A

$1.23

15

WASHER

09161-05017

$2.80

16

NUT This part replaces 09148-05004.

09148-05013

$1.94

17

SCREW, CENTER LOWER LH (5X18)

09139-05032

$2.00

18

WASHER

09161-05017

$2.80

19

NUT

94484-12C11

$12.20

20

SCREW, UNDER LOWER (6X25)

09139-06029

$4.84

21

WASHER

09160-06056

$1.73

22

SPACER (6.5X9X10) This part replaces 09180-06114.

09180-06307

$2.80

23

CUSHION

09320-09016

$1.97

24

BRACKET, UNDER LOWER RH

94740-17E00

Unavailable

24

BRACKET, UNDER LOWER LH This part replaces 94840-17E00.

94840-17E01

Unavailable

25

BOLT (6X16) This part replaces 09116-06027.

09116-06024

Unavailable

26

SCREW, UNDER REAR (6X20)

09139-06028

$3.33

27

WASHER This part replaces 09160-06053.

09160-06125

$1.89

28

PLUG, UNDER COWLING

94520-12C00

$13.20

29

PIN,UNDER COWL This part replaces 94523-12C00.

94523-12C0V

$4.83

30

BRACE, UNDER RH This part replaces 94530-17E00.

94530-17E01

Unavailable

31

BRACE, UNDER LH This part replaces 94540-17E00.

94540-17E01

$28.60

32

CUSHION, BRACE

94551-17E00

Unavailable

33

BOLT This part replaces 01137-06125.

01570-0612A

$2.87

34

BRACE, COWLING

94510-17E00

Unavailable

35

NO DESCRIPTION AVAILABLE This part replaces 01137-08308.

01570-08307

Unavailable

36

NUT This part replaces 08313-21087.

08313-20087

$2.19

37

BRACE, COWLING CENTER

94531-41C00

Unavailable

38

BOLT This part replaces 01187-08408.

01580-08407

Unavailable

39

BRACE, MIRROR

94520-17E00

Unavailable

40

BOLT (6X20) This part replaces 09116-06143.

09116-06115

$1.97

41

CUSHION

09320-09009

$4.19

42

WASHER

09169-06062

$2.50

43

SCREW, MIRROR BRACE (6X12)

09136-06004

$2.13

44

WASHER

09161-06023

$2.25

45

PIPE, AIR INTAKE RH

94451-17E00

Unavailable

46

PIPE, AIR INTAKE LH

94452-17E00

Unavailable

47

PIPE, AIR INTAKE REAR

94453-17C00

Unavailable

48

BRACKET, AIR INTAKE RH This part replaces 94454-17E00.

94454-17E01

Unavailable

49

BRACKET, AIR INTAKE LH This part replaces 94455-17E00.

94455-17E01

Unavailable

50

BOLT This part replaces 01137-06125.

01570-0612A

$2.87

51

SCREW This part replaces 02142-06125.

02142-0612A

$1.37

52

REFER TO FIG.64(J-10) FOR

SPECIAL NOTE

Unavailable
