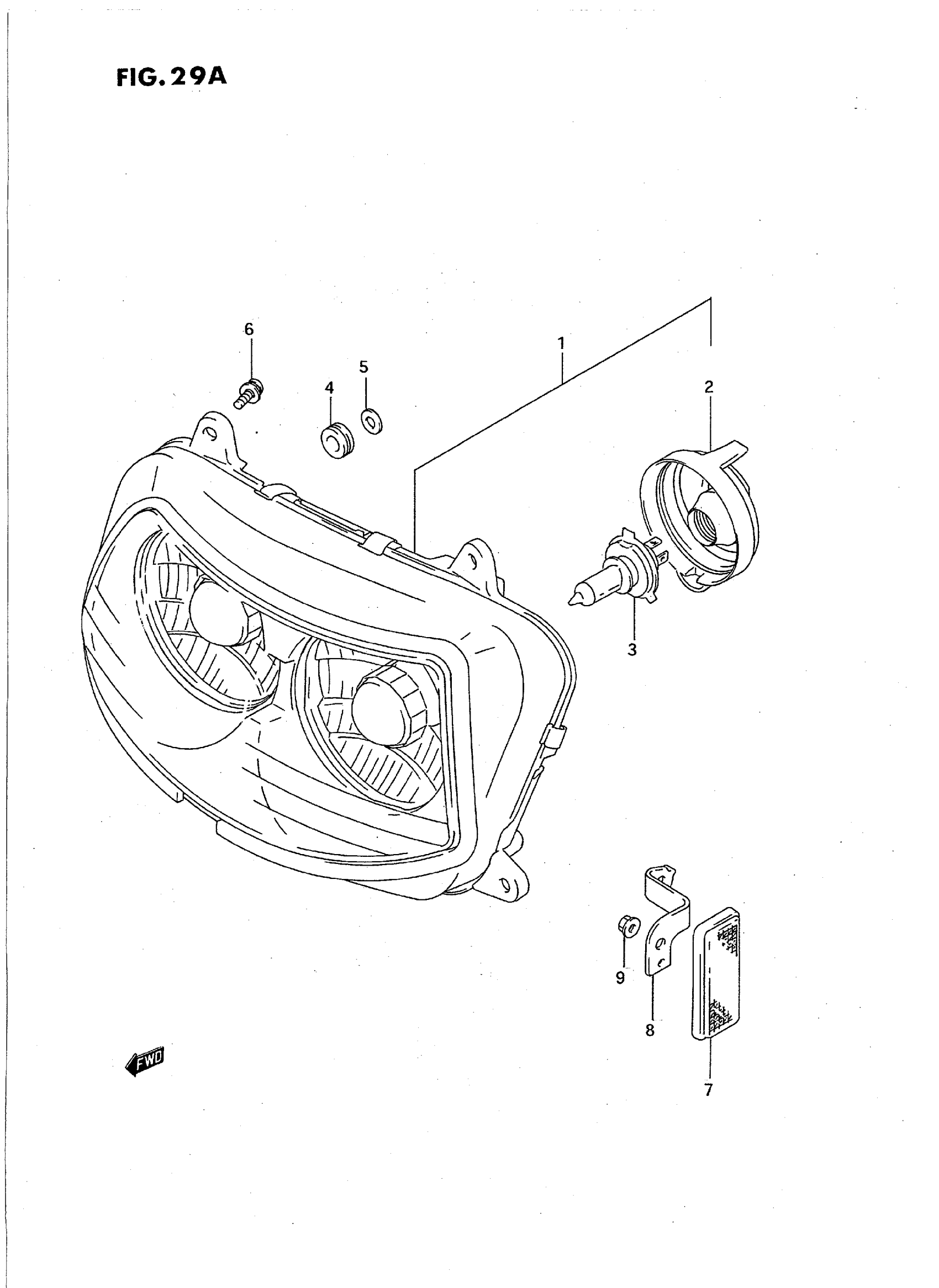

Suzuki GSX-R750WS (1995) HEADLAMP (MODEL R/S) Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2

35100-18E00-999

Unavailable

2

COVER, SOCKET

35173-18E00

Unavailable

3

BULB (12V,60/55W)

09471-12060

$25.15

4

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

$8.24

5

WASHER

09160-05037

$1.49

6

SCREW This part replaces 03511-05163.

03511-0516A

$1.86

7

REFLECTOR, FRONT SIDE

35950-43431

$17.83

8

BRACKET, RH

35956-17D00

Unavailable

8

BRACKET, LH

35957-17D00

Unavailable

9

NUT This part replaces 08310-00053.

08310-0005A

$1.84
