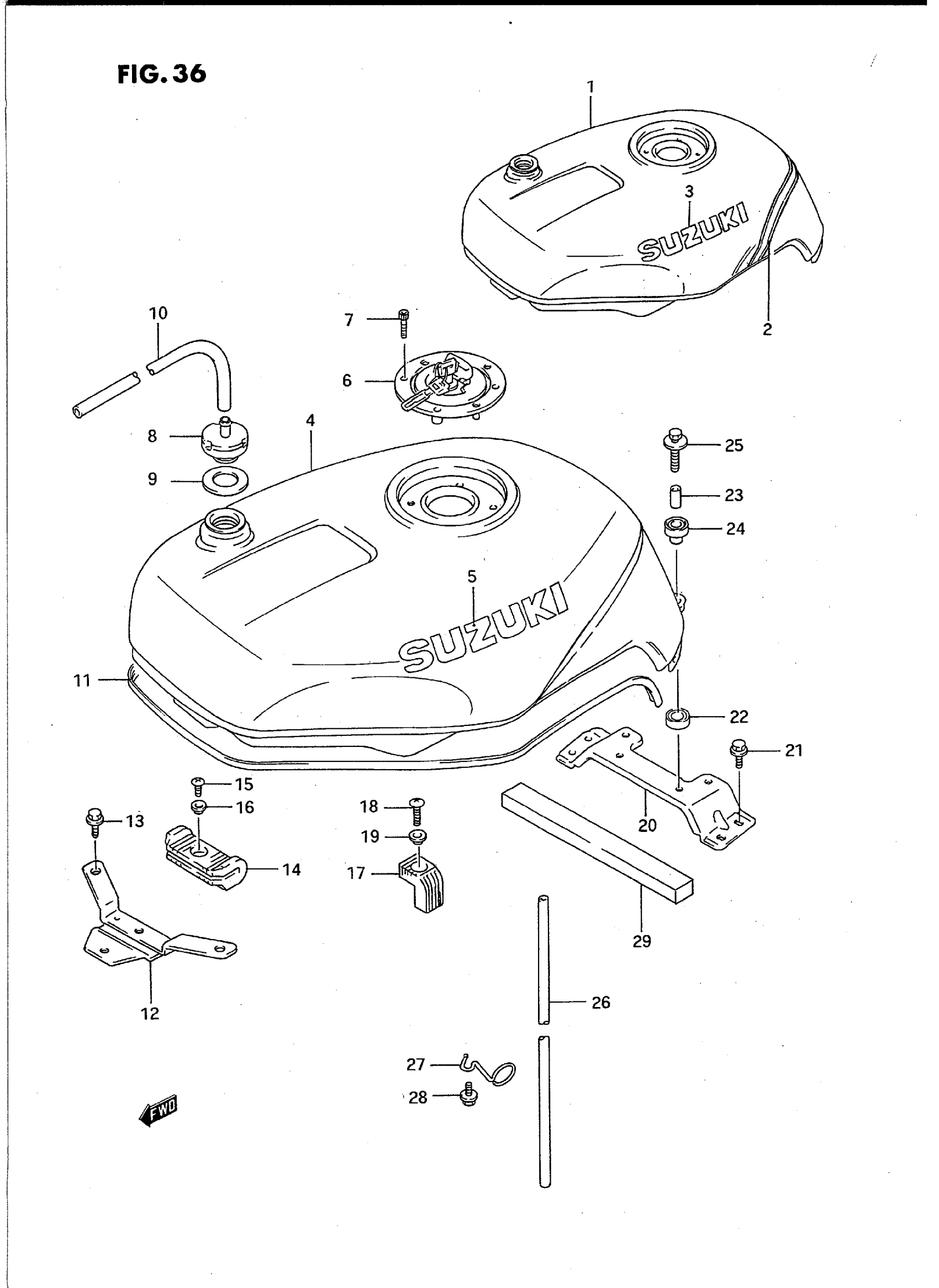

Suzuki GSX-R750WS (1995) FUEL TANK (MODEL P) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44100-17EA0-M18.

44100-17EB1-M18

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY; Includes Item(s) 2 - 3 This part replaces 44100-17EC0-M18.

44100-17EC2-M18

Unavailable

2

TAPE, FUEL TANK | FOR M18 This part replaces 68115-17E10-A5S.

68115-17E11-A5S

Unavailable

3

EMBLEM (WHITE) This part replaces 68111-12C00-0JW.

68111-12C30-0JW

$21.47

4

NO DESCRIPTION AVAILABLE This part replaces 44100-17ED0-1TU.

44100-17EE1-1TU

Unavailable

4

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY; Includes Item(s) 5 This part replaces 44100-17EF0-1TU.

44100-17EF2-1TU

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 68111-12C00-23S.

68111-12C30-23S

Unavailable

6

CAP SET, FUEL TANK This part replaces 44201-01851.

44201-01852

Unavailable

7

BOLT

09106-05017

$2.83

8

PLUG, BREATHER

44240-06B10

$38.33

8

PLUG, BREATHER | CALIFORNIA ONLY

44240-28A01

Unavailable

9

GASKET

09168-12012

$1.83

9

GASKET | CALIFORNIA ONLY

09168-27001

Unavailable

10

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

11

MOLDING This part replaces 68241-17E00.

68241-04X50-00B

$27.30

12

BRACKET, FRONT

44520-17E03

Unavailable

13

BOLT

01550-06167

$2.30

14

CUSHION, FRONT

44511-41C00

Unavailable

15

SCREW This part replaces 02142-05104.

02142-0510B

$1.78

16

WASHER

09169-05012

$2.38

17

CUSHION, SIDE This part replaces 44545-33C00.

44545-33C01

Unavailable

18

SCREW

02142-06207

$1.49

19

WASHER This part replaces 09169-06051.

09169-06055

$2.27

20

NO DESCRIPTION AVAILABLE This part replaces 44530-17E01.

44530-17E02

Unavailable

21

BOLT

01550-06167

$2.30

22

CUSHION, REAR LOWER

09320-14017

$2.35

23

SPACER This part replaces 09180-06072.

09180-06271

$2.35

24

CUSHION, REAR UPPER

09320-10038

$2.61

25

BOLT This part replaces 01500-06353.

01500-0635A

$2.19

26

HOSE This part replaces 09352-50823-00A.

09352-50005-00B

$13.93

27

GUIDE, DRAIN

44481-17E01

Unavailable

28

BOLT

01550-06127

$2.30

29

CUSHION, AIR SEAL

13841-17E00

Unavailable

30

COLOR : M18 =

SPECIAL NOTE

Unavailable
