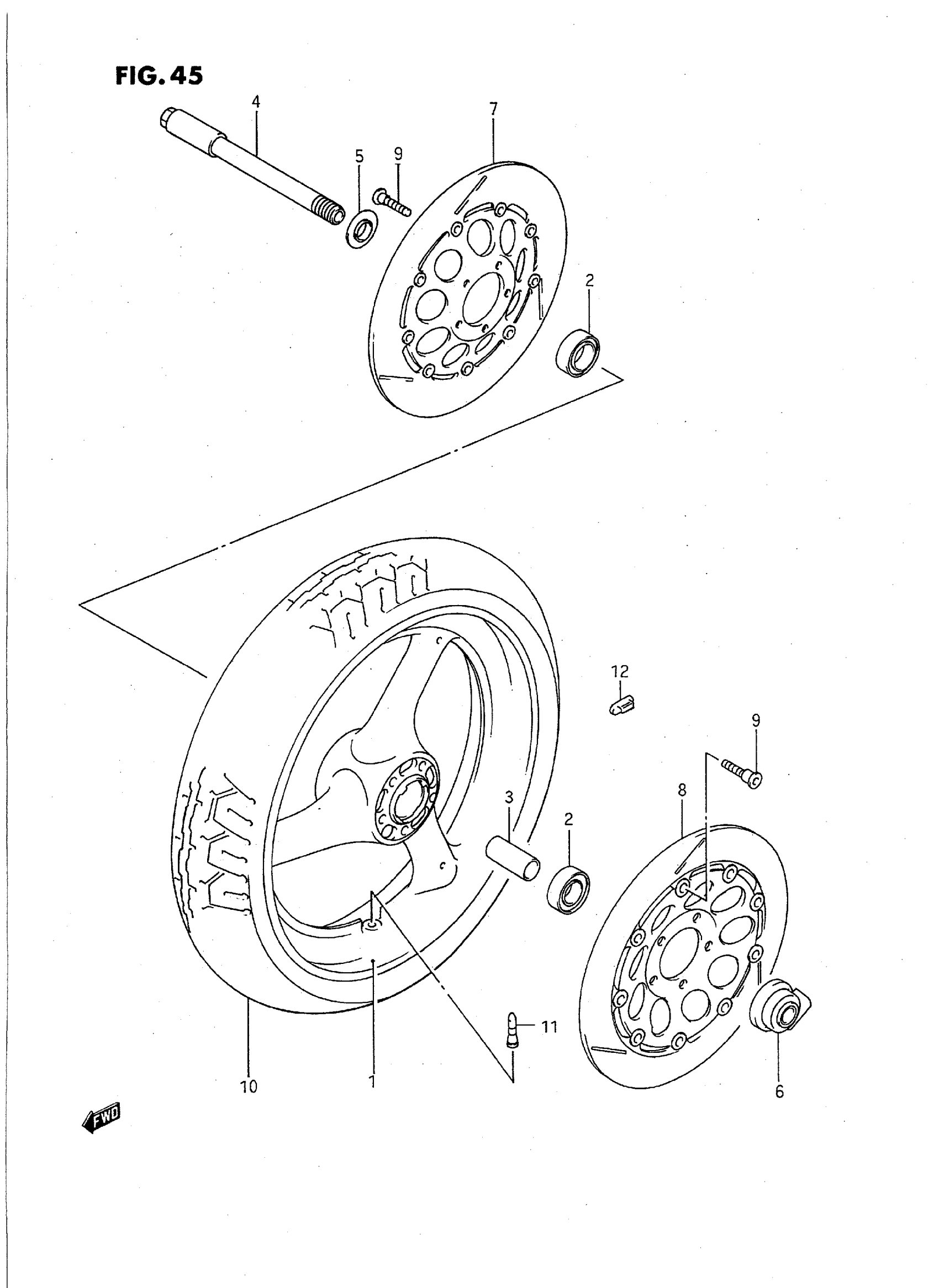

Suzuki GSX-R750WS (1995) FRONT WHEEL (MODEL P) Diagram

#

Description
Price

1

WHEEL, FRONT (17XMT3.50) | FOR M18

54111-17C10-1MJ

Unavailable

1

WHEEL, FRONT (17XMT3.50) | FOR 1TU

54111-17C10-1TU

Unavailable

2

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

3

SPACER

09180-20103

$26.25

4

AXLE, FRONT

54711-17D00

Unavailable

5

SPACER, BEARING RH

54740-17C00

$19.15

6

BOX ASSY, SPEEDOMETER GEAR

54600-17C01

Unavailable

7

DISC, FRONT BRAKE RH This part replaces 59210-40C10.

59210-40C11

Unavailable

8

DISC, FRONT BRAKE LH This part replaces 59220-40C10.

59220-40C11

Unavailable

9

BOLT (8X33) This part replaces 09106-08082.

09106-08148

$4.80

10

TIRE, FRONT (120/70 ZR17 D204FG) (DUNLOP) This part replaces 55110-17E20.

55110-17E30

Unavailable

11

VALVE ASSY, WHEEL RIM

43130-24A00

$8.85

12

BALANCER (10G)

55411-00A00

$1.49

12

BALANCER, WHEEL NO.2 This part replaces 55412-00A00.

55412-17G00

$7.05

12

BALANCER (30G) This part replaces 55413-00A00.

55413-00A01

Unavailable

13

REFER TO FIG.45A (H-5) FOR

SPECIAL NOTE

Unavailable
