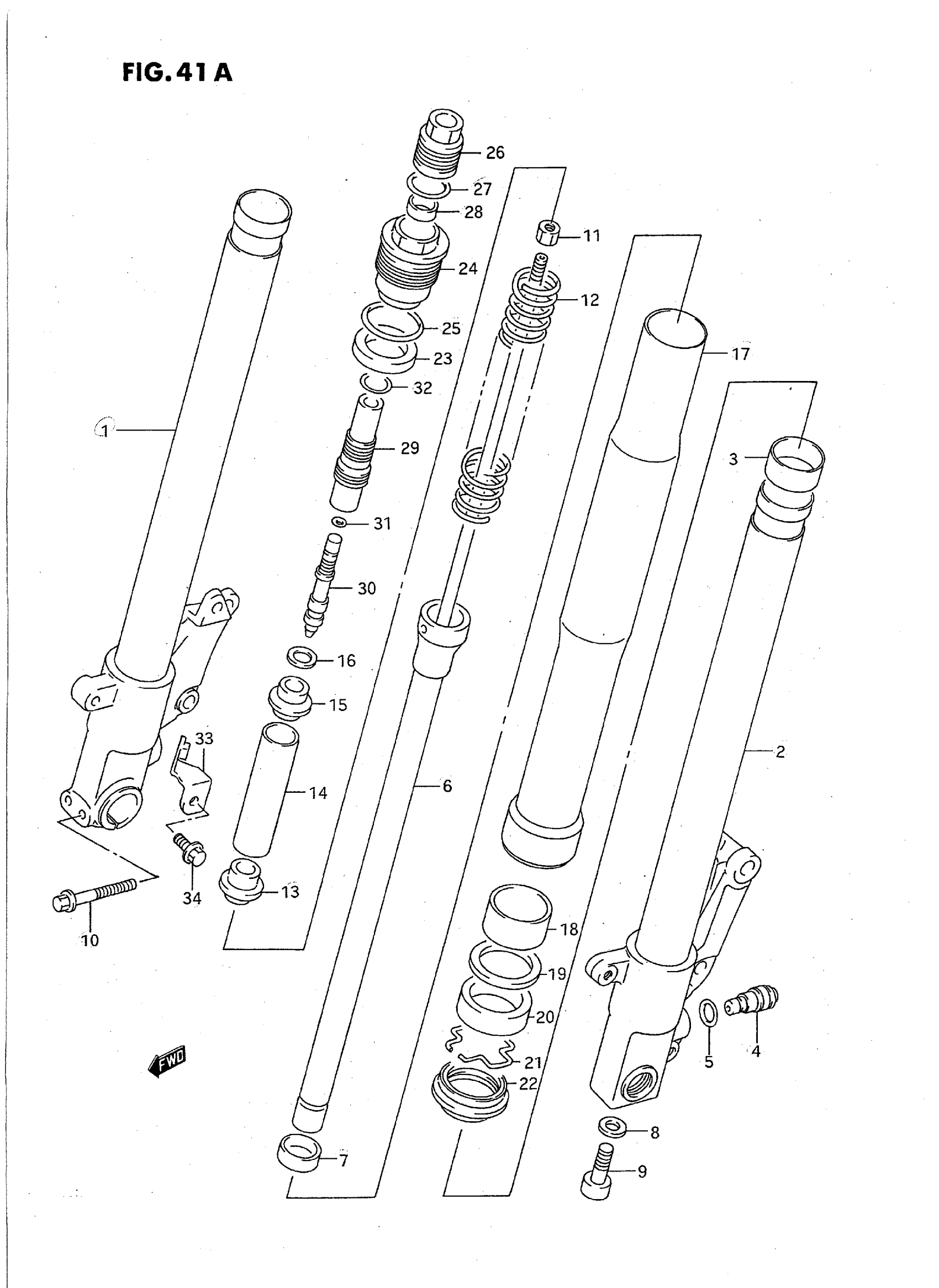

Suzuki GSX-R750WS (1995) FRONT DAMPER (MODEL R/S) Diagram

#

Description
Price

DAMPER ASSY, RH | MODEL R

51103-17E30

Unavailable

DAMPER ASSY, RH | MODEL S

51103-17E70

Unavailable

DAMPER ASSY, LH | MODEL R

51104-17E30

Unavailable

DAMPER ASSY, LH | MODEL S; Includes Item(s) 1 - 32

51104-17E70

Unavailable

1

TUBE, INNER RH

51110-17E20

Unavailable

2

TUBE, INNER LH

51120-17E20

Unavailable

3

.BUSH,SLIDE This part replaces 51121-17C00.

51121-07J00

$21.58

4

PIECE, ADJUSTER LOWER This part replaces 51830-17E00.

51830-07D00

Unavailable

5

O RING (D:2.5,ID:13.8) This part replaces 51834-17C00.

09280-14011

$4.77

6

DAMPER, FRONT

52110-17E30

Unavailable

7

PLATE, CENTERRING

51815-17D00

Unavailable

8

WASHER (10X15X1.5)

09161-10009

$1.84

9

BOLT

51147-17C00

$22.65

10

BOLT, AXLE HOLDLER RH

01550-08457

$4.00

11

NUT, LOD

51827-17C00

Unavailable

12

SPRING

51171-17E20

Unavailable

13

JOINT, SPRING LOWER

51172-17E00

Unavailable

14

SPACER, SPRING UPPER

51176-17E00

Unavailable

15

.GUIDE,SPRING UPR

51175-22D00

$20.33

16

WASHER, JOINT UPPER

51172-34370

$3.37

17

TUBE, OUTER | MODEL R

51131-17E20

Unavailable

17

TUBE, OUTER | MODEL S

51131-17E40

Unavailable

18

BUSH, GUIDE

51152-17E20

Unavailable

19

.SPACER, SEAL

51168-17C00

$6.28

20

SEAL, OIL

51153-14D00

$22.96

21

RING, STOPPER

51556-38B00

$7.22

22

SEAL, DUST

51173-29E00

$26.58

23

RUBBER, SEAT

51193-17D00

$14.20

24

BOLT, FORK

51189-18D00

Unavailable

25

O RING, FORK BOLT

51187-08D00

$6.17

26

ADJUSTER, SPRING

51828-17D00

Unavailable

27

O RING, ADJUSTER OUTER

51199-17D00

$6.27

28

PLATE, SPRING ADJUSTER

51823-22D30

$36.65

29

CASE, ADJUSTER

51829-17E00

Unavailable

30

PIECE, ADJUSTER UPPER

51821-17E20

Unavailable

31

O RING This part replaces 51824-17C00.

09280-03002

$1.49

32

RING, STOPPER

51837-17D00

$6.38

33

PLATE,FRONT FEN This part replaces 51590-17D10.

51590-17D1V

Unavailable

33

PLATE,FRONT FEN This part replaces 51580-17D10.

51580-17D1V

Unavailable

34

BOLT

01550-08127

$2.85
